46300 - Gravely Light Kit for Pro-Master 400 Mower LIGHT KIT Parts Diagram

Light Kit for Pro-Master 400 Mower

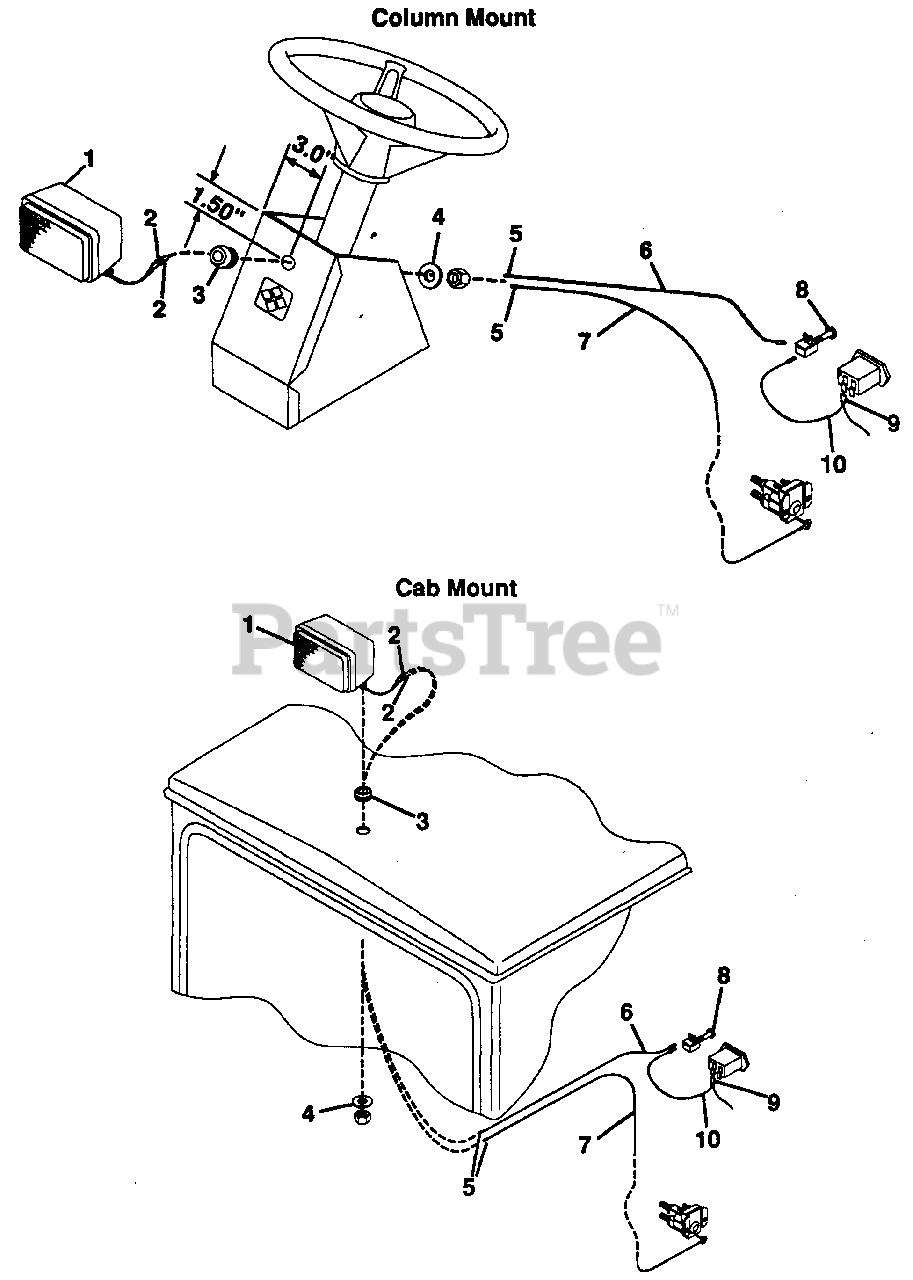

LIGHT KIT Parts Diagram

  • Title

1

Gravely 045513

Headlamp, 3x5 Halogen
(Superseded to 08969000)

$

$

Not available

2

Gravely 046136

Terminal, Male
(Superseded to 08973800)

$

$

Not available

3

Gravely 035518

Grommet
(Superseded to 07504200)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 417098

Washer, Flat .531x1.000x.063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 7

0

5

Gravely 046137

Terminal, Female
(Superseded to 08973900)

$

$

Not available

6

Gravely 046297

Wire, Headlight
(Superseded to 08977400)

$

$

Not available

7

Gravely 046298

Wire, Ground
(Superseded to 08977500)

$

$

Not available

8

Gravely 011337

Switch, Light
(Superseded to 03490700)

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 046132

Terminal, Female 2-Wire
(Superseded to 08973700)

$

$

Not available

12

Gravely 020777

Wire, Headlight
(Superseded to 08902100)

$

$

Not available
