46349 - Gravely Remote Air Cleaner for 2-Wheel Tractor REMOTE AIR CLEANER KIT Parts Diagram

Remote Air Cleaner for 2-Wheel Tractor

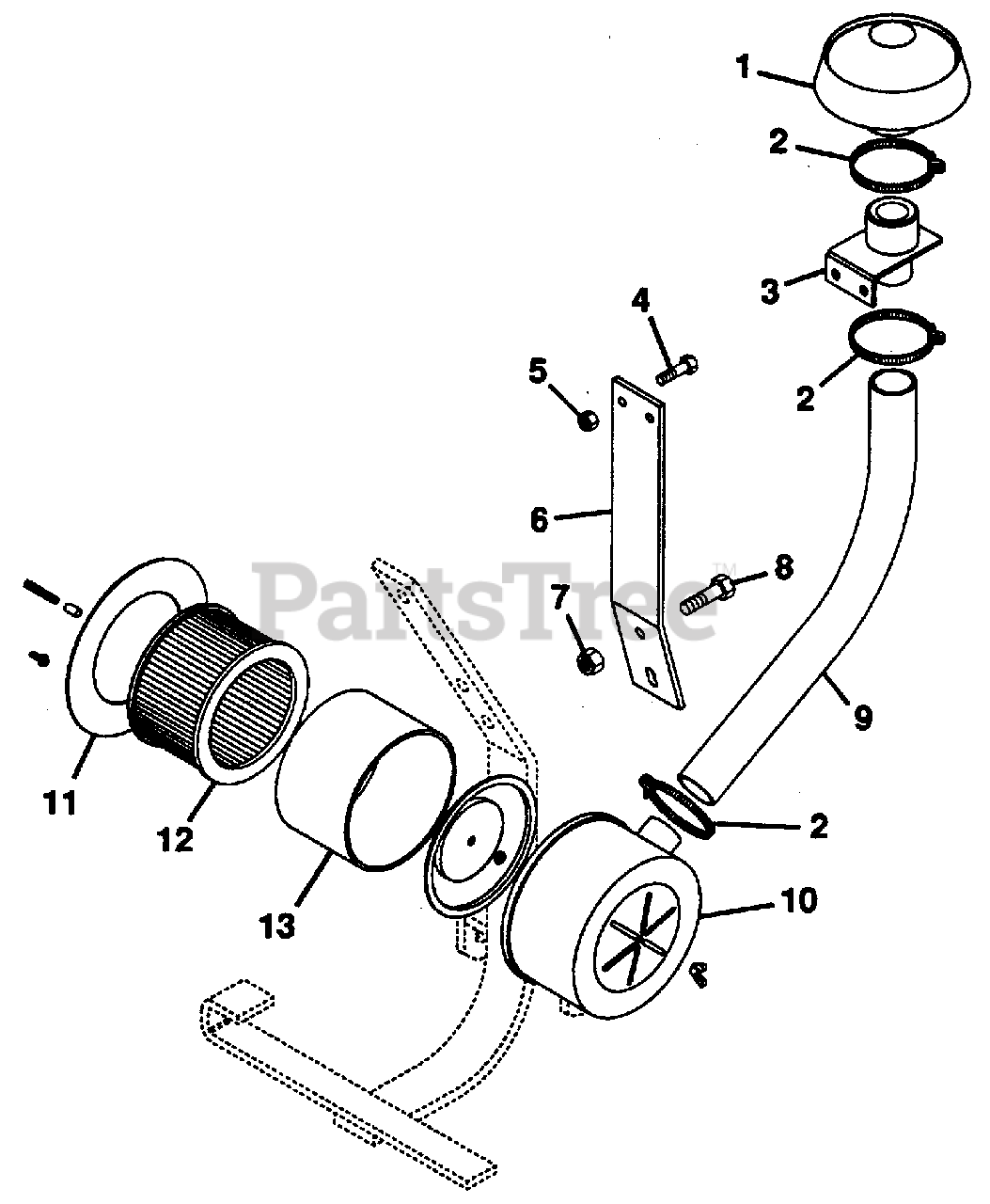

REMOTE AIR CLEANER KIT Parts Diagram

  • Title

1

Gravely 046307

Hood, Air Inlet
(Superseded to 07531600)

$

$

Not available

2

Gravely 021245

Clamp, 2.25 Dia. Hose
(Superseded to 06923600)

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 046085

Weldment
(Superseded to 08562700)

$

$

Not available

4

Gravely 180123

Bolt, Hex 3/8-16x1.12

$

$

Not available

5

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 042051

Bracket
(Superseded to 08548700)

$

$

Not available

7

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 180177

Bolt, Hex 1/2-13x1.50
(Superseded to 05901631)

$4.99

$

In Stock, Qty 7

0

9

Gravely 046348

Hose, Air Cleaner
(Superseded to 08511200)

$

$

Not available

10

Gravely 046345

Cover, Air Cleaner
(Superseded to 08563851)

$

$

Not available

11

Gravely 046347

Gasket
(Superseded to 08603000)

$

$

Not available

12

Gravely 046344

Element, Air Filter
(Superseded to 08563700)

$24.99

$

In Stock, only 2 left!

0

13

Gravely 046346

Element, Pre-Cleaner
(Superseded to 08563900)

$14.99

$

In Stock, only 1 left!

0

NS

Gravely 014728

Clamp, Muffler
(Superseded to 06920900)

$7.49

$

In Stock, only 1 left!

0
