46370x5C - Murray 46" Garden Tractor (1996) Motion Drive Parts Diagram

46" Garden Tractor

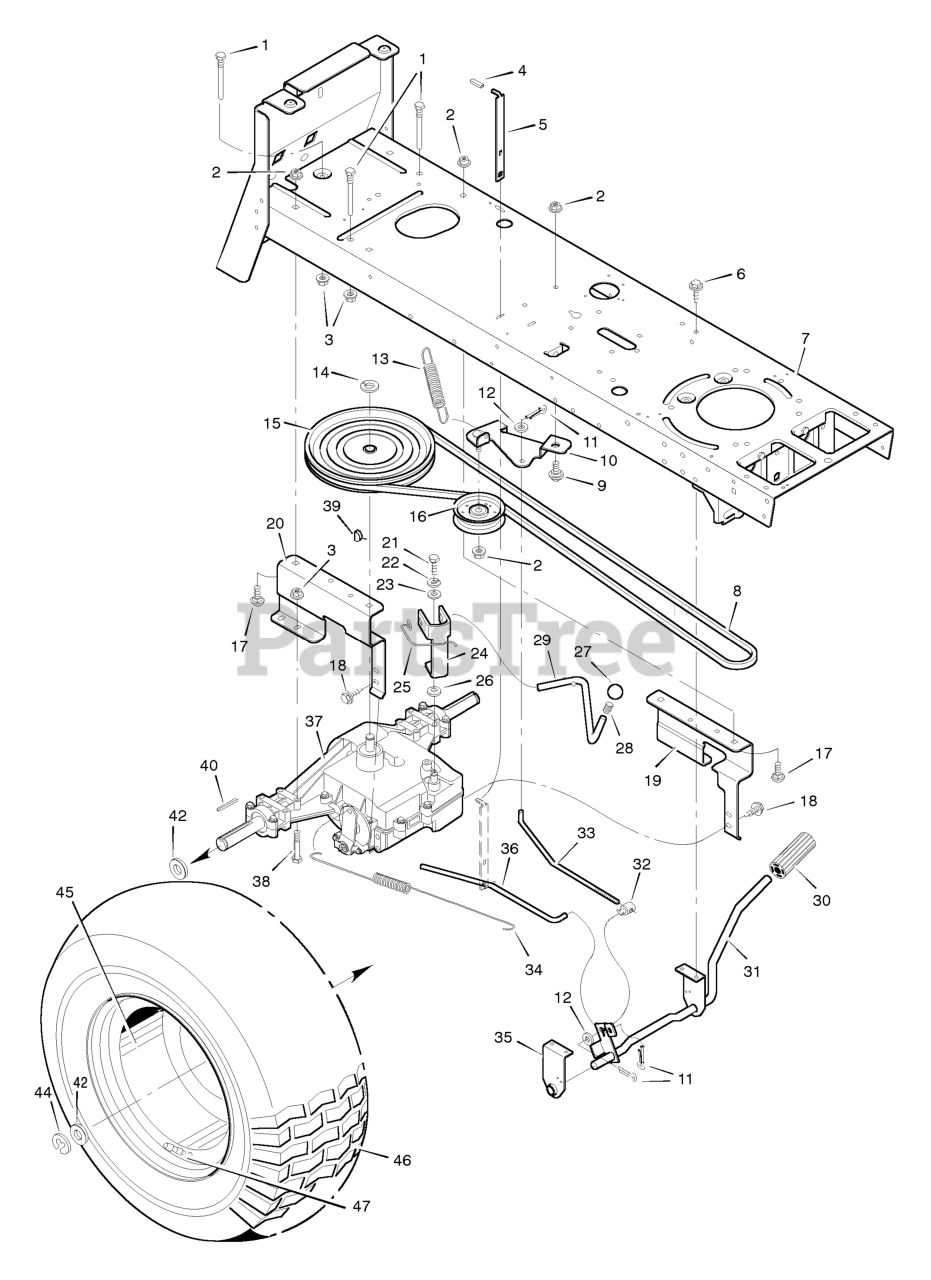

Motion Drive Parts Diagram

  • Title

1

Murray 020619MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

2

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

3

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

4

Murray 092724

Grip

$

$

Currently unavailable

5

Murray 93044E701

Lever, Parking Brake

$

$

Currently unavailable

6

Murray 26X249MA

Screw

$

$

Not available

7

Murray 403338

Frame

$2.49

$

Usually ships in 3-10 days

0

8

Murray 037X68MA

Belt, Motion Drive

$50.99

$

In Stock, only 2 left!

0

9

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

10

Murray 093033 Z

Bracket Assembly, Idler

$

$

Currently unavailable

11

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

Murray 017X52

Washer

$3.49

$

Usually ships in 2-12 days

0

13

Murray 165X87MA

Spring, Drive Extension

$14.99

$

Usually ships in 2-12 days

0

14

Murray 0011X7MA

Ring, Retainer

$3.99

$

In Stock, Qty 7

0

15

Murray 075073MA

Pulley, Motion Drive

$128.99

$

Usually ships in 2-12 days

0

16

Murray 023339MA

Pulley, Backside Idler

$26.99

$

Usually ships in 2-12 days

0

17

Murray 002X78

Bolt, Carriage
(Superseded to 002X78MA)

$3.49

$

Usually ships in 2-12 days

0

18

Murray 26X207MA

Screw

$3.99

$

Usually ships in 2-12 days

0

19

Murray 093299E701

Bracket, Left Transaxle

$

$

Currently unavailable

20

Murray 093298E701

Bracket, Right Transaxle

$

$

Currently unavailable

21

Murray 01X145MA

Bolt, Hex

$4.49

$

Usually ships in 2-12 days

0

22

Murray 018X32MA

Lockwasher

$3.49

$

Usually ships in 2-12 days

0

23

Murray 17X180MA

Washer

$6.99

$

Usually ships in 2-12 days

0

24

Murray 093019 Z

Yoke, Shift Lever

$

$

Currently unavailable

25

Murray 166X35

Spring

$2.99

$

Usually ships in 2-12 days

0

26

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

27

Murray 091995

Knob, Shift Lever

$12.99

$

Usually ships in 2-12 days

0

28

Murray 092008

Ring, Tolerance

$3.99

$

Usually ships in 2-12 days

0

29

Murray 093020 Z

Lever, Shift

$

$

Currently unavailable

30

Murray 021544MA

Pedal, Clutch/Brake
(Superseded to 1727261SM)

$9.99

$

Usually ships in 2-12 days

0

31

Murray 93082E701

Lever Assembly, Pedal

$37.99

$

Usually ships in 2-12 days

0

32

Murray 021920ZMA

Nut, Adjustable

$17.99

$

Usually ships in 2-12 days

0

33

Murray 093029 Z

Rod, Clutch

$

$

Currently unavailable

34

Murray 165X82MA

Spring, Brake Extension

$48.99

$

Usually ships in 2-12 days

0

35

Murray 091713E701

Bracket, Pedal Support

$54.99

$

Usually ships in 2-12 days

0

36

Murray 93054E701

Rod, Brake Latch

$

$

Currently unavailable

37

Transaxle, Peerless **

Note: (820-028)

$

$

Not available

38

Murray 01X132

Bolt, Hex

$

$

Currently unavailable

39

Murray 020697MA

Key, Woodruff No. 9

$3.99

$

In Stock, only 1 left!

0

40

Murray 024039MA

Key, Square

$4.49

$

Usually ships in 2-12 days

0

42

Murray 17X118 Z

WASHER, 1-1.3 16G FLT
(Superseded to 17X118ZMA)

$3.49

$

In Stock, only 2 left!

0

44

Murray 011X23MA

E-Ring

$4.49

$

In Stock, only 4 left!

0

45

Murray 093263-601

Wheel & Tire Assembly

$

$

Currently unavailable

46

Murray 407920

Tire Only *

Note: (Included with Ref. No. 45)

$376.99

$

Usually ships in 2-12 days

0

--

Murray 407051

Tube

$47.99

$

Usually ships in 2-12 days

0

47

Murray 024373MA

Valve Stem

Note: (Included with Ref. No. 45)

$

$

Not available
