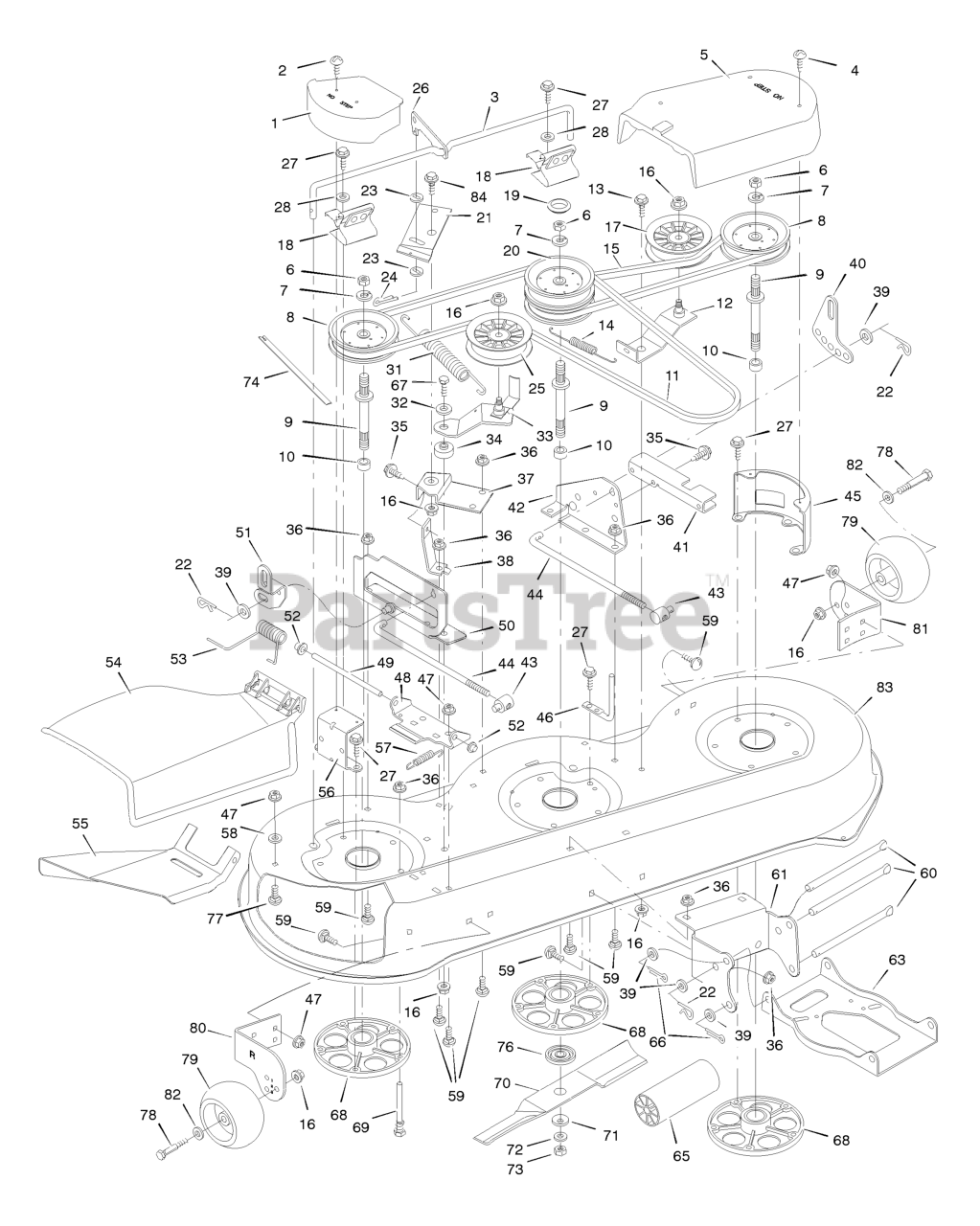

46400A - Murray 46" Garden Tractor (1996) Mower Housing Parts Diagram

46" Garden Tractor

Mower Housing Parts Diagram

  • Title

1

Murray 92145E701

Cover, Pulley

$

$

Currently unavailable

2

Murray 26X266

Screw

$

$

Currently unavailable

3

Murray 092129 Z

Rod, Brake

$

$

Currently unavailable

4

Murray 26X258MA

Screw

$4.49

$

Usually ships in 2-12 days

0

5

Murray 92154E701

Cover, Left Pulley

$

$

Currently unavailable

6

Murray 15X100MA

Nut, Hex

$3.99

$

In Stock, Qty 7

0

7

Murray 018X33MA

Lockwasher

$4.49

$

In Stock, only 1 left!

0

8

Murray 092127MA

Pulley

$49.99

$

In Stock, only 1 left!

0

9

Murray 091921

Jackshaft

$20.99

$

In Stock, only 4 left!

0

10

Murray 091925MA

Spacer, Bearing

$12.99

$

In Stock, only 2 left!

0

11

Murray 037X69MA

Belt, Primary Mower Drive

$43.99

$

In Stock, only 1 left!

0

12

Murray 92112E701

Bracket, Idler

$

$

Currently unavailable

13

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

14

Murray 165X79MA

Spring, Extension

$6.49

$

In Stock, Qty 10

0

15

Murray 037X66MA

Belt, Secondary Mower Drive

$24.99

$

In Stock, Qty 9

0

16

Murray 015X84MA

Locknut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Murray 091590

Pulley, Idler

$28.99

$

In Stock, only 1 left!

0

18

Murray 092148MA

Spring Assembly, Brake

$91.99

$

In Stock, only 1 left!

0

19

Murray 092169MA

Plug

$2.99

$

Usually ships in 2-12 days

0

20

Murray 092128MA

Pulley, Stack

$121.99

$

In Stock, only 1 left!

0

21

Murray 093052E701

Bracket, Pivot

$

$

Currently unavailable

22

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

23

Murray 17X171 Z

Washer

$

$

Currently unavailable

24

Murray 030X33

Pin, Cotter

$

$

Currently unavailable

25

Murray 091801

Pulley, Idler
(Superseded to 091801MA)

$24.99

$

In Stock, Qty 7

0

26

Murray 092130 Z

Link, Brake

$

$

Currently unavailable

27

Murray 0025X7MA

Screw
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

28

Murray 010851 Z

Washer

$

$

Currently unavailable

29

Murray 017X91MA

Washer

$5.49

$

In Stock, only 4 left!

0

31

Murray 165X80MA

Spring, Extension

$

$

Not available

32

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

33

Murray 092220E701MA

Bracket, Idler

$84.99

$

Usually ships in 2-12 days

0

34

Murray 092180MA

Bushing

$20.99

$

Usually ships in 2-12 days

0

35

Murray 26X249MA

Screw

$

$

Not available

36

Murray 15X792

Nut, Hex

$

$

Currently unavailable

37

Murray 092115E701

Support, Pivot

$

$

Currently unavailable

38

Murray 92158E701

Strut, Pivot

$12.99

$

Usually ships in 2-12 days

0

39

Murray 17X103MA

Washer

$4.99

$

In Stock, Qty 7

0

40

Murray 93323E701

Plate, Adjuster

$

$

Currently unavailable

41

Murray 092138E701

Channel, Left Cover

$

$

Currently unavailable

42

Murray 92109E701

Bracket Assembly, Lifter

$93.99

$

Usually ships in 2-12 days

0

43

Murray 092132MA

NUT, Adjusting, 1/2-13
(Superseded to 092132ZMA)

$14.99

$

Usually ships in 2-12 days

0

44

Murray 092134 Z

Rod, Adjuster

$

$

Currently unavailable

45

Murray 092139E701MA

Bracket, Left Cover

$28.99

$

Usually ships in 2-12 days

0

46

Murray 092116 Z

Guide, Belt

$

$

Currently unavailable

47

Murray 015X88MA

Locknut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

48

Murray 092104E701MA

Bracket, Hinge

$9.99

$

Usually ships in 2-12 days

0

49

Murray 092159ZMA

Rod, Deflector

$

$

Not available

50

Murray 93088E701

Bracket Assembly, Lifter

$103.99

$

Usually ships in 2-12 days

0

51

Murray 093340E700

Link, Suspension

$

$

Currently unavailable

52

Murray 028X23MA

Push- On Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 19

0

53

Murray 166X34MA

Spring, Torsion

$9.49

$

Usually ships in 2-12 days

0

54

Murray 092100MA

Deflector

$93.99

$

Usually ships in 2-12 days

0

55

Murray 092103E701MA

Deflector, Inside

$83.99

$

Usually ships in 2-12 days

0

56

Murray 92140E701

Bracket, Cover

$

$

Not available

57

Murray 165X86MA

Spring, Extension

$24.99

$

Usually ships in 2-12 days

0

58

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

59

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

60

Murray 091739 Z

Rod, Hanger

$

$

Currently unavailable

61

Murray 93087E701

Bracket, Front Hanger

$

$

Currently unavailable

62

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

63

Murray 092119SEMA

Hanger, Front

$128.99

$

Usually ships in 2-12 days

0

65

Murray 092137MA

Roller

$32.99

$

Usually ships in 2-12 days

0

66

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 12

0

67

Murray 01X111 Z

Bolt, Hex

$

$

Currently unavailable

68

Murray 092574

Housing, Mandrel

$

$

Currently unavailable

69

Murray 91754 Z

Guide, Belt

$

$

Currently unavailable

70

Murray 092117E701MA

Blade (3 required)

$20.99

$

In Stock, only 3 left!

0

71

Murray 17X166MA

Washer, Belleville

$13.99

$

In Stock, Qty 7

0

72

Murray 17X165MA

Washer

$16.99

$

In Stock, Qty 5

0

73

Murray 15X100MA

Nut, Hex

$3.99

$

In Stock, Qty 7

0

74

Murray 092163MA

Indicator, Plastic

$6.99

$

Usually ships in 2-12 days

0

76

Murray 092466MA

Adapter, Blade

$9.99

$

In Stock, Qty 10

0

77

Murray 002X73MA

Bolt, Carriage
(Superseded to 703798)

$4.49

$

In Stock, Qty 20+

0

78

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 2 left!

0

79

Murray 092683MA

Wheel, Gauge

$15.99

$

In Stock, Qty 10

0

80

Murray 92259E701

Bracket, Right Gauge Wheel

$

$

Currently unavailable

81

Murray 92258E701

Bracket, Left Gauge Wheel

$

$

Currently unavailable

82

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

83

Murray 92257E701

Housing, Mower

$

$

Currently unavailable

84

Murray 009X42MA

Bolt, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 2 left!

0

--

Murray 403337MA

Mower Housing, Complete

Note: (Includes Ref. No's. 1-84)

$796.99

$

Usually ships in 2-12 days

0
