46400x65A - Murray 46" Garden Tractor (1996) Motion Drive Parts Diagram

46" Garden Tractor

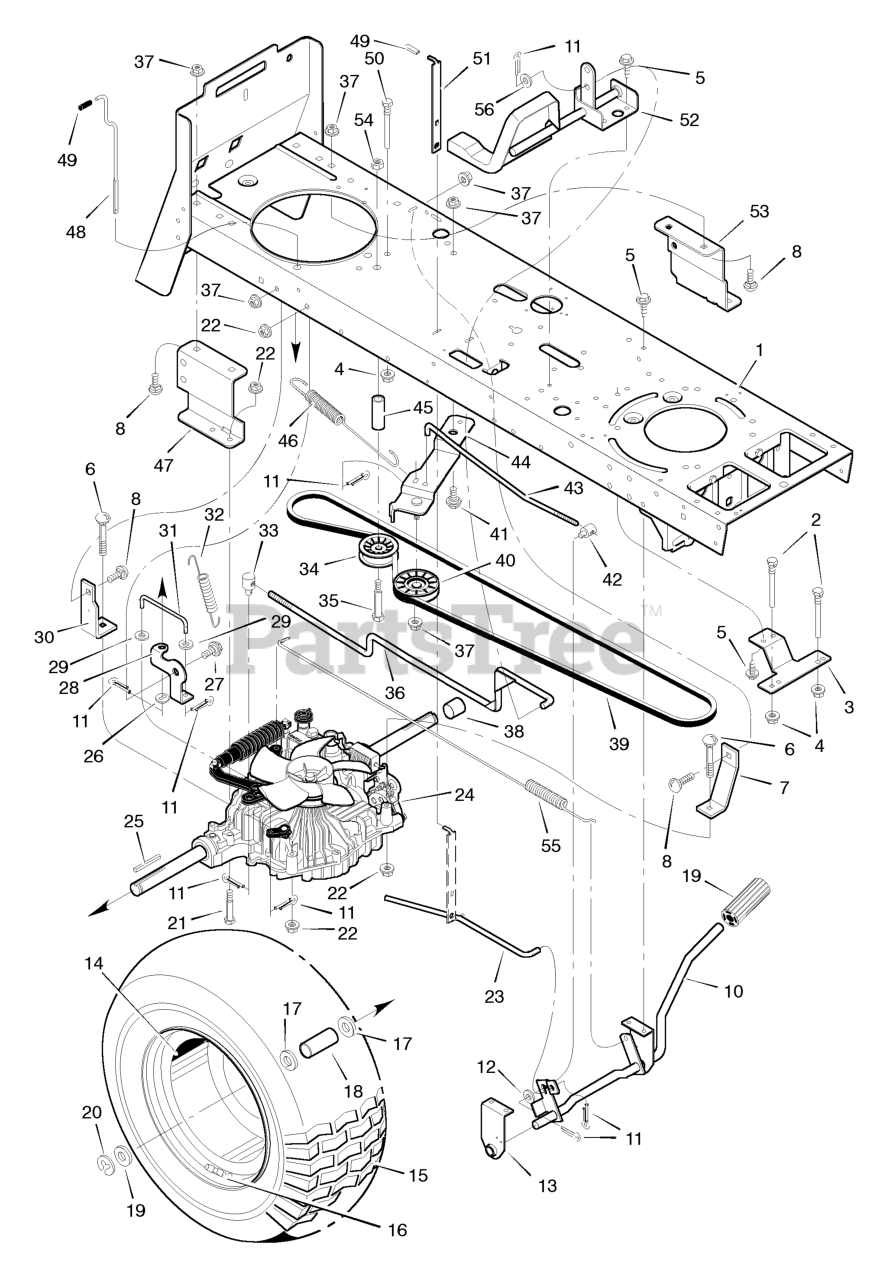

Motion Drive Parts Diagram

  • Title

1

Murray 403353

Frame Assembly

$

$

Currently unavailable

2

Murray 093349MA

SCREW, Guide

$4.49

$

Usually ships in 2-12 days

0

3

Murray 093342E701

Bracket, Belt Guide

$

$

Currently unavailable

4

Murray 015X79MA

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Murray 26X249MA

CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

6

Murray 002X58

Bolt, Carriage

$

$

Currently unavailable

7

Murray 93321E701

Bracket, Torque

$

$

Currently unavailable

8

Murray 002X78

Bolt, Carriage
(Superseded to 002X78MA)

$3.49

$

Usually ships in 2-12 days

0

9

Murray 021544MA

PEDAL, Clutch and Brake
(Superseded to 1727261SM)

$9.99

$

Usually ships in 2-12 days

0

10

Murray 93325E701

Lever Assembly, Pedal

$

$

Currently unavailable

11

Murray 030X20MA

COTTERPIN, 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

Murray 017X52

Washer

$3.49

$

Usually ships in 2-12 days

0

13

Murray 091713E701

Bracket, Pedal Support

$54.99

$

Usually ships in 2-12 days

0

14

Murray 093263-601

Assembly, Wheel and Tire

$

$

Currently unavailable

15

Murray 407920

Tire Only *

Note: (Included with Ref. No. 14)

$376.99

$

Usually ships in 2-12 days

0

--

Murray 407047MA

Tube

Note: (Included with Ref. No. 14)

$31.99

$

Usually ships in 2-12 days

0

16

Murray 024373MA

VALVE STEM & CAP

$

$

Not available

17

Murray 17X190

Washer

$

$

Currently unavailable

18

Murray 252X47

Spacer

$

$

Currently unavailable

19

Murray 17X118 Z

WASHER, 1-1.3 16G FLT
(Superseded to 17X118ZMA)

$3.49

$

In Stock, only 2 left!

0

20

Murray 011X23MA

E-RING, Retainer

$4.49

$

In Stock, only 4 left!

0

21

Murray 01X155MA

BOLT, Hex, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

22

Murray 015X88MA

NUT, Hex Flange, Center Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

23

Murray 93339

Rod, Latch

$

$

Currently unavailable

24

Murray 404079

Transaxle

$

$

Currently unavailable

25

Murray 024039MA

Key, Square

$4.49

$

Usually ships in 2-12 days

0

26

Murray 17X171 Z

Washer

$

$

Currently unavailable

27

Murray 009X42MA

BOLT, Shoulder, 3/8-16 x 3/5
(Superseded to 704206)

$7.99

$

In Stock, only 2 left!

0

28

Murray 93334

Bracket, Dump Valve

$

$

Currently unavailable

29

Murray 017X17

WASHER, FLAT

$

$

Currently unavailable

30

Murray 93322E701

Bracket, Torque

$

$

Currently unavailable

31

Murray 093328 Z

Rod, Dump Valve

$

$

Currently unavailable

32

Murray 165X84

Spring, Extension

$1.99

$

Usually ships in 2-12 days

0

33

Murray 092132MA

NUT, Adjusting, 1/2-13
(Superseded to 092132ZMA)

$14.99

$

Usually ships in 2-12 days

0

34

Murray 091179MA

Pulley, Backside Idler

$17.99

$

In Stock, only 1 left!

0

35

Murray 01X154

Shoulder Bolt

$

$

Currently unavailable

36

Murray 933332

Rod, Control

$

$

Currently unavailable

37

Murray 015X84MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Murray 252X48

Spacer

$

$

Currently unavailable

39

Murray 037X82MA

Belt

$52.99

$

Usually ships in 2-12 days

0

40

Murray 091178

PULLEY, V-IDLER 3-

$

$

Not available

41

Murray 009X39MA

BOLT, Shoulder, 3/8-16 x 1/2

$6.49

$

In Stock, Qty 9

0

42

Murray 021920ZMA

NUT, Adjusting

$17.99

$

Usually ships in 2-12 days

0

43

Murray 093326 Z

Rod, Clutch

$

$

Currently unavailable

44

Murray 093324 Z

Bracket, Idler

$

$

Currently unavailable

45

Murray 093347

Spacer

$

$

Currently unavailable

46

Murray 165X109MA

Spring, Extension

$6.49

$

Usually ships in 2-12 days

0

47

Murray 93330

Screw-Slotted

$4.99

$

Usually ships in 2-12 days

0

48

Murray 926752

Rod, Dump Valve

$

$

Currently unavailable

49

Murray 092724

Grip

$

$

Currently unavailable

50

Murray 091754MA

SCREW, Guide, 5/16-18

$16.99

$

Usually ships in 2-12 days

0

51

Murray 093338E701

Lever, Parking Brake

$

$

Currently unavailable

52

Murray 93346

Pedal Assembly

$

$

Currently unavailable

53

Murray 93329

Screw-Sem
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

54

Murray 015X41MA

NUT, Lock, 1/2-13

$5.49

$

Usually ships in 2-12 days

0

55

Murray 165X110

Spring

$6.49

$

Usually ships in 2-12 days

0

56

Murray 17X572

Washer

$

$

Currently unavailable
