46430x89A - Yard King 46" Garden Tractor (1998) Electrical System Parts Diagram

46" Garden Tractor

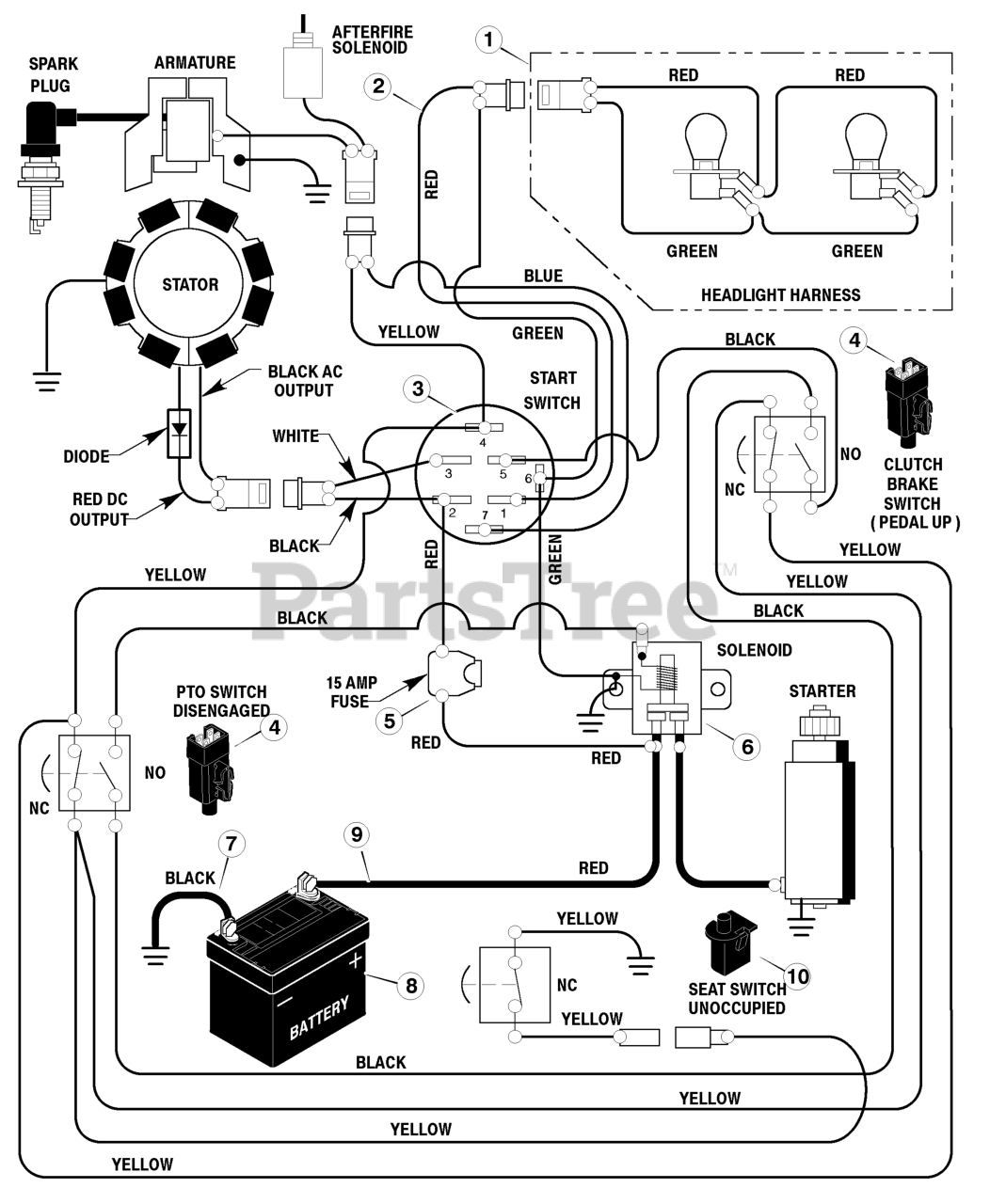

Electrical System Parts Diagram

  • Title

1

Murray 250X40MA

Harness, Light Wire

$25.99

$

Usually ships in 2-12 days

0

--

Murray 092372

Socket, Light

$7.99

$

In Stock, Qty 11

0

--

Murray 090084MA

Bulb, Light
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

2

Murray 250X63

Harness, Chassis Wire

$

$

Currently unavailable

3

Murray 092556MA

Switch, Ignition

$28.99

$

Usually ships in 2-12 days

0

--

Murray 020729

Key, Ignition

$5.49

$

In Stock, only 1 left!

0

--

Murray 091489MA

Nut, Hex
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 091488

Cap, Ignition
(Superseded to 091488MA)

$4.99

$

In Stock, only 4 left!

0

4

Murray 091299MA

Switch, Limit
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 10

0

5

Murray 054212

Fuse

$6.99

$

Usually ships in 2-12 days

0

--

Murray 407078MA

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

6

Murray 024285

Solenoid

$

$

Currently unavailable

--

Murray 26X233MA

Screw, Mounting

$3.99

$

Usually ships in 2-12 days

0

--

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 024X30

Cable, Battery Ground

$7.99

$

Usually ships in 2-12 days

0

--

Murray 26X213MA

Screw, Ground Cable

$4.49

$

In Stock, only 1 left!

0

8

Murray 021075

Battery

$

$

Not available

--

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

9

Murray 024X29MA

Cable

$14.99

$

Usually ships in 2-12 days

0

10

Murray 091031

Switch, Seat Sensor

$

$

Currently unavailable
