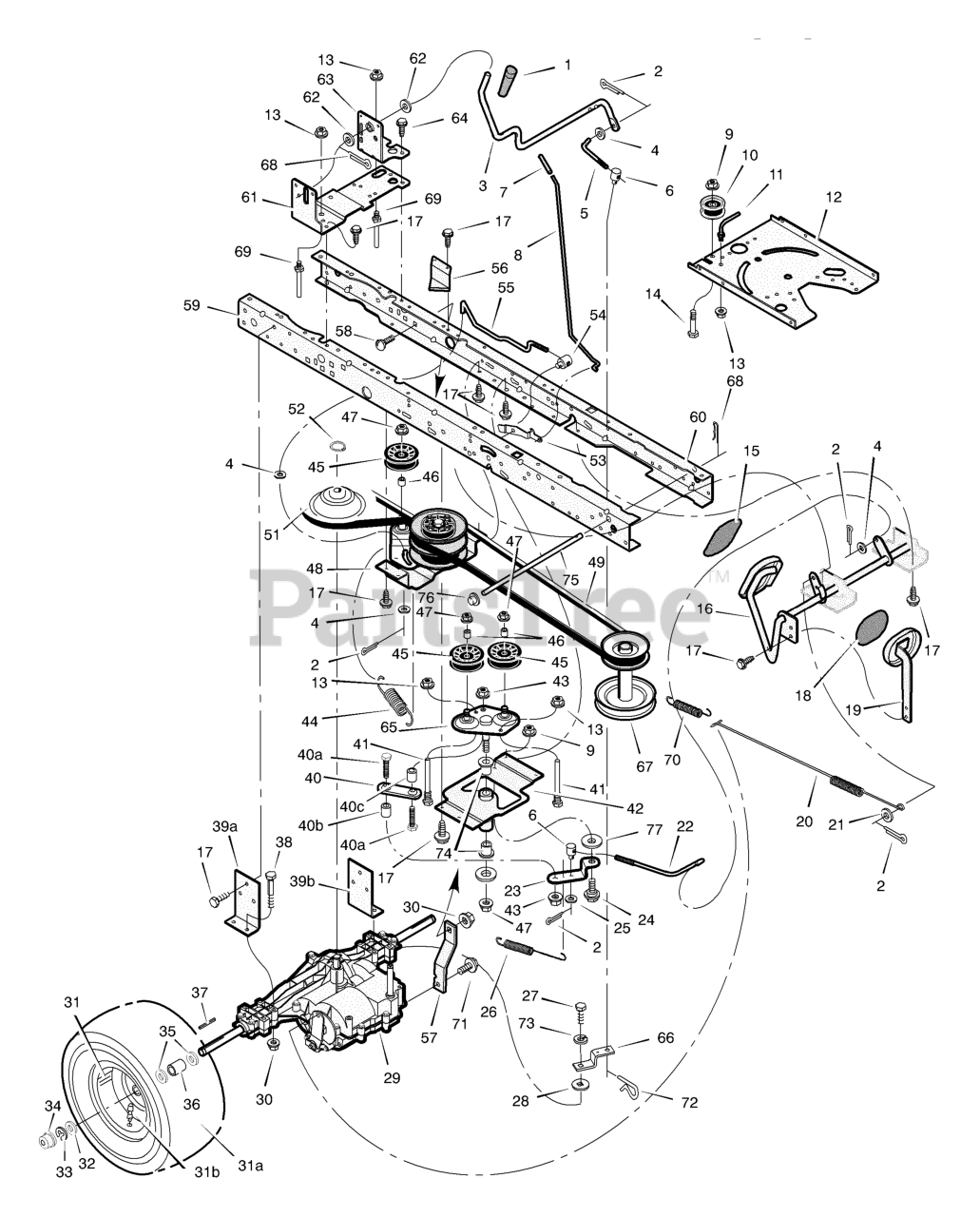

465306x8A - Murray 46" Garden Tractor (2004) Motion Drive Parts Diagram

46" Garden Tractor

Motion Drive Parts Diagram

  • Title
1

Murray Part# 094497

Grip, Shift
(Superseded to 094497MA)
Usually ships in 6 to 12 days

$

$4.91

0

2

Murray Part# 030X20MA

Pin, Cotter
(Superseded to 703312)
Usually ships in 1 day

$

$3.23

0

3

Murray Part# 094043 Z

Lever, Shift
Usually ships same day

Currently unavailable

$

$

Usually ships same day

Not available

$

$

5

Part# 094044 Z

Link, Shifter
Usually ships same day

Not available

$

$

6

Murray Part# 021920ZMA

Nut, Adjuster
Usually ships in 3 to 5 days

$

$11.17

0

Usually ships in 6 to 12 days

$

$2.74

0

8

Murray Part# 1001245 Z

Rod, Parking Brake
Usually ships same day

Currently unavailable

$

$

Usually ships in 1 day

$

$5.36

0

10

Murray Part# 1001187MA

Pulley, Idler
Usually ships in 1 day

$

$22.03

0

11

Murray Part# 1001122

Guide, Belt
Usually ships same day

Not available

$

$

12

Murray Part# 1001121E701MA

Plate, Steering
(Superseded to 7300867ZMA)
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$4.35

0

14
Usually ships in 6 to 12 days

$

$3.34

0

15

Murray Part# 1001138

Pad, Motion Drive
Usually ships same day

Not available

$

$

16

Murray Part# 1001148E700

Assembly, Speed Control
Usually ships same day

Not available

$

$

17

Murray Part# 26X249MA

Screw, Self Tapping
Usually ships same day

Not available

$

$

18

Murray Part# 1001139

Pad, Brake Pedal
Usually ships same day

Not available

$

$

19

Murray Part# 1001147E700

Assembly, Brake Pedal
Usually ships same day

Currently unavailable

$

$

20

Murray Part# 165X115MA

Spring, Extension
Usually ships in 1 day

$

$15.82

0

Usually ships in 1 day

$

$3.34

0

22

Murray Part# 1001120

Rod, Speed Control
Usually ships same day

Not available

$

$

23
Usually ships same day

Currently unavailable

$

$

24

Murray Part# 009X39MA

Bolt, Shoulder
Usually ships in 1 day

$

$4.91

0

Usually ships in 1 day

$

$3.02

0

26

Murray Part# 165X152MA

Spring, Extension
Usually ships in 3 to 5 days

$

$3.91

0

27
Usually ships in 1 day

$

$3.30

0

Usually ships in 3 to 5 days

$

$3.47

0

29

Part# -----

Transaxle
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$2.90

0

31

Murray Part# 092300650

Assembly, Wheel and Tire
Usually ships same day

Not available

$

$

31a
Usually ships same day

Currently unavailable

$

$

31b

Murray Part# 024373MA

Stem, Valve
Usually ships in 6 to 12 days

$

$7.48

0

Usually ships in 1 day

$

$3.90

0

Usually ships in 1 day

$

$4.35

0

Usually ships in 1 day

$

$4.35

0

Usually ships in 1 day

$

$3.68

0

36

Murray Part# 690554 Z

Spacer
(Superseded to 690554ZMA)
Usually ships in 3 to 5 days

$

$15.53

0

37

Murray Part# 021553MA

Key, Square
Usually ships in 1 day

$

$3.68

0

38
Usually ships in 1 day

$

$3.68

0

39a

Murray Part# 094184E701MA

Bracket, Right Transaxle
Usually ships in 3 to 5 days

$

$46.62

0

39b

Murray Part# 094185E701MA

Bracket, Left Transaxle
Usually ships in 3 to 5 days

$

$46.62

0

40

Murray Part# 1001576

Link, Variator
Usually ships in 3 to 5 days

$

$19.85

0

40a
Usually ships in 3 to 5 days

$

$3.19

0

40b

Murray Part# 1001520

Spacer, 1/2"
Usually ships in 3 to 5 days

$

$4.98

0

40c

Murray Part# 1001519

Spacer, 3/4"
Usually ships in 3 to 5 days

$

$5.37

0

41

Murray Part# 093349MA

Guide, Belt
Usually ships in 1 day

$

$3.19

0

42

Murray Part# 1001277E701

Bracket, Front Frame
Usually ships in 3 to 5 days

$

$40.19

0

43
Usually ships in 1 day

$

$3.22

0

44

Murray Part# 165X153MA

Spring, Extension
Usually ships in 3 to 5 days

$

$7.44

0

Usually ships in 1 day

$

$14.37

0

Usually ships in 1 day

$

$4.19

0

Usually ships in 1 day

$

$5.36

0

48

Murray Part# 1001133MA

Assembly, Variator and Idler
Usually ships in 3 to 5 days

$

$423.44

0

49

Murray Part# 037X112

Belt, Primary
Usually ships in 1 day

$

$29.18

0

50

Murray Part# 037X113

Belt, Secondary
Usually ships in 1 day

$

$20.96

0

51

Murray Part# 1001106MA

Pulley, Transaxle
Usually ships in 3 to 5 days

$

$81.11

0

52
Usually ships in 1 day

$

$2.74

0

53

Murray Part# 094045 Z

Latch, Parking Brake
Usually ships same day

Currently unavailable

$

$

54

Murray Part# 094815

Nut, Adjusting
Usually ships in 3 to 5 days

$

$19.22

0

55
Usually ships same day

Currently unavailable

$

$

56

Murray Part# 1001135 Z

Bracket, Brake
Usually ships same day

Currently unavailable

$

$

57

Murray Part# 094433E701MA

BRACKET, Torque Strap, LH
(Superseded to 7300845BMYP)
Usually ships in 3 to 5 days

$

$11.68

0

58

Murray Part# 002X53MA

Screw
(Superseded to 703159)
Usually ships in 1 day

$

$3.01

0

59

Murray Part# 1001268E701

Rail, Right Frame
Usually ships same day

Not available

$

$

60

Murray Part# 1001269E701MA

Rail, Left Frame
Usually ships in 3 to 5 days

$

$85.53

0

61

Murray Part# 1001302E701

Bracket, Right Shift
Usually ships in 3 to 5 days

$

$29.63

0

62

Murray Part# 17X102MA

Washer
(Superseded to 703128)
Usually ships in 1 day

$

$2.90

0

63

Murray Part# 1001303 Z

Bracket, Shift Pivot
Usually ships same day

Currently unavailable

$

$

Usually ships in 1 day

$

$4.13

0

65

Murray Part# 1001132 Z

Assembly, Idler
Usually ships same day

Currently unavailable

$

$

66
Usually ships in 3 to 5 days

$

$11.18

0

67

Murray Part# 1001136MA

Pulley, Stack
Usually ships same day

Not available

$

$

68

Murray Part# 0031X4MA

Pin, Hair
(Superseded to 703300)
Usually ships in 1 day

$

$3.01

0

69

Murray Part# 1001308

Guide, Belt
Usually ships same day

Not available

$

$

70

Murray Part# 165X75MA

Spring, Return
Usually ships in 6 to 12 days

$

$6.36

0

Usually ships in 1 day

$

$4.92

0

72
Usually ships in 1 day

$

$3.01

0

Usually ships in 3 to 5 days

$

$3.34

0

Usually ships in 1 day

$

$3.47

0

75

Murray Part# 1001267 Z

Rod, Belt Guide
Usually ships same day

Currently unavailable

$

$

76

Murray Part# 028X23MA

Nut, Push-On
Usually ships in 1 day

$

$3.34

0

Usually ships same day

Currently unavailable

$

$
