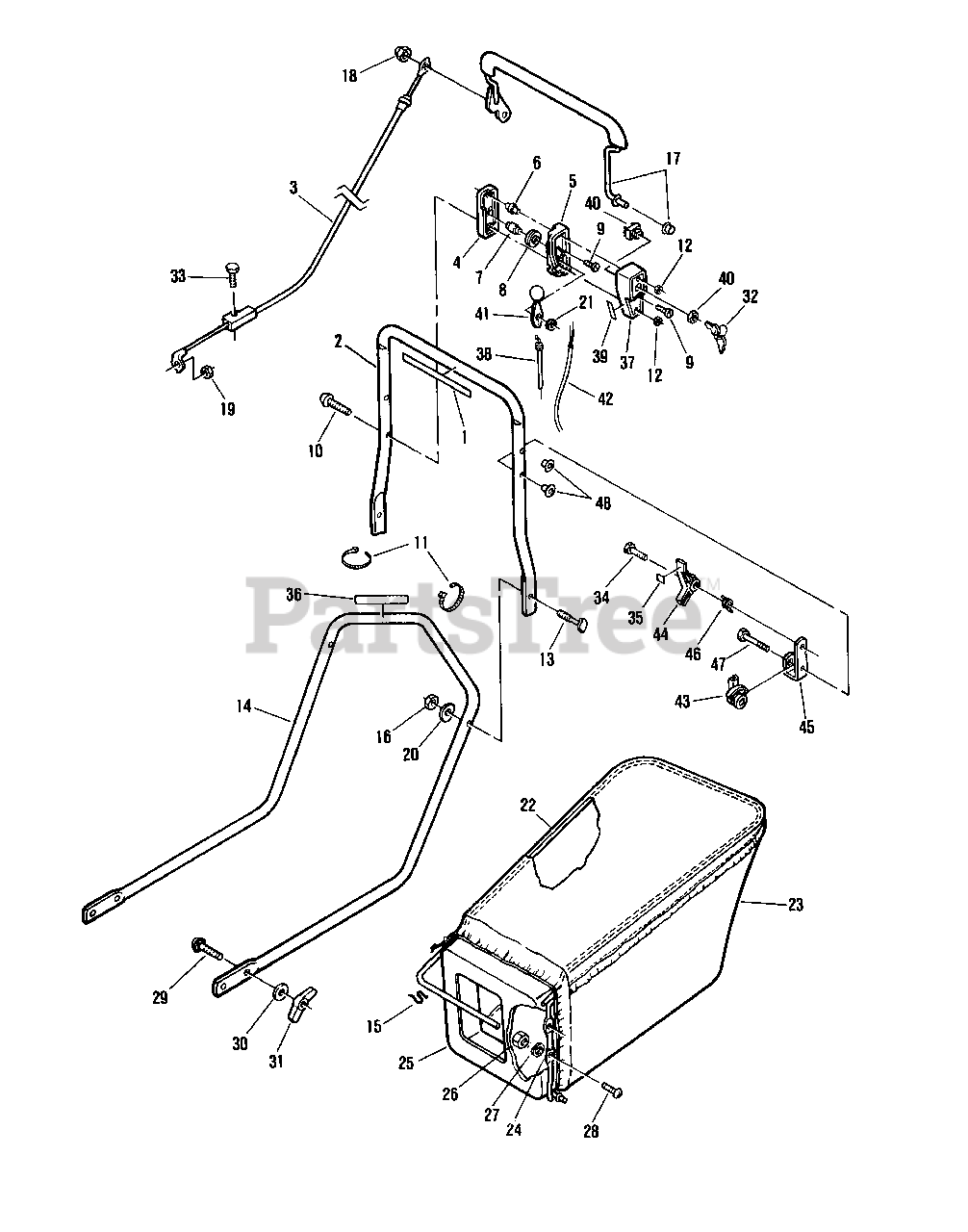

4656 A - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) HANDLE GROUP MODELS: 4656A Parts Diagram

Walk-Behind Mower

HANDLE GROUP MODELS: 4656A Parts Diagram

  • Title

1

Lawn-Boy 612654

Decal-Engine/Blade Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 612653

Handle-Upper

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 683671

Control Cable Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$158.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611782

Control Case-Outer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 612569

Control Case-Center
(Superseded to 612633)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 611541

Column

Note: Important Note: Replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 611542

Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 612564

Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611543

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 611799

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 611258

Nut-Hex

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611205

Screw
(Superseded to 322-7)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 612557

Handle-Lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 613155

"S" Clip

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 608311

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 683738

Control Lever and Nut Assembly
(Superseded to 683478)

Note: Important Note: Replacement parts may not always be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 612168

Nut-Acorn

Note: Important Note: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 602315

Nut-Eyebolt and Clutch Arm

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 609739

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 10

0

21

Lawn-Boy 612586

Washer-Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 5

0

22

Lawn-Boy 611530

Hanger Bag

Note: Important Note: Replacement parts may not always be available in matching colors.

$115.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 682982

Grass Bag Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 683536

Latch Bar Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611500

Bag Adapter

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 602315

Nut-Bag Adapter

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

27

Lawn-Boy 602945

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 609891

Screw-Bar Adapter
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 146012

Bolt-Carriage
(Superseded to 3230-3)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 145875

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 607544

Wing Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 4 left!

0

32

Lawn-Boy 609269

Keys (2 on a Ring)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 611774

Screw-Cable to Eng. Mtg. Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 612582

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 611334

Decal-Latch Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 613069

Decal-Start Instructions

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 612975

Control Case-Inner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 612567

Cable-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$83.99

$

In Stock, only 3 left!

0

39

Lawn-Boy 612568

Decal-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 683847

Switch Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 683663

Lever and Knob Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 683669

Wire Harness Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 146085

Cam-Clutch Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 145793

Stop-Latch Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 611791

Bracket-Bail Stop

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 145946

Spring-Torsion

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 612580

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 612581

Nut-Tube

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
