465602x31B - Scotts 46" Lawn Tractor (2002) Engine Mount Parts Diagram

46" Lawn Tractor

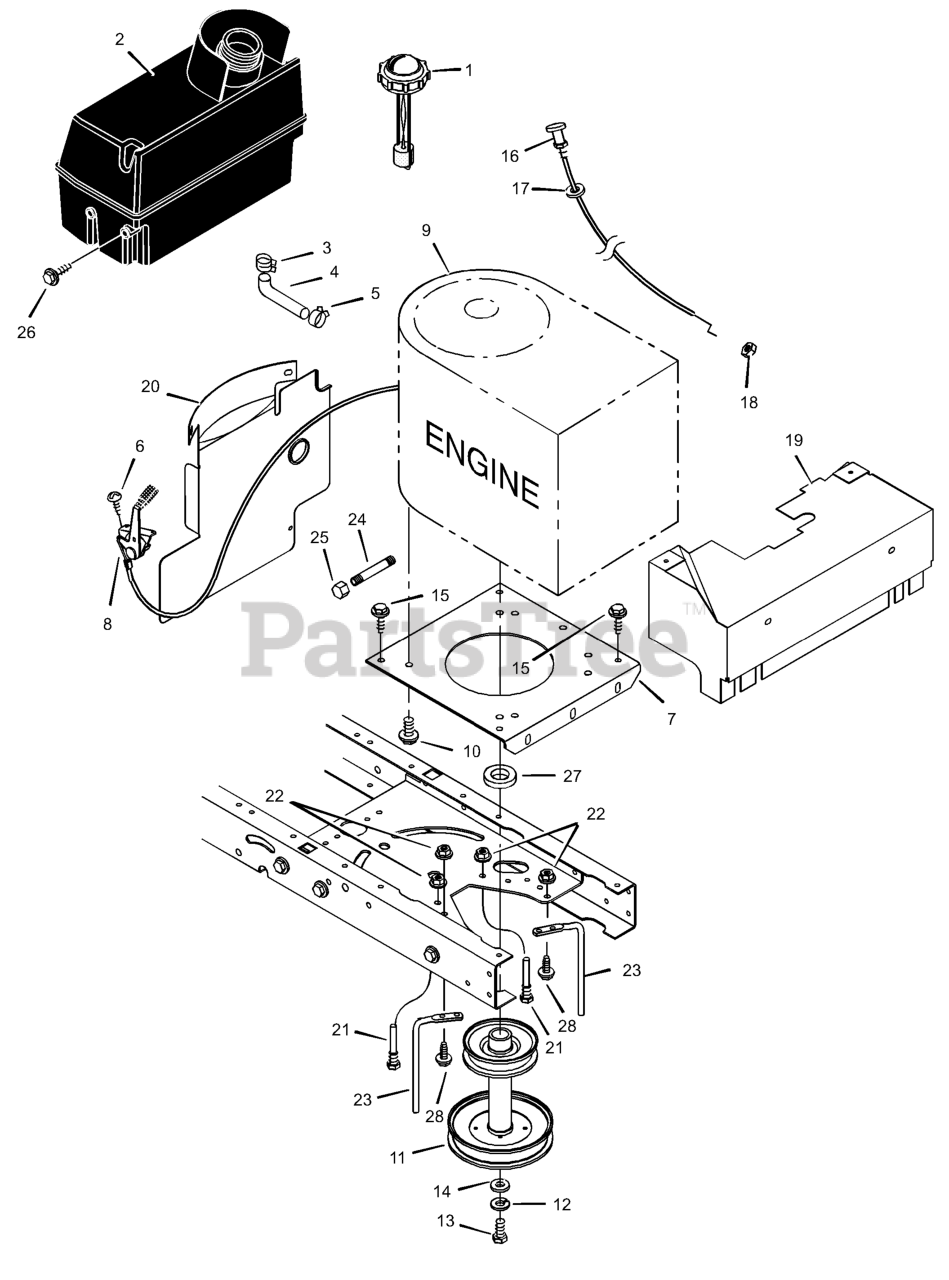

Engine Mount Parts Diagram

  • Title

1

Murray 1001279MA

Fuel Cap

$20.99

$

Usually ships in 2-12 days

0

2

Murray 690306

Fuel Tank

$

$

Not available

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

4

Murray 7601033MA

Fuel Line (Must cut to length)

Note: (Included with Ref. No. 2)

$22.99

$

In Stock, only 1 left!

0

5

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

8

Murray 093165MA

Throttle Control

$39.99

$

In Stock, only 1 left!

0

9

Engine *

$

$

Not available

--

Murray 095198MA

Muffler
(Superseded to 690838)

$152.99

$

Usually ships in 2-12 days

0

--

Murray 095208MA

Gasket, Muffler
(Superseded to 692282)

$6.99

$

In Stock, only 2 left!

0

--

Murray 095200

Liner, Port (Muffler)

$17.99

$

In Stock, only 1 left!

0

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 690507MA

Stack Pulley Assembly

$110.99

$

Usually ships in 2-12 days

0

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, only 2 left!

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, only 1 left!

0

14

Murray 17X170MA

Washer

$

$

Not available

15

Murray 26X249MA

Screw

$

$

Not available

16

Murray 690401

Choke

$3.99

$

In Stock, only 1 left!

0

17

Murray 0019X8MA

Washer
(Superseded to 703864)

$4.49

$

In Stock, only 1 left!

0

18

Murray 015X33MA

Nut

$3.49

$

In Stock, only 1 left!

0

19

Murray 093191

Shield, Heat

$90.99

$

Usually ships in 2-12 days

0

20

Murray 093078E700

Baffle, Rear Engine

$

$

Currently unavailable

21

Murray 094384MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

22

Murray 015X79 Z

Nut, Flange

$

$

Currently unavailable

23

Murray 091797 Z

Guide, "L" Belt

$

$

Currently unavailable

24

Murray 092279

Pipe, Oil Drain

$8.49

$

Usually ships in 2-12 days

0

25

Murray 021651

Cap, Oil Drain

$7.49

$

Usually ships in 2-12 days

0

26

Murray 26X253MA

Screw

$4.49

$

Usually ships in 2-12 days

0

27

Murray 093077MA

Spacer

$15.99

$

In Stock, only 1 left!

0

28

Murray 025X15MA

Screw
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0
