465606x692A - Stanley 46" Lawn Tractor (2001) Mower Housing Suspension (part 2) Parts Diagram

46" Lawn Tractor

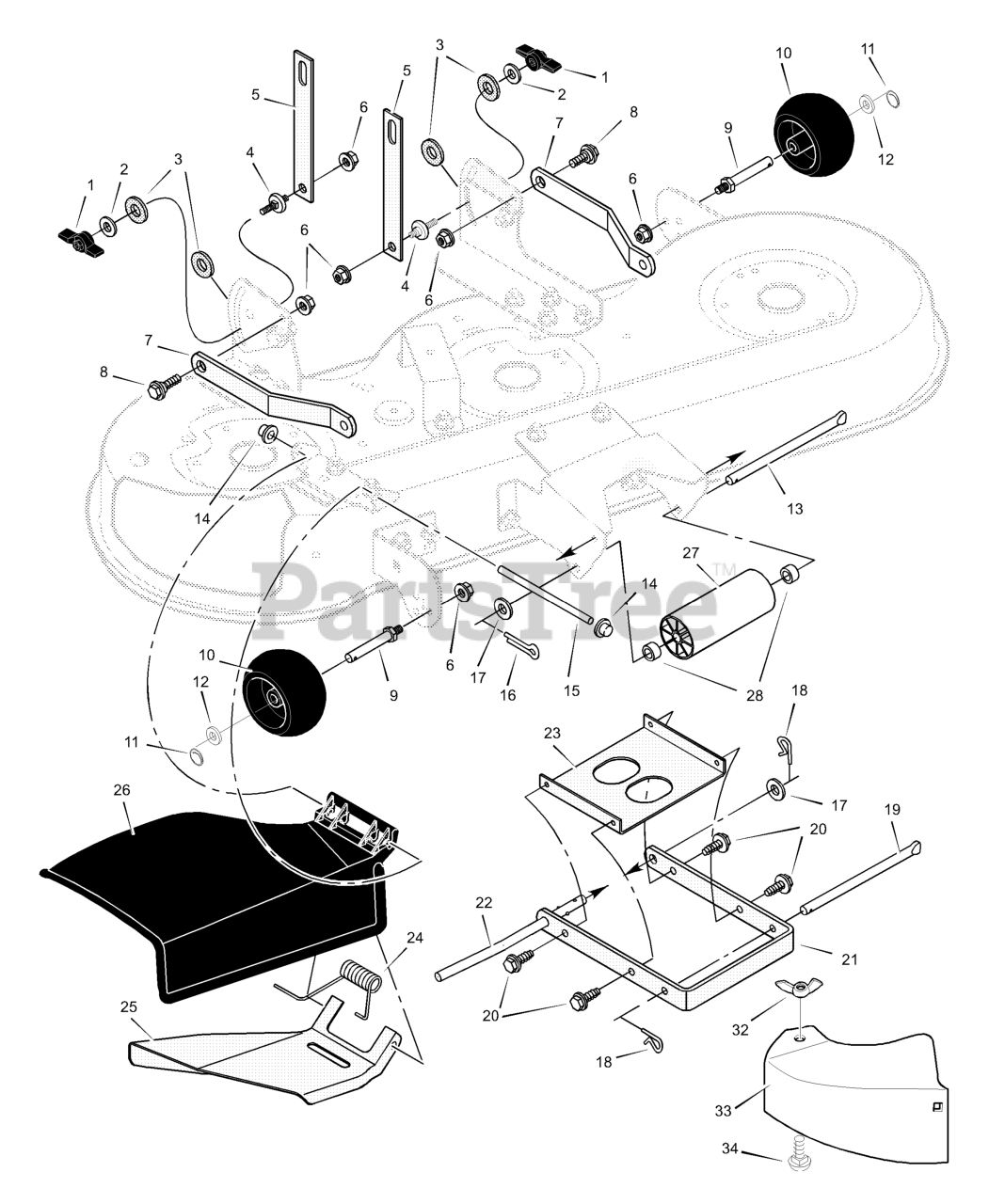

Mower Housing Suspension (part 2) Parts Diagram

  • Title

1

Murray 095004MA

Wingnut

$7.49

$

In Stock, only 1 left!

0

2

Murray 017X45MA

Washer

$

$

Not available

3

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 10

0

4

Murray 095194

Pin, Hanger
(Superseded to 095194MA)

$20.99

$

In Stock, only 1 left!

0

5

Murray 690212E700

Link, Lift

$

$

Currently unavailable

6

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 094055E701MA

Bracket, Suspension

$13.99

$

Usually ships in 2-12 days

0

8

Murray 009X52MA

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

9

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 2 left!

0

10

Murray 092265MA

Wheel, Gage

$15.99

$

Usually ships in 2-12 days

0

11

Murray 031X11MA

Pin, Hair

$4.49

$

In Stock, only 2 left!

0

12

Murray 017X91MA

Washer

$5.49

$

In Stock, only 4 left!

0

13

Murray 094996MA

Rod, Deck Suspension

$

$

Not available

14

Murray 028X23MA

Cap, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 19

0

15

Murray 092159ZMA

Rod, Pivot

$

$

Not available

16

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 12

0

17

Murray 17X103MA

Washer

$4.99

$

In Stock, Qty 7

0

18

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

19

Murray 094158ZMA

Rod, Hanger

$28.99

$

In Stock, only 1 left!

0

20

Murray 26X249MA

Screw

$

$

Not available

21

Murray 690539E700

Bracket, Front Suspension

$

$

Currently unavailable

22

Murray 094996MA

Rod, Hanger

$

$

Not available

23

Murray 094604E700

Stiffener

$

$

Currently unavailable

24

Murray 166X34MA

Spring, Torsion

$9.49

$

Usually ships in 2-12 days

0

25

Murray 092103E701MA

Deflector, Inside

$83.99

$

Usually ships in 2-12 days

0

26

Murray 092100MA

Deflector, Chute

$93.99

$

Usually ships in 2-12 days

0

27

Murray 092137MA

Roller

$32.99

$

Usually ships in 2-12 days

0

28

Murray 091925MA

Spacer

$12.99

$

In Stock, only 2 left!

0

32

Murray 014X86MA

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, Qty 14

0

33

Murray 095080E701MA

Plate, Mulch

$102.99

$

In Stock, Qty 6

0

34

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, Qty 5

0
