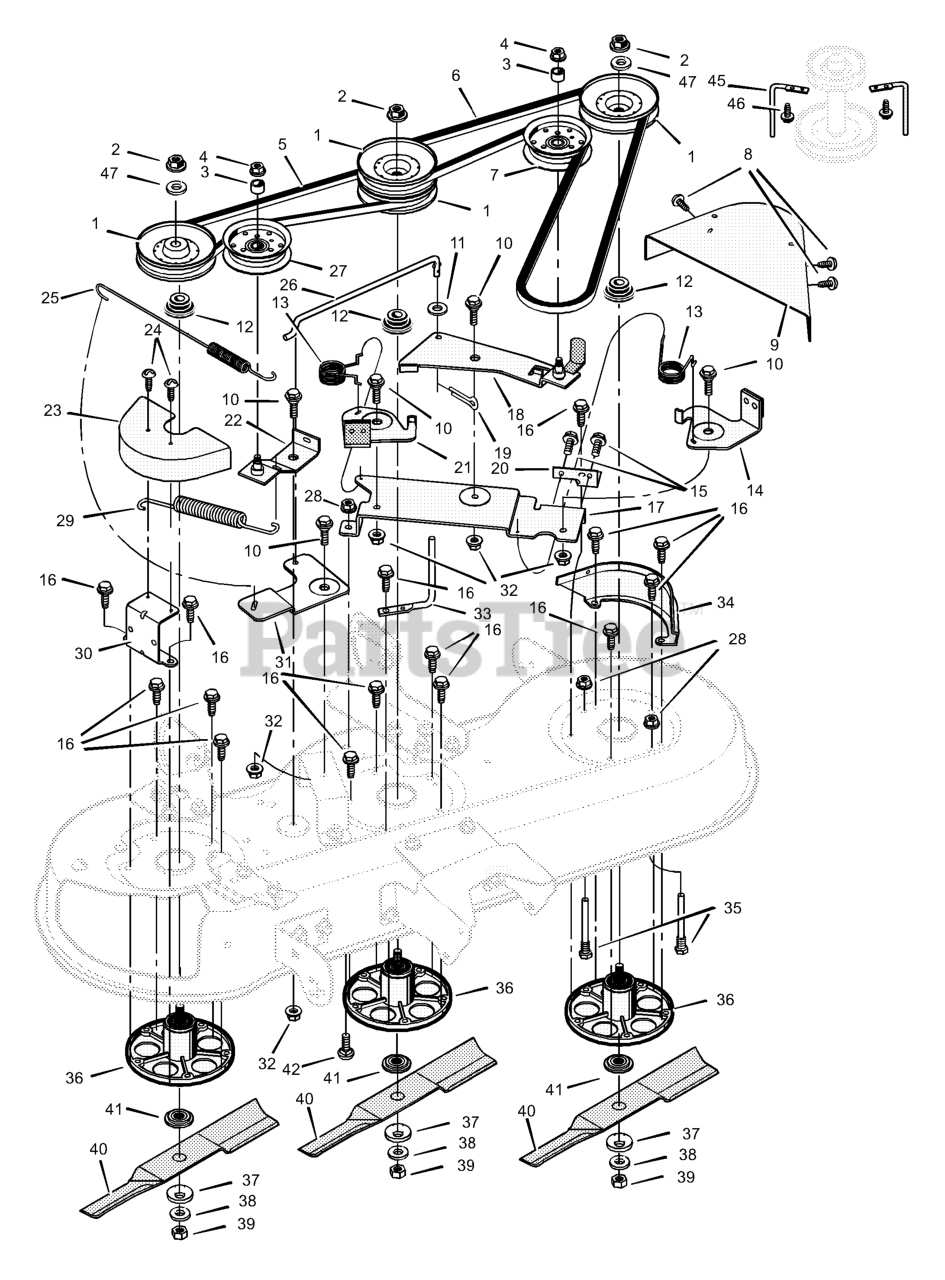

465606x692B - Stanley 46" Lawn Tractor (2002) Mower Housing Drive System Parts Diagram

46" Lawn Tractor

Mower Housing Drive System Parts Diagram

  • Title

1

Murray 094592MA

Pulley
(Superseded to 95309MA)

$32.99

$

Usually ships in 2-12 days

0

2

Murray 15X121

Nut

$9.99

$

In Stock, only 1 left!

0

3

Murray 690369MA

Spacer

$5.99

$

In Stock, Qty 6

0

4

Murray 015X98MA

Nut, Centerlock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Murray 7769221MA

Belt, Secondary

$

$

Not available

6

Murray 7769211MA

Belt, Primary

$39.99

$

In Stock, only 3 left!

0

7

Murray 690549MA

V-Pulley

$29.99

$

Usually ships in 2-12 days

0

8

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

9

Murray 094645E701MA

Cover, Left Pulley
(Superseded to 094605E701MA)

$75.99

$

In Stock, only 1 left!

0

10

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

11

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

12

Murray 1001197MA

Spacer, Pulley

$12.99

$

In Stock, only 1 left!

0

13

Murray 166X41MA

Spring, Torsion

$4.99

$

In Stock, only 1 left!

0

14

Murray 094640E700

Assembly, Left Brake

$

$

Currently unavailable

15

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

16

Murray 0025X7MA

Screw
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

17

Murray 094596E700

Plate, Brake Arm

$

$

Currently unavailable

18

Murray 690579E700MA

Assembly, Idler Arm
(Superseded to 7400227BMYP)

$149.99

$

Usually ships in 2-12 days

0

19

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Murray 094602E700

Bracket, Brake Plate Mount

$

$

Currently unavailable

21

Murray 094641E700

Assembly, Center Brake

$

$

Currently unavailable

22

Murray 094639E700

Assembly, Right Idler Arm

$

$

Currently unavailable

23

Murray 094607E701MA

Cover, Right Pulley
(Superseded to 7300857BMYP)

$82.99

$

Usually ships in 2-12 days

0

24

Murray 26X250MA

Screw
(Superseded to 703994)

$4.49

$

In Stock, only 3 left!

0

25

Murray 165X120MA

Spring, Extension

$11.99

$

In Stock, only 1 left!

0

26

Murray 094606 Z

Link, Bell Crank

$

$

Currently unavailable

27

Murray 690387MA

Pulley, Backside

$

$

Not available

28

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

29

Murray 165X79MA

Spring, Extension

$6.49

$

In Stock, Qty 10

0

30

Murray 092140E700

Cover, Bracket

$

$

Currently unavailable

31

Murray 094603E700

Crank, Bell

$

$

Currently unavailable

32

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

33

Murray 092116 Z

Guide, Belt

$

$

Currently unavailable

34

Murray 690221E700

Bracket, Pulley Cover

$7.49

$

Usually ships in 2-12 days

0

35

Murray 091754 Z

Guide, Belt

$

$

Currently unavailable

36

Murray 1001200MA

Assembly, Jackshaft Housing

$82.99

$

In Stock, Qty 17

0

37

Murray 17X166MA

Washer, Belleville

Note: (Included with Ref. No. 41)

$13.99

$

In Stock, Qty 6

0

38

Murray 17X165MA

Washer

Note: (Included with Ref. No. 41)

$16.99

$

In Stock, Qty 5

0

39

Murray 15X100MA

Nut

Note: (Included with Ref. No. 41)

$3.99

$

In Stock, Qty 6

0

40

Murray 7769204

Blade

$

$

Not available

41

Murray 7769213MA

Adapter, Blade

$17.99

$

Usually ships in 2-12 days

0

42

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

45

Murray 091797 Z

Guide, Belt

$

$

Currently unavailable

46

Murray 025X15MA

Screw
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

47

Murray 017X87

Washer

$13.99

$

Usually ships in 2-12 days

0
