465614x48A - Briggs & Stratton 46" Lawn Tractor (2004) (Mills) Hood & Grille Parts Diagram

46" Lawn Tractor

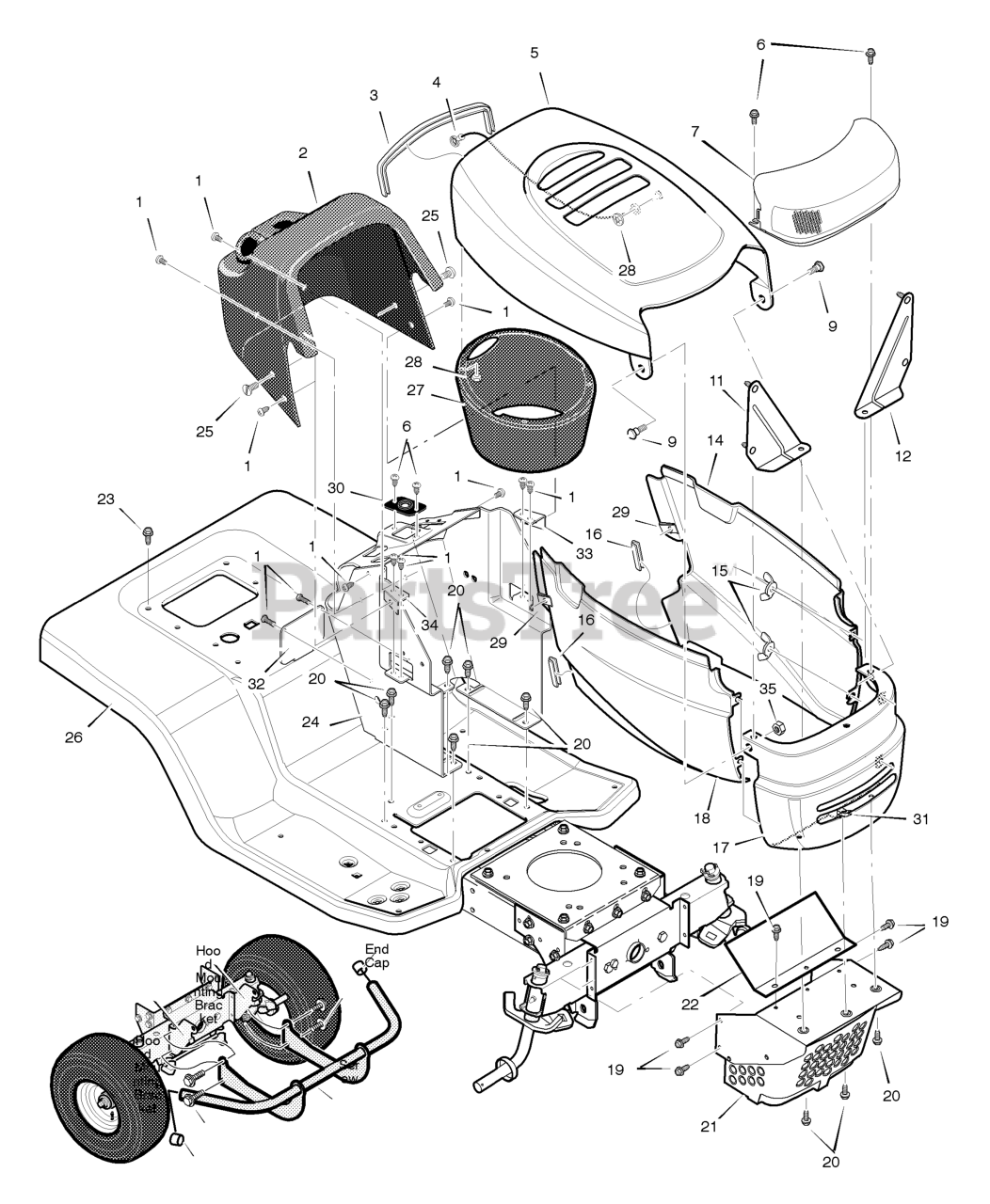

Hood & Grille Parts Diagram

  • Title

1

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, only 3 left!

0

2

Murray 1001878

Dash

$104.99

$

Usually ships in 2-12 days

0

3

Murray 7601029

Trim 2.23"

$5.99

$

Usually ships in 2-12 days

0

4

Murray 643129

Cable

$

$

Not available

5

Murray 1001186E700

Hood Assembly

$

$

Currently unavailable

6

Murray 26X238MA

Screw

$3.99

$

Usually ships in 2-12 days

0

7

Murray 95234

Lens & Reflector Assembly
(Superseded to 95234GS)

$45.99

$

Usually ships in 2-12 days

0

9

Murray 009X77

Bolt, Shoulder

$3.99

$

Usually ships in 2-12 days

0

11

Murray 1001169E700

Brace, Right Grille Assembly

$

$

Currently unavailable

12

Murray 1001171E700

Brace, Left Grille Assembly

$

$

Currently unavailable

14

Murray 1001746E700

Panel, Left Side

$

$

Currently unavailable

15

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

16

Murray 7601029

Trim 0.39"

$5.99

$

Usually ships in 2-12 days

0

17

Murray 1001126E700

Grille

$

$

Currently unavailable

18

Murray 1001745E700

Panel, Right Side

$

$

Currently unavailable

19

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

20

Murray 26X249MA

Screw

$

$

Not available

21

Murray 1001191E701

Guard Assembly, Muffler

$133.99

$

Usually ships in 2-12 days

0

22

Murray 1001504

Shield, Upper Heat

$6.49

$

Usually ships in 2-12 days

0

23

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

24

Murray 95175E700

Console

$

$

Currently unavailable

25

Murray 26X239MA

Screw

$4.49

$

In Stock, only 2 left!

0

26

Murray 1001556E700MA

Deck Seat
(Superseded to 1001556E701MA)

$

$

Not available

27

Murray 1001158

Plenum

$79.99

$

Usually ships in 2-12 days

0

28

Murray 028X49MA

Retainer, Push

$3.99

$

In Stock, Qty 13

0

29

Murray 028X33MA

Cap, Push

$4.49

$

Usually ships in 2-12 days

0

30

Murray 1001491MA

Bearing, Steering

$5.49

$

Usually ships in 2-12 days

0

31

Murray 028X57

U-Nut

$4.99

$

Usually ships in 2-12 days

0

32

Murray 093007E700

Panel, Access

$

$

Currently unavailable

33

Murray 094464

Bracket, Right Console

$4.49

$

Usually ships in 2-12 days

0

34

Murray 094465

Bracket, Left Console

$4.49

$

Usually ships in 2-12 days

0

35

Murray 15X148MA

Nut

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-040744L

Book, Instruction

$

$

Currently unavailable
