465622x99A - Briggs & Stratton 46" Lawn Tractor (2002) (AAFES) Steering Assembly Parts Diagram

46" Lawn Tractor

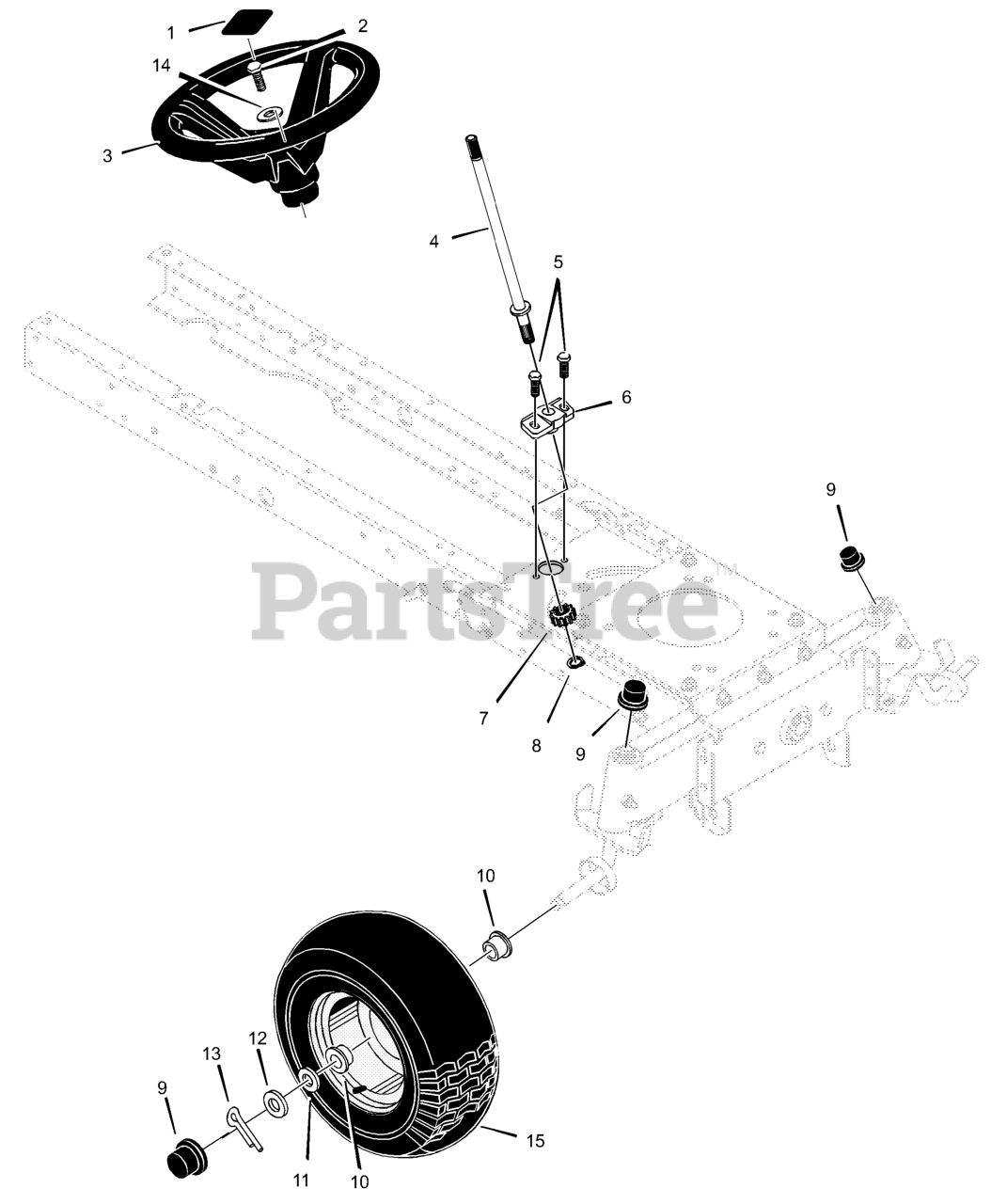

Steering Assembly Parts Diagram

  • Title

1

Murray 711326MA

Insert

$7.99

$

Usually ships in 2-12 days

0

2

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

3

Murray 095185MA

Wheel, Steering
(Superseded to 1687602YP)

$117.99

$

In Stock, only 1 left!

0

4

Murray 690625

Shaft, Steering

$54.99

$

In Stock, only 1 left!

0

5

Murray 26X267MA

Screw

$4.99

$

Usually ships in 2-12 days

0

6

Murray 094124MA

Bearing

$15.99

$

In Stock, only 4 left!

0

7

Murray 690183MA

Gear, Pinion

$

$

Not available

8

Murray 011X25MA

Ring, Snap

$4.49

$

In Stock, Qty 5

0

9

Murray 094618MA

Cap

$5.99

$

In Stock, Qty 20+

0

10

Murray 091334

Bearing, Wheel

$22.99

$

Usually ships in 2-12 days

0

11

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 16

0

12

Murray 17X192MA

Washer

$5.49

$

In Stock, Qty 12

0

13

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 9

0

14

Murray 17X146MA

Washer
(Superseded to 1933468SM)

$4.49

$

Usually ships in 2-12 days

0

15

Murray 094509601

Wheel & Tire, Front

$

$

Currently unavailable

--

Murray 343666

Tire Only

$

$

Currently unavailable

--

Murray 407924

Tube

$

$

Not available

--

Murray 024373MA

Stem, Valve

$8.49

$

Usually ships in 2-12 days

0
