46562x8B - Scotts 46" Lawn Tractor (1997) Blade Drive Assembly Parts Diagram

46" Lawn Tractor

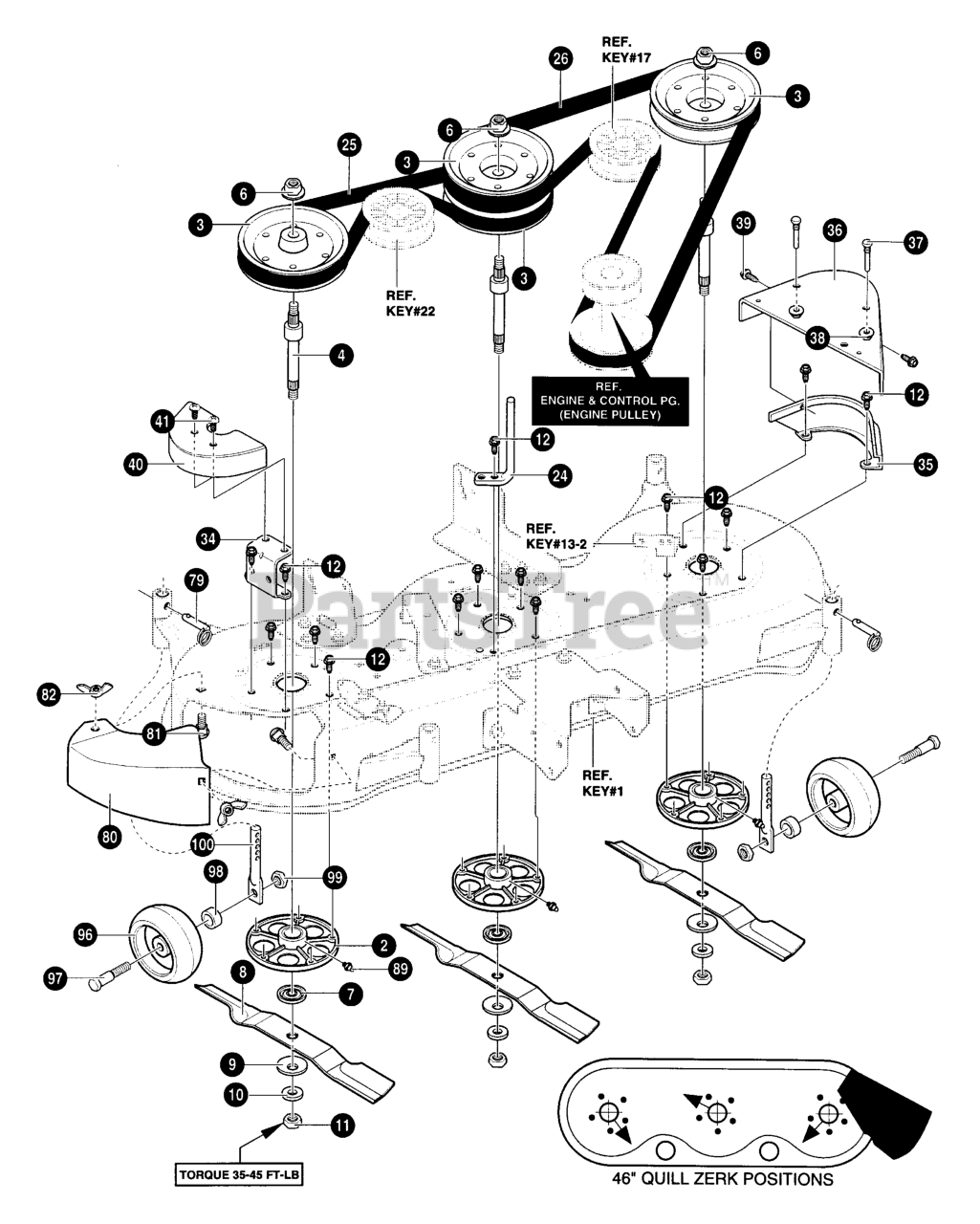

Blade Drive Assembly Parts Diagram

  • Title

2

Murray 094752

JACKSHAFT

$

$

Currently unavailable

3

Murray 094592MA

PULLEY
(Superseded to 95309MA)

$32.99

$

Usually ships in 2-12 days

0

4

Murray 094502MA

SHAFT, JACKSHAFT

$27.99

$

Usually ships in 2-12 days

0

6

Murray 710191

NUT

$3.49

$

Usually ships in 2-12 days

0

7

Murray 095416

HUB, BLADE ADAPTER

$23.99

$

In Stock, only 1 left!

0

8

Murray 056631E701MA

BLADE, MULCHER

$19.99

$

In Stock, Qty 20+

0

9

Murray 17X166 Z

WASHER

$

$

Currently unavailable

10

Murray 17X165MA

WASHER

$16.99

$

In Stock, Qty 5

0

11

Murray 15X100 Z

NUT

$

$

Currently unavailable

12

Murray 0025X7MA

SCREW
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

24

Murray 92116

ROD, BELT GUIDE

$

$

Not available

25

Murray 037X66MA

BELT

$24.99

$

In Stock, Qty 9

0

26

Murray 037X89A

BELT

$

$

Currently unavailable

34

Murray 92140E821

BRACKET, PULLEY COVER

$

$

Currently unavailable

35

Murray 94643-821

BRACKET, PULLEY COVER

$

$

Currently unavailable

36

Murray 94605-821

PULLEY, COVER

$

$

Currently unavailable

37

Murray 093349MA

SCREW, GUIDE 5/16-18

$4.49

$

Usually ships in 2-12 days

0

38

Murray 015X79MA

NUT, 5/16- 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

39

Murray 26X249MA

SCREW

$

$

Not available

40

Murray 94607-821

COVER, RIGHT PULLEY

$

$

Currently unavailable

41

Murray 26X250MA

SCREW
(Superseded to 703994)

$4.49

$

In Stock, only 3 left!

0

79

Murray 094584MA

PIN, RING

$6.49

$

Usually ships in 2-12 days

0

80

Murray 056630

PLATE, MULCHER

$

$

Currently unavailable

81

Murray 002X65

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

82

Murray 014X86MA

WINGNUT
(Superseded to 703141)

$3.49

$

In Stock, Qty 12

0

89

Murray 092530MA

ZERK, GREASE FITTING

$5.49

$

Usually ships in 2-12 days

0

95

Murray 711418MA

WASHER

$5.99

$

Usually ships in 2-12 days

0

96

Murray 092265MA

WHEEL, GAUGE

$15.99

$

Usually ships in 2-12 days

0

97

Murray 711479

BOLT, 3/8- 16

$

$

Currently unavailable

98

Murray 325463

SPACER

$

$

Currently unavailable

99

Murray 41529MA

NUT, 3/8- 16

$3.99

$

In Stock, Qty 9

0

100

Murray 094671

ROD, GAUGE

$

$

Currently unavailable
