46562x8B - Scotts 46" Lawn Tractor (1997) Engine & Control Assembly Parts Diagram

46" Lawn Tractor

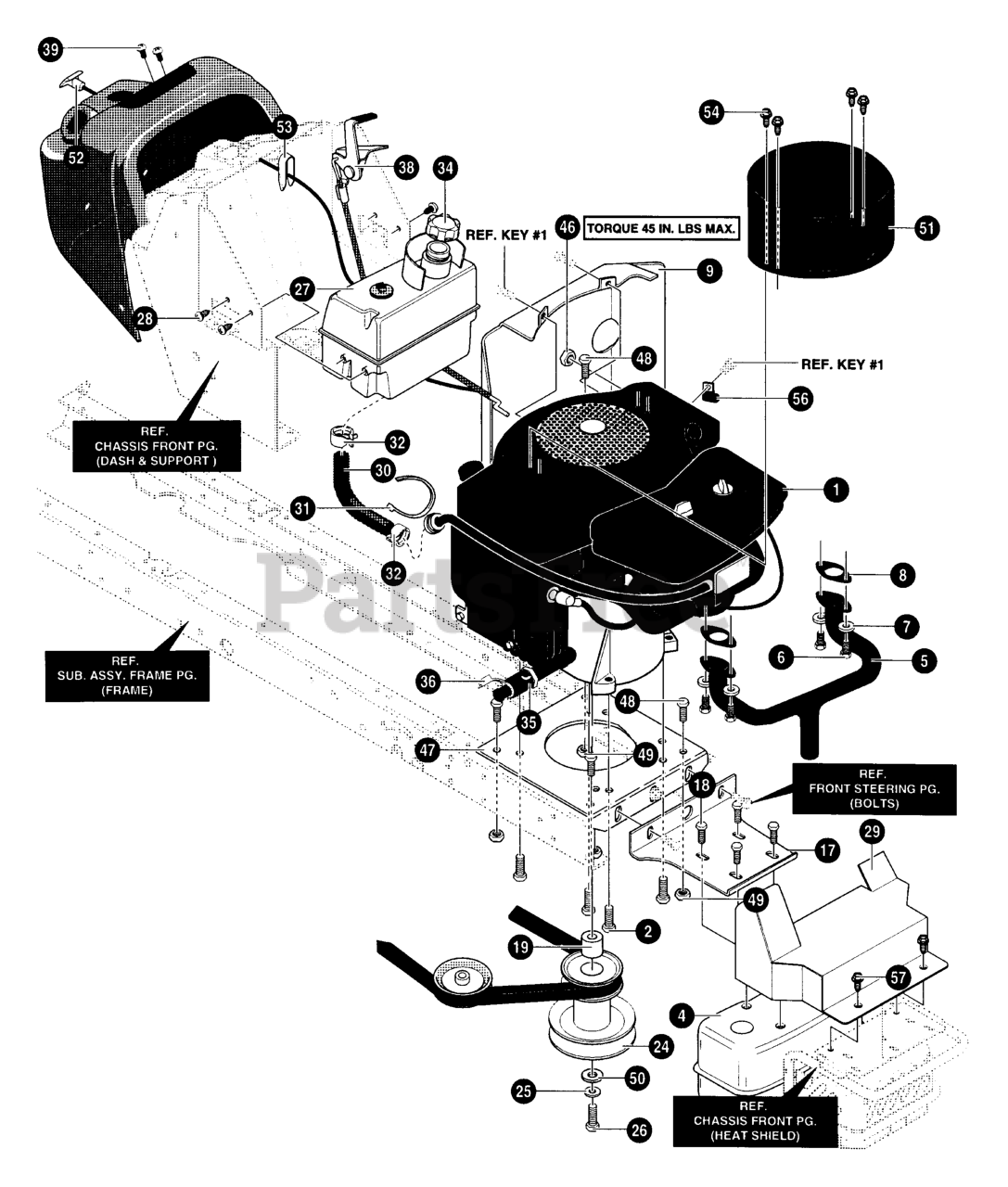

Engine & Control Assembly Parts Diagram

  • Title

1

ENGINE 15HP BS OHV IC

Note: (See Engine Manual)

$

$

Not available

2

Murray 0025X7MA

SCREW, 3/8- 16X1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

4

Murray 094655MA

MUFFLER, SINGLE- CYLINDER

$86.99

$

Usually ships in 2-12 days

0

5

Murray 094660

EXHAUST MANIFOLD

$

$

Currently unavailable

6

Murray 180020

SCREW

$

$

Not available

7

Murray 120380

WASHER
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

8

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

9

Murray 95030E717

SHIELD, HEAT

$

$

Currently unavailable

17

Murray 94307E717

BRACKET, MUFFLER MOUNT

$

$

Currently unavailable

18

Murray 0025X2MA

SCREW, 1/4-20X.75
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

19

Murray 093077MA

SPACER, SLEEVE

$15.99

$

In Stock, only 1 left!

0

24

Murray 094593

PULLEY, STACK ASSY

$

$

Currently unavailable

25

Murray 019X35MA

WASHER

$4.99

$

In Stock, only 2 left!

0

26

Murray 01X140MA

SCREW

$5.49

$

In Stock, only 1 left!

0

27

Murray 094484

TANK, FUEL 2.8 GAL.

$108.99

$

Usually ships in 2-12 days

0

28

Murray 26X233MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

29

Murray 95009E717

HEAT SHIELD

$119.99

$

Usually ships in 2-12 days

0

30

Murray 7601033MA

Fuel Line (Must cut to length)

$22.99

$

Usually ships in 2-12 days

0

31

Murray 032618MA

CABLE TIE

$3.99

$

Usually ships in 2-12 days

0

32

Murray 091174

CLAMP, GAS

$

$

Currently unavailable

34

Murray 092317MA

CAP, FUEL

$10.99

$

In Stock, Qty 12

0

35

Murray 325547MA

OIL DRAIN

$

$

Not available

36

Murray 327422

CAP, OIL DRAIN

$

$

Not available

38

Murray 094501

THROTTLE CONTROL

$

$

Currently unavailable

39

Murray 26X201MA

SCREW, #8- 16X.50

$4.49

$

In Stock, only 2 left!

0

46

Murray 15X116MA

NUT 1 /4- 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

47

Murray 94006E717

PLATE, ENGINE

$

$

Currently unavailable

48

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

49

Murray 015X88MA

NUT, 5/16- 18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

50

Murray 17X170MA

FLATWASHER

$

$

Not available

51

Murray 95012

PLENUM, ENGINE
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

52

Murray 094500

CHOKE CONTROL

$

$

Currently unavailable

53

Murray 314522

CLIP, CHOKE CONTROL

$1.99

$

Usually ships in 2-12 days

0

54

Murray 057366MA

SCREW 10- 16X0.5

$3.49

$

Usually ships in 2-12 days

0

56

Murray 57569

RETAINER, WIRE

$

$

Not available

57

Murray 26X229MA

SCREW

$4.49

$

In Stock, only 1 left!

0
