46562x8B - Scotts 46" Lawn Tractor (1997) Pre-painted Blade Housing Assembly Parts Diagram

46" Lawn Tractor

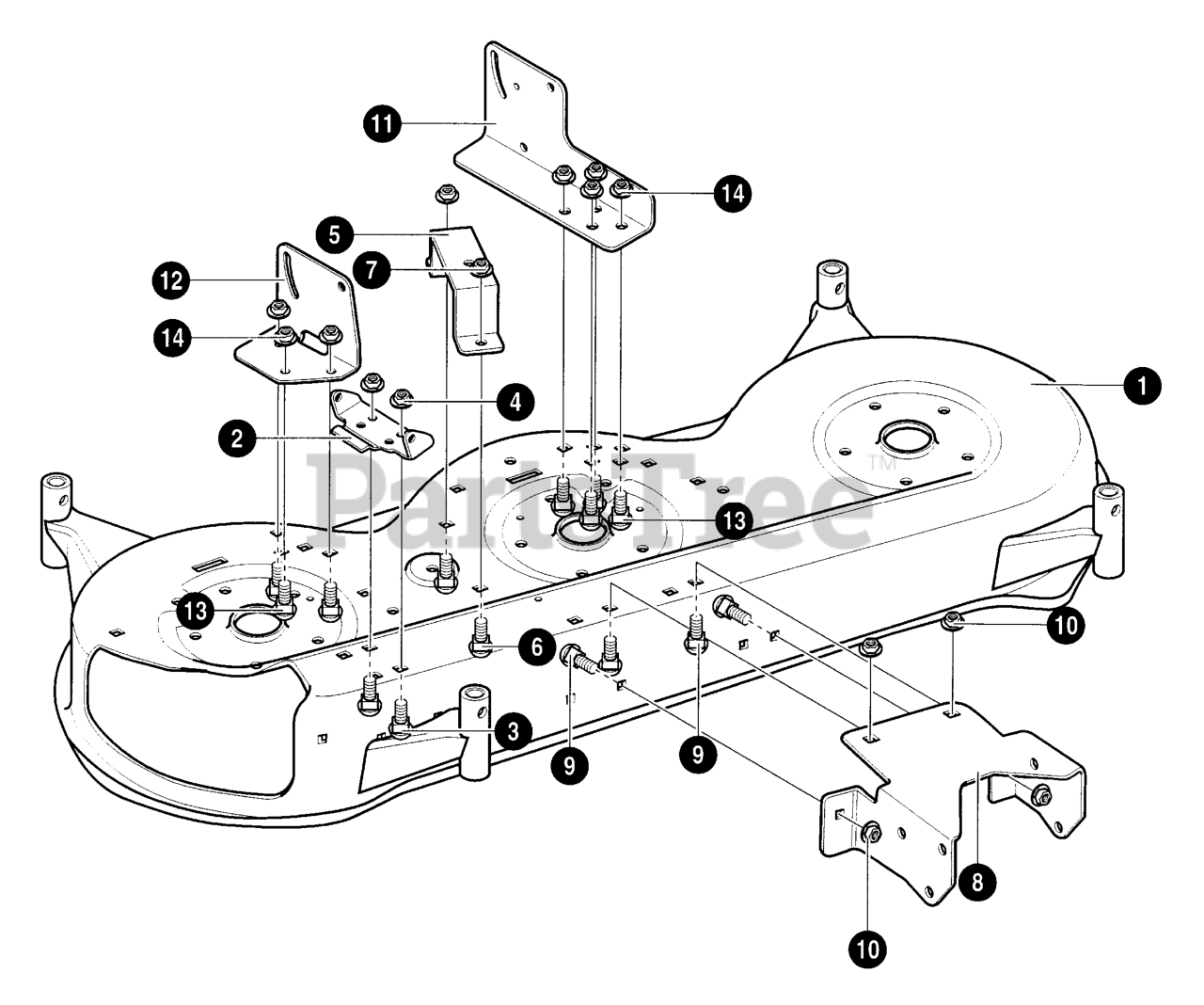

Pre-painted Blade Housing Assembly Parts Diagram

  • Title

1

Murray 710145E717

ASSY BLD HSING 42"

$

$

Currently unavailable

2

Murray 94104E717

HINGE, CHUTE BRACKET

$

$

Currently unavailable

3

Murray 002X53MA

BOLT, 5/16- 18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

4

Murray 015X88MA

NUT, 5/16- 18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

5

Murray 94601

BRACKET, BELL CRANK

$

$

Currently unavailable

6

Murray 002X53MA

BOLT, 5/16- 18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

7

Murray 015X79MA

NUT, 5/16- 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Murray 94997

BRACKET, FRONT DECK

$

$

Currently unavailable

9

Murray 002X53MA

BOLT, 5/16- 18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

10

Murray 015X79MA

NUT, 5/16- 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Murray 94600

BRACKET, LEFT LIFTER

$

$

Currently unavailable

12

Murray 94598

BRACKET, RIGHT LIFTER

$

$

Currently unavailable

13

Murray 002X53MA

BOLT, 5/16- 18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

14

Murray 015X79MA

NUT, 5/16- 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
