46569x6A - Murray Ultra 46" Lawn Tractor (1998) Electrical System Parts Diagram

Ultra 46" Lawn Tractor

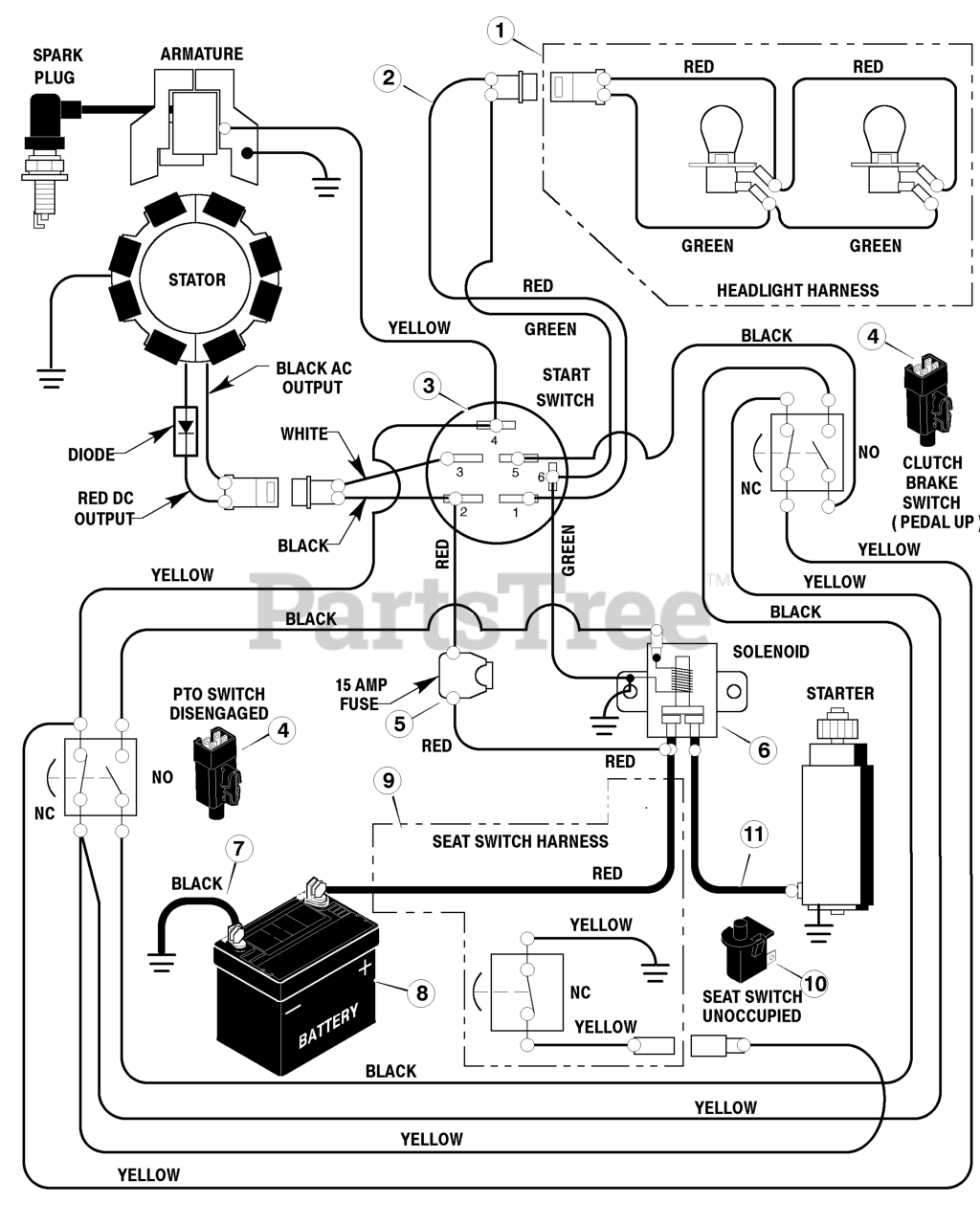

Electrical System Parts Diagram

  • Title
1

Murray 250X68

Harness, Light Wire

$

$

Currently unavailable

--

Murray 092372

Socket, Light

$7.49

$

In Stock, Qty 6

0

--

Murray 090084MA

Bulb, Light
(Superseded to 1677371SM)

$28.99

$

In Stock, only 2 left!

0

2

Murray 250X70

Harness, Chassis Wire

$

$

Currently unavailable

3

Murray 092377MA

Switch, Ignition

$22.99

$

In Stock, Qty 14

0

--

Murray 020729

Key, Ignition

$5.49

$

In Stock, Qty 7

0

--

Murray 091489MA

Nut, Hex
(Superseded to 847144)

$10.99

$

In Stock, only 2 left!

0

--

Murray 091488

Cap, Ignition
(Superseded to 091488MA)

$4.49

$

In Stock, Qty 8

0

4

Murray 094136MA

Switch, Limit

$11.99

$

In Stock, Qty 17

0

5

$6.49

$

Usually ships in 2-12 days

0

--

Murray 407078MA

Holder, Fuse

$19.99

$

In Stock, only 1 left!

0

6

Murray 094613

Solenoid

$25.99

$

In Stock, Qty 20+

0

--

Murray 26X229MA

Screw, Mounting

$3.99

$

In Stock, only 1 left!

0

--

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 024X32MA

Cable, Battery Ground

$7.49

$

Usually ships in 2-12 days

0

--

Murray 26X213MA

Screw, Ground Cable

$4.49

$

In Stock, only 1 left!

0

8

Murray 021075

Battery

$

$

Currently unavailable

--

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

In Stock, only 1 left!

0

--

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

9

Murray 250X67MA

Harness, Seat Switch Wire

$

$

Not available

10

Murray 094159MA

Switch, Seat Sensor
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

11

$6.99

$

In Stock, only 2 left!

0
