46580x89A - Yard King 46" Lawn Tractor (2000) Deck Assembly (part 2) Parts Diagram

46" Lawn Tractor

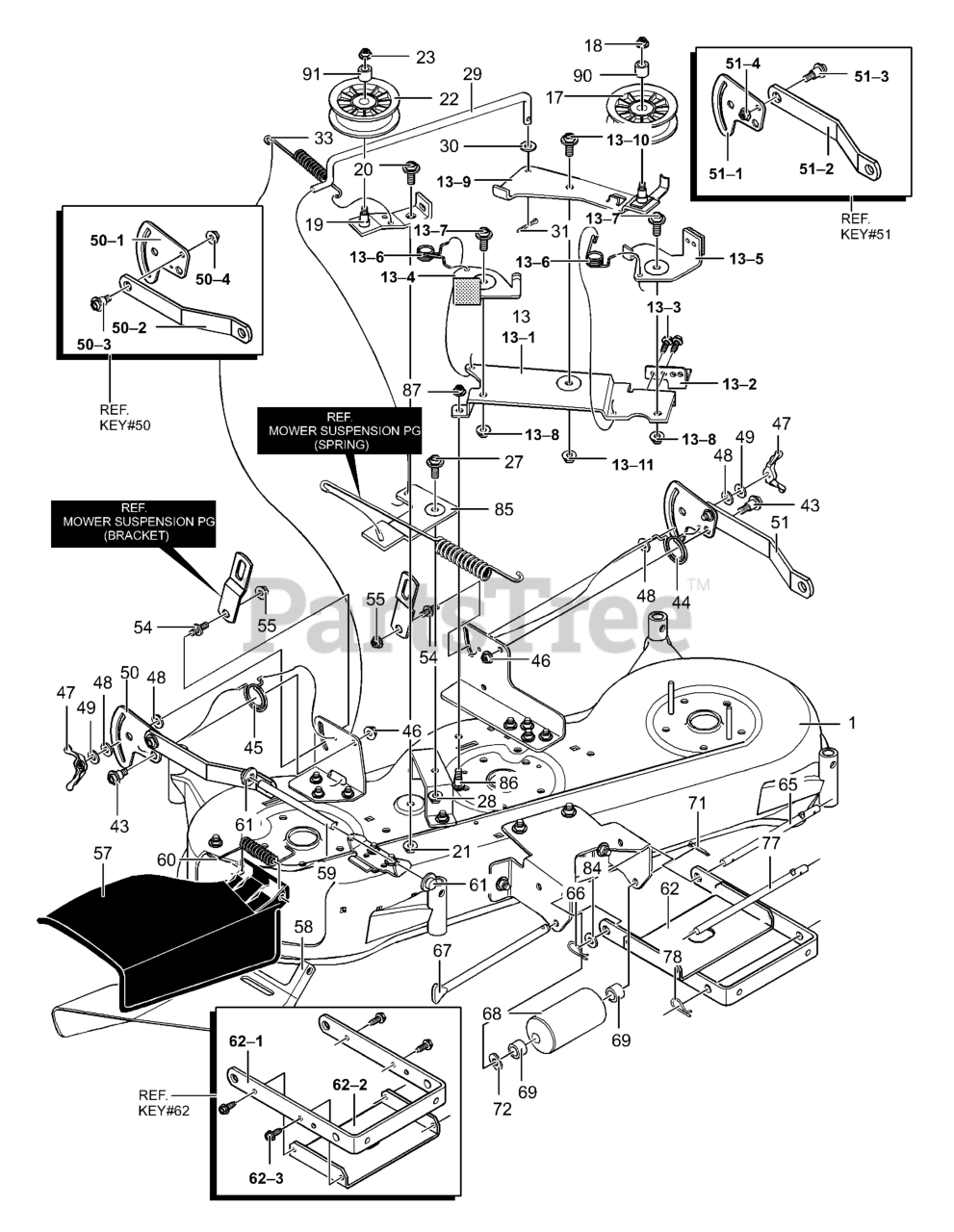

Deck Assembly (part 2) Parts Diagram

  • Title

1

Murray 341819-821

46" MOWER DECK

$

$

Currently unavailable

13

Murray 94720-821

BRACKET, MOUNTING

$

$

Currently unavailable

13-1

Murray 94596

PLATE, BRAKE ARM

$

$

Currently unavailable

13-2

Murray 94602

BRACKET, MOUNTING
(Superseded to 690664)

$5.49

$

In Stock, Qty 5

0

13-3

Murray 26X249MA

SCREW

$

$

Not available

13-4

Murray 94640

ASSEMBLY, LEFT BRAKE

$

$

Currently unavailable

13-5

Murray 94641

ASSEMBLY, BRAKE CENTER

$

$

Currently unavailable

13-6

Murray 710227

TORSION SPRING

$33.99

$

Usually ships in 2-12 days

0

13-7

Murray 710098

BOLT
(Superseded to 710634)

$12.99

$

Usually ships in 2-12 days

0

13-8

Murray 015X84MA

LOCKNUT, FLANGE
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

13-9

Murray 690579

ASSSEMBLY, IDLER ARM

$7.49

$

Usually ships in 2-12 days

0

13-10

Murray 710098

BOLT
(Superseded to 710634)

$12.99

$

Usually ships in 2-12 days

0

13-11

Murray 015X84MA

LOCKNUT, FLANGE
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Murray 690451

PULLEY, IDLER

$2.99

$

Usually ships in 2-12 days

0

18

Murray 711920MA

NUT, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

19

Murray 94639-821

ASS'Y, RIGHT IDLER ARM

$

$

Currently unavailable

20

Murray 711613MA

BOLT

$1.99

$

Usually ships in 2-12 days

0

21

Murray 711622

NUT 3/8-16

$

$

Currently unavailable

22

Murray 690452

PULLEY, IDLER

$10.99

$

Usually ships in 2-12 days

0

23

Murray 711920MA

NUT, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

27

Murray 711613MA

BOLT

$1.99

$

Usually ships in 2-12 days

0

28

Murray 711622

NUT, 3/8-16

$

$

Currently unavailable

29

Murray 95301

LINK, BELLCRANK

$8.49

$

Usually ships in 2-12 days

0

30

Murray 711644MA

WASHER, FLAT

$3.49

$

Usually ships in 2-12 days

0

31

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

33

Murray 710845

SPRING, EXTENSION

$3.99

$

Usually ships in 2-12 days

0

43

Murray 711611

BOLT, SHOULDER

$1.49

$

Usually ships in 2-12 days

0

44

Murray 710113

SPRING, TORSION

$10.99

$

In Stock, Qty 5

0

45

Murray 710112

SPRING, TORSION

$11.99

$

In Stock, only 2 left!

0

46

Murray 711622

NUT, 3/8-16

$

$

Currently unavailable

47

Murray 711600

WINGNUT, 5/16-18

$

$

Currently unavailable

48

Murray 094137MA

PAD, FRICTION

$6.99

$

In Stock, Qty 10

0

49

Murray 711628MA

WASHER
(Superseded to 017X45MA)

$

$

Not available

50

Murray 690490-821

BRKT, RIGHT SUSPENSION

$

$

Currently unavailable

50-1

Murray 690127

PLATE, SUSPENSION

$

$

Currently unavailable

50-2

Murray 94055

BRKT, REAR SUSPENSION

$

$

Currently unavailable

50-3

Murray 009X52MA

BOLT, SHOULDER

$6.49

$

In Stock, only 2 left!

0

50-4

Murray 015X84MA

LOCKNUT, FLANGE
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

51

Murray 690489-821

BRKT, LEFT SUSPENSION

$

$

Currently unavailable

51-1

Murray 690127

PLATE, SUSPENSION

$

$

Currently unavailable

51-2

Murray 94055

BRKT, REAR SUSPENSION

$

$

Currently unavailable

51-3

Murray 009X52MA

BOLT, SHOULDER

$6.49

$

In Stock, only 2 left!

0

51-4

Murray 015X84MA

LOCKNUT, FLANGE
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

54

Murray 711595

PIN, HANGER

$

$

Not available

55

Murray 711622

NUT, 3/8-16

$

$

Currently unavailable

57

Murray 092100MA

DEFLECTOR, CHUTE

$93.99

$

Usually ships in 2-12 days

0

58

Murray 92103-821

DEFLECTOR, INNER CHUTE

$

$

Currently unavailable

59

Murray 95281

ROD, DEFLECTOR

$1.99

$

Usually ships in 2-12 days

0

60

Murray 710220

SPRING, TORSION

$4.49

$

Usually ships in 2-12 days

0

61

Murray 711627MA

NUT, PUSH CAP

$

$

Not available

62

Murray 690058-821

BRACKET & STIFFENER

$18.99

$

Usually ships in 2-12 days

0

62-1

Murray 94058

BRKT, FRONT SUSPENSION

$3.99

$

Usually ships in 2-12 days

0

62-2

Murray 95057

STIFFENER

$

$

Currently unavailable

62-3

Murray 26X249MA

SCREW

$

$

Not available

65

Murray 95271

ROD, DECK

$

$

Currently unavailable

66

Murray 711676

PIN, HAIR

$

$

Currently unavailable

67

Murray 95302MA

ROD, ROLLER

$48.99

$

Usually ships in 2-12 days

0

68

Murray 310071MA

ROLLER

$91.99

$

Usually ships in 2-12 days

0

69

Murray 95188MA

SPACER

$10.99

$

Usually ships in 2-12 days

0

71

Murray 711635

PIN, COTTER

$

$

Not available

72

Murray 711739

WASHER, WAVE

$18.99

$

Usually ships in 2-12 days

0

77

Murray 95295

ROD, HANGER

$

$

Currently unavailable

78

Murray 711676

PIN, HAIR

$

$

Currently unavailable

84

Murray 711616

WASHER, FLAT

$

$

Not available

85

Murray 94603-821

BELLCRANK

$5.99

$

Usually ships in 2-12 days

0

86

Murray 711661

BOLT

$

$

Not available

87

Murray 711634MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

90

Murray 690369MA

SPACER 1/2 TO 17MM

$5.99

$

In Stock, Qty 6

0

91

Murray 690369MA

SPACER 1/2 TO 17MM

$5.99

$

In Stock, Qty 6

0
