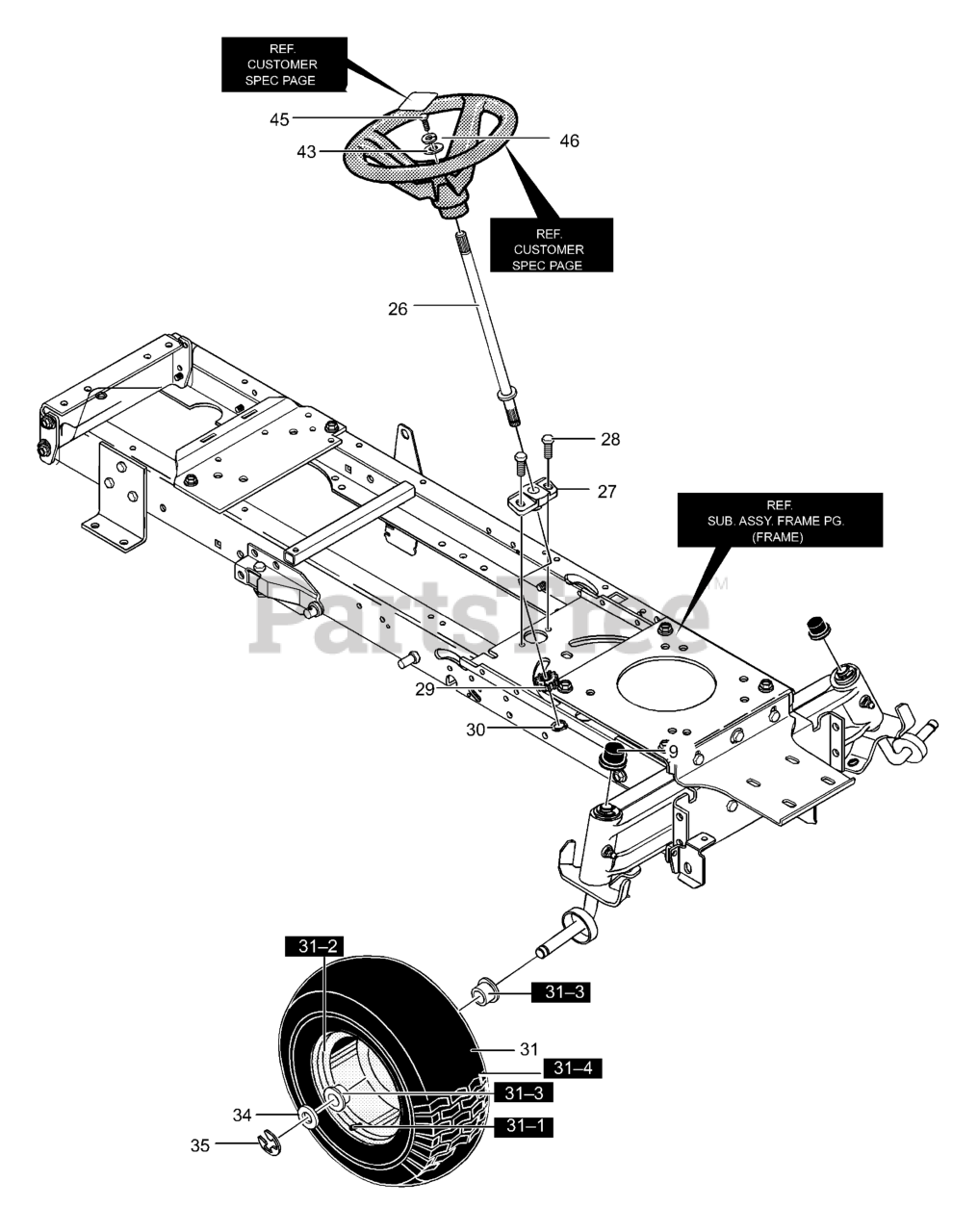

46580x89A - Yard King 46" Lawn Tractor (2000) Steering Parts Diagram

46" Lawn Tractor

Steering Parts Diagram

  • Title

9

Murray 094618MA

HUB CAP

$5.99

$

In Stock, Qty 20+

0

26

Murray 094520

SHAFT, STEERING BOLT-ON

$64.99

$

Usually ships in 2-12 days

0

27

Murray 094124MA

BEARING-LOWER

$14.99

$

In Stock, only 2 left!

0

28

Murray 711606MA

SCREW

$7.99

$

In Stock, only 2 left!

0

29

Murray 094122

GEAR PINNION

$

$

Not available

30

Murray 710102

RING, RETAINER

$15.99

$

Usually ships in 2-12 days

0

31

Murray 094509

TIRE & RIM

$185.99

$

Usually ships in 2-12 days

0

31-1

Murray 338512

VALVE STEM

$

$

Not available

31-2

Murray 338517MA

RIM

$93.99

$

In Stock, only 1 left!

0

31-3

Murray 338513

BEARING

$

$

Not available

31-4

Murray 343666

TIRE

$

$

Currently unavailable

--

Murray 094618MA

HUB CAP

$5.99

$

In Stock, Qty 20+

0

34

Murray 711758

WASHER, FLAT

$26.99

$

In Stock, only 1 left!

0

35

Murray 0011X3MA

RING-E

$5.49

$

In Stock, Qty 17

0

43

Murray 711720MA

WASHER, FLAT

$1.99

$

Usually ships in 2-12 days

0

45

Murray 711719

SCREW, 1/4-20X .75

$1.49

$

Usually ships in 2-12 days

0

46

Murray 710249

WASHER, (18X32)

$

$

Currently unavailable
