46580x8A - Murray 46" Lawn Tractor (1999) Engine And Control Assembly Parts Diagram

46" Lawn Tractor

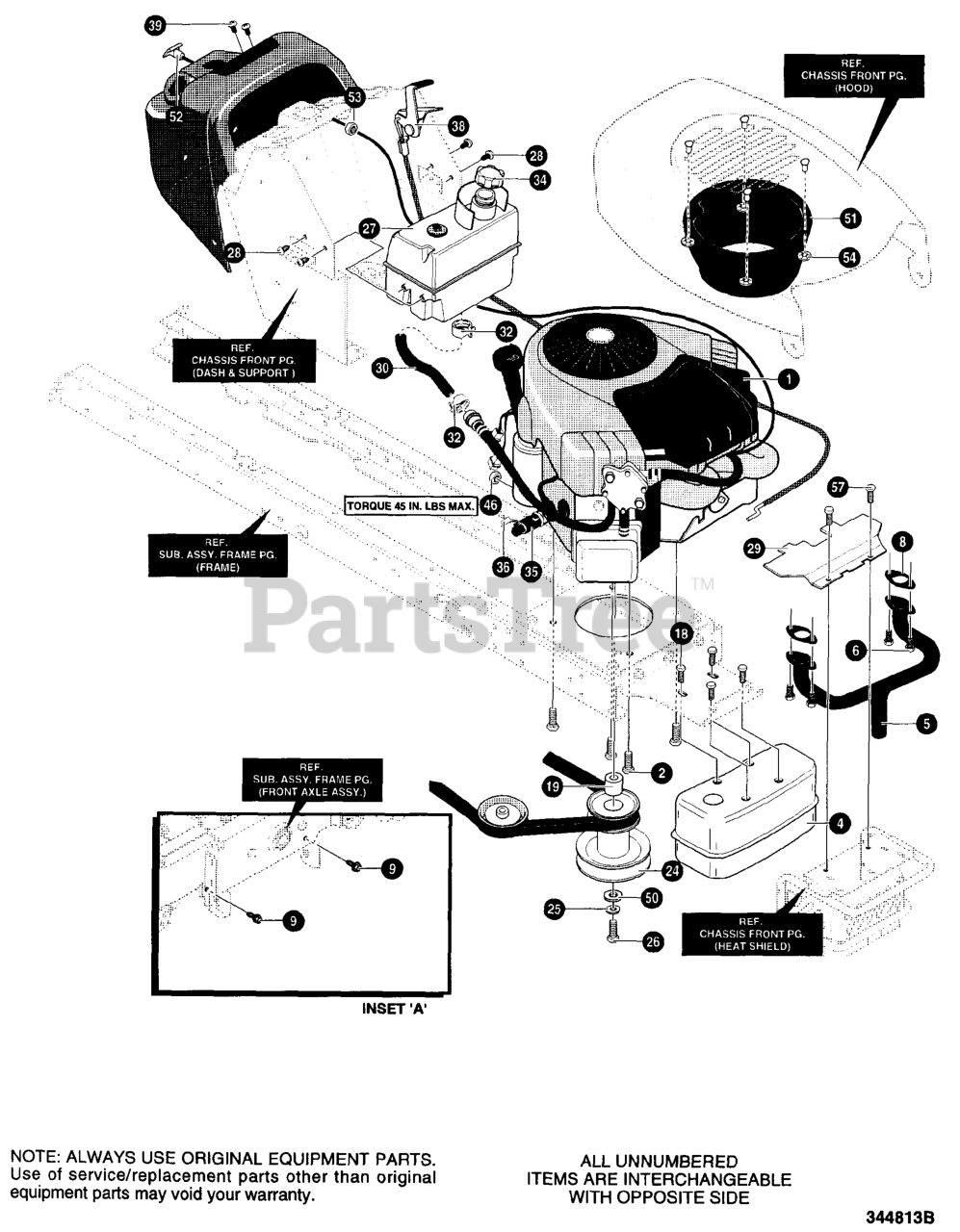

Engine And Control Assembly Parts Diagram

  • Title

1

ENGINE

$

$

Not available

2

Murray 710199

BOLT

$66.99

$

Usually ships in 2-12 days

0

4

Murray 094655MA

MUFFLER, TWIN-CYLINDER

$86.99

$

Usually ships in 2-12 days

0

5

Murray 95204

EXHAUST MANIFOLD

$110.99

$

Usually ships in 2-12 days

0

6

Murray 711852

SCREW

$5.99

$

Usually ships in 2-12 days

0

8

Murray 711881

GASKET

$

$

Currently unavailable

9

Murray 711606MA

SCREW

$7.99

$

In Stock, only 2 left!

0

18

Murray 711642MA

SCRW
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

19

Murray 093077MA

SPACER, SLEEVE

$15.99

$

In Stock, only 1 left!

0

24

Murray 95266

PULLEY, STACK
(Superseded to 95266GS)

$6.49

$

Usually ships in 2-12 days

0

25

Murray 120383

WASHER

$

$

Not available

26

Murray 710248

BOLT

$3.99

$

Usually ships in 2-12 days

0

27

Murray 094484

FUEL TANK

$

$

Not available

28

Murray 711681

SCREW

$1.99

$

Usually ships in 2-12 days

0

29

Murray 95250-821

SHIELD, HEAT

$11.99

$

Usually ships in 2-12 days

0

30

Murray 50118

TUBING

$

$

Currently unavailable

32

Murray 47245

CLAMP, FUEL LINE
(Superseded to 7047245YP)

$279.99

$

Usually ships in 2-12 days

0

34

Murray 092317MA

FUEL CAP

$10.99

$

In Stock, Qty 12

0

35

Murray 325547MA

OIL DRAIN VALVE ASSEMBLY

$

$

Not available

36

Murray 327422

CAP, OIL DRAIN VALVE

$

$

Not available

38

Murray 95261

THROTTLE CONTROL

$18.99

$

Usually ships in 2-12 days

0

39

Murray 711686

SCREW

$1.99

$

Usually ships in 2-12 days

0

46

Murray 711601

NUT, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

50

Murray 710247

WASHER

$8.49

$

Usually ships in 2-12 days

0

51

Murray 095325

PLENIUM

$

$

Currently unavailable

52

Murray 690353MA

CHOKE CONTROL

$34.99

$

Usually ships in 2-12 days

0

53

Murray 711906

NUT

$

$

Not available

54

Murray 711677

PUSHNUT

$8.49

$

Usually ships in 2-12 days

0

57

Murray 711660MA

SCREW
(Superseded to 44811MA)

$5.99

$

Usually ships in 2-12 days

0
