468600x43A - Yard King 46" Lawn Tractor (2004) Rear Chassis Parts Diagram

46" Lawn Tractor

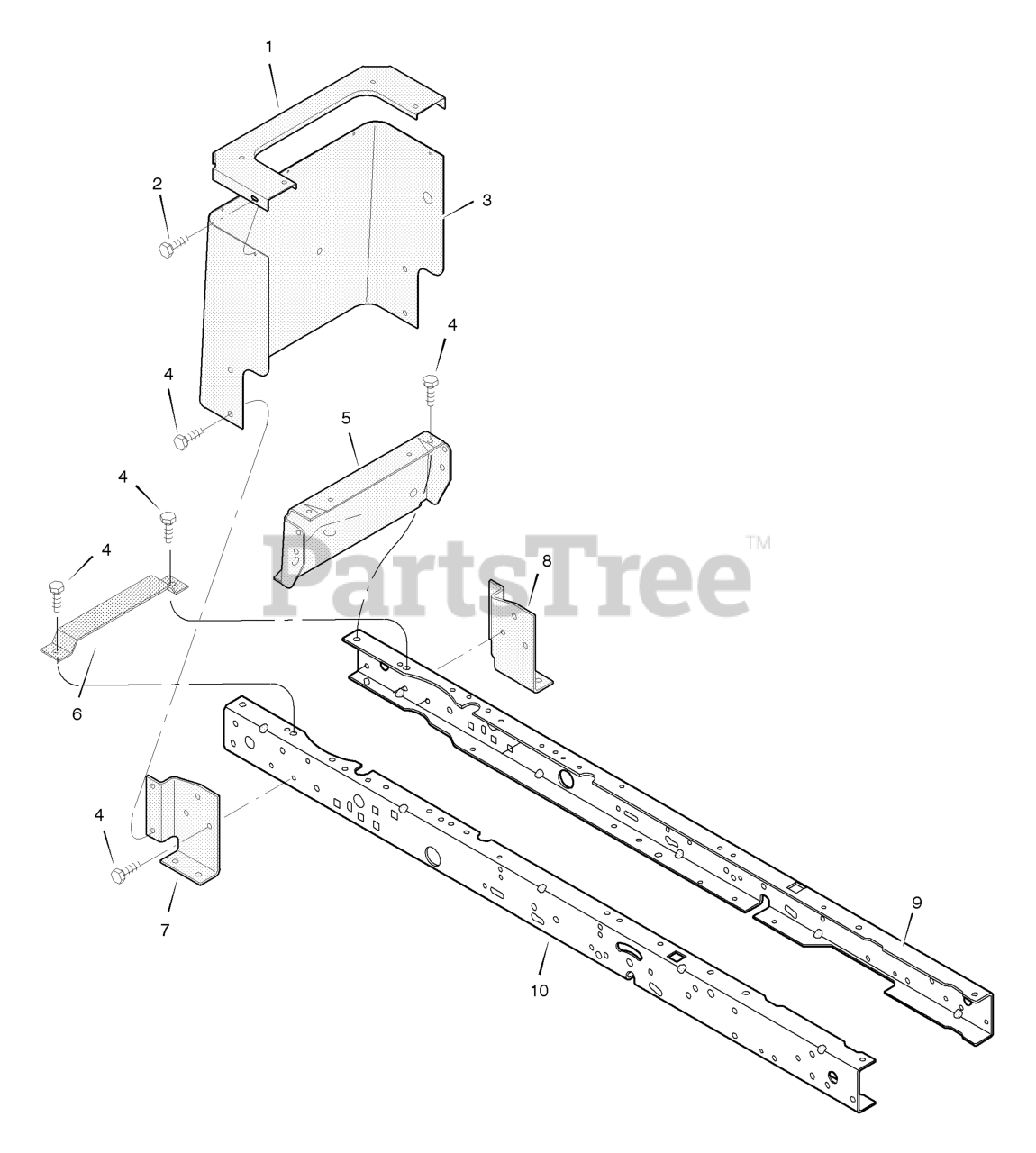

Rear Chassis Parts Diagram

  • Title

1

Murray 094186E549

Plate, Top Rear

$

$

Currently unavailable

2

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, only 3 left!

0

3

Murray 1001906E549

Plate, Rear

$

$

Currently unavailable

4

Murray 26X249MA

Screw

$

$

Not available

5

Murray 1001002E701

Plate, Hitch

$

$

Not available

6

Murray 690482E701

Bracket, Support

$

$

Not available

7

Murray 1001891E701

Bracket, Right Transaxle
(Superseded to 1001891E701MA)

$40.99

$

Usually ships in 2-12 days

0

8

Murray 1001890E701

Bracket, Left Transaxle
(Superseded to 1001890E701MA)

$40.99

$

Usually ships in 2-12 days

0

9

Murray 1001927E701

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

10

Murray 1001928E701MA

Frame, Right

$104.99

$

Usually ships in 2-12 days

0
