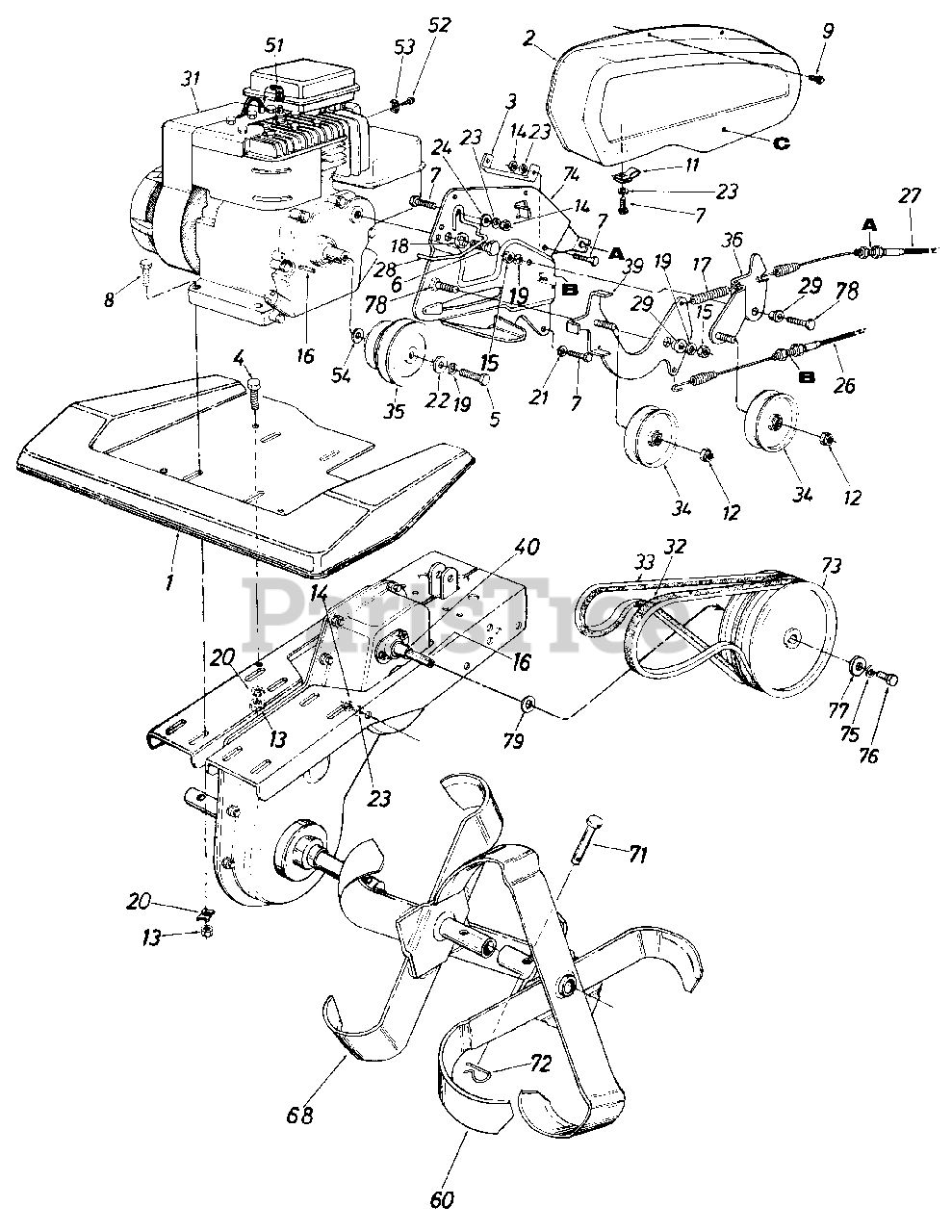

47-307-01 (218-381-036) - Long Life Tiller (1988) (Otasco) > Parts Diagrams (3) > Parts

  • Title
04598

1

Tine Shield

Part# 04598

OEM Warranty Repair Part for MTD

Variations

MTD/TROY-BILT RED (0638)

No Longer Available SHIELD-TIN

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

No Longer Available SHIELD-TIN

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

06796

2

Belt Guard

Part# 06796

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available GUARD-BELT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

06801

3

Support Brkt.

Part# 06801

OEM Warranty Repair Part for MTD

Currently unavailable

710-0118

4

Hex Bolt 5/16-18 x .75" Lg.*

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-0191

5

Hex Bolt 3/8-24 x 1.25" Lg.

Part# 710-0191

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97

710-0237

6

Hex Bolt 5/16-24 x .62" Lg.

Part# 710-0237

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0252

7

Hex Bolt 1/4-20 x .85" Lg.

Part# 710-0252 (Superseded to 710-3015)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.68

710-0442

8

Hex Bolt 5/16-18 x 1.5" Lg.

Part# 710-0442 (Superseded to 710-0805A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

710-0599

9

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-0783

Hex Wash. Hd. Sloted Scr. #8-32 x .38"

Part# 710-0783

OEM Warranty Repair Part for MTD

Not available

712-0185

11

Speed Nut 1/4-20 Thd.

Part# 712-0185

OEM Warranty Repair Part for MTD

Not available

712-0262

12

Hex L-Nut 3/8-24 Thd.

Part# 712-0262

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

712-0267

13

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

712-0287

14

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

712-0375

15

Hex L-Nut 3/8-16 Thd.

Part# 712-0375

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

714-0133

16

Sq. Key 3/16 x 1.5" Lg.

Part# 714-0133 (Superseded to 914-0133)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

732-0209

17

Extension Spring 2.03 Lg.

Part# 732-0209 (Superseded to 932-0209)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.13

736-0119

18

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0169

19

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.47

736-0170

20

Spec. L-Wash. 5/16" I.D.

Part# 736-0170 (Superseded to 936-0170)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.27

736-0175

21

Spr. Wash. .265" I.D. x .562" O.D.

Part# 736-0175 (Superseded to 936-0175)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.58

736-0258

22

Fl-Wash. 3/8" I.D. x 1" O.D. x 1.27"

Part# 736-0258

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0329

23

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-0463

24

Fl-Wash. .25.1.D. x .62 O.D.

Part# 736-0463 (Superseded to 936-0463)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-0152

Hex Bolt 3/8-24 x 1 " Lg.(Grade 5)

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

746-0622

26

Clutch Control Cable

Part# 746-0622

Note: (Reverse)

OEM Warranty Repair Part for MTD

Not available

746-0621

27

Clutch Control Cable

Part# 746-0621 (Superseded to 946-0621B)

Note: (Forward)

OEM Warranty Repair Part for MTD

Not available

747-0181

28

Belt Guard Rod

Part# 747-0181

OEM Warranty Repair Part for MTD

Currently unavailable

738-0372

29

Shld. Spacer .380 I.D.

Part# 738-0372 (Superseded to 738-0372B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.44

751-0233

Muffler Deflector

Part# 751-0233 (Superseded to BS-796956)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.42

31

Engine

Part#

Not available

754-0201

32

V-Belt

Part# 754-0201 (Superseded to 954-0201)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $25.87

754-0154

33

V-Belt

Part# 754-0154 (Superseded to 954-0154)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $29.82

756-0225

34

Fl-ldler w/Flanges 3.12 O.D. x .75

Part# 756-0225

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $21.31

756-0261

35

Engine Pulley

Part# 756-0261

OEM Warranty Repair Part for MTD

Currently unavailable

784-0267

36

Idler Brkt. Ass'y.

Part# 784-0267

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available BRACKET AS

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

784-0251

39

Reverse Idler Brkt. Ass'y.

Part# 784-0251

OEM Warranty Repair Part for MTD

Not available

750-0229

40

Spacer .635 I.D.

Part# 750-0229 (Superseded to 950-0229)

OEM Warranty Repair Part for MTD

Not available

735-0639

51

Spark Plug Boot

Part# 735-0639

Note: (Optional)

OEM Warranty Repair Part for MTD

Not available

710-0899

52

Hex Sems Scr. #10-32 x .62" Lg.

Part# 710-0899 (Superseded to 710-0899A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.36

751-0360

53

Casing Clamp

Part# 751-0360 (Superseded to 751B221535)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.61

736-0315

54

Fl-Wash. .75" I.D. x 1.5" O.D. x .12"

Part# 736-0315

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.40

784-0093

60

Outer Tine Ass'y. Comp.

Part# 784-0093

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available TINE ASM-

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

784-0094

Outer Tine Ass'y. Comp. R.H.

Part# 784-0094

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Outer Tine Ass'y. Comp. - R.H.

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $77.76

784-0091

68

Inner Tine Ass'y.L.H.

Part# 784-0091

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Inner Tine Ass'y. Comp. - L.H.

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

784-0092

Inner Tine Ass'y. R.H.

Part# 784-0092

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Inner Tine Ass'y. Comp. - R.H.

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

1545-029

71

Clevis Pin

Part# 1545-029 (Superseded to 711-0679A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $9.19

714-0149

72

Intern. Coter Pin

Part# 714-0149 (Superseded to 914-0149B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.91

756-0262

73

Transmission Pulley 6" Dia.

Part# 756-0262

OEM Warranty Repair Part for MTD

Currently unavailable

784-0269

74

Clutch Mtg. Plate

Part# 784-0269

OEM Warranty Repair Part for MTD

Not available

736-0119

75

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0643

76

Patch Bolt 5/16-18 x 1" Lg.

Part# 710-0643

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.44

736-0231

77

Fl-Wash. 5/16" I.D.

Part# 736-0231 (Superseded to 936-0231)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97

710-0152

78

Hex Bolt 3/8-24 x 1.0" Lg.(Grade 5)

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0187

79

Fl-Wash. .635" I.D. x 1.25" O.D.

Part# 736-0187

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94
