47166 - Gravely 36" Deck for Pro-Walk Mower

36" Deck for Pro-Walk Mower

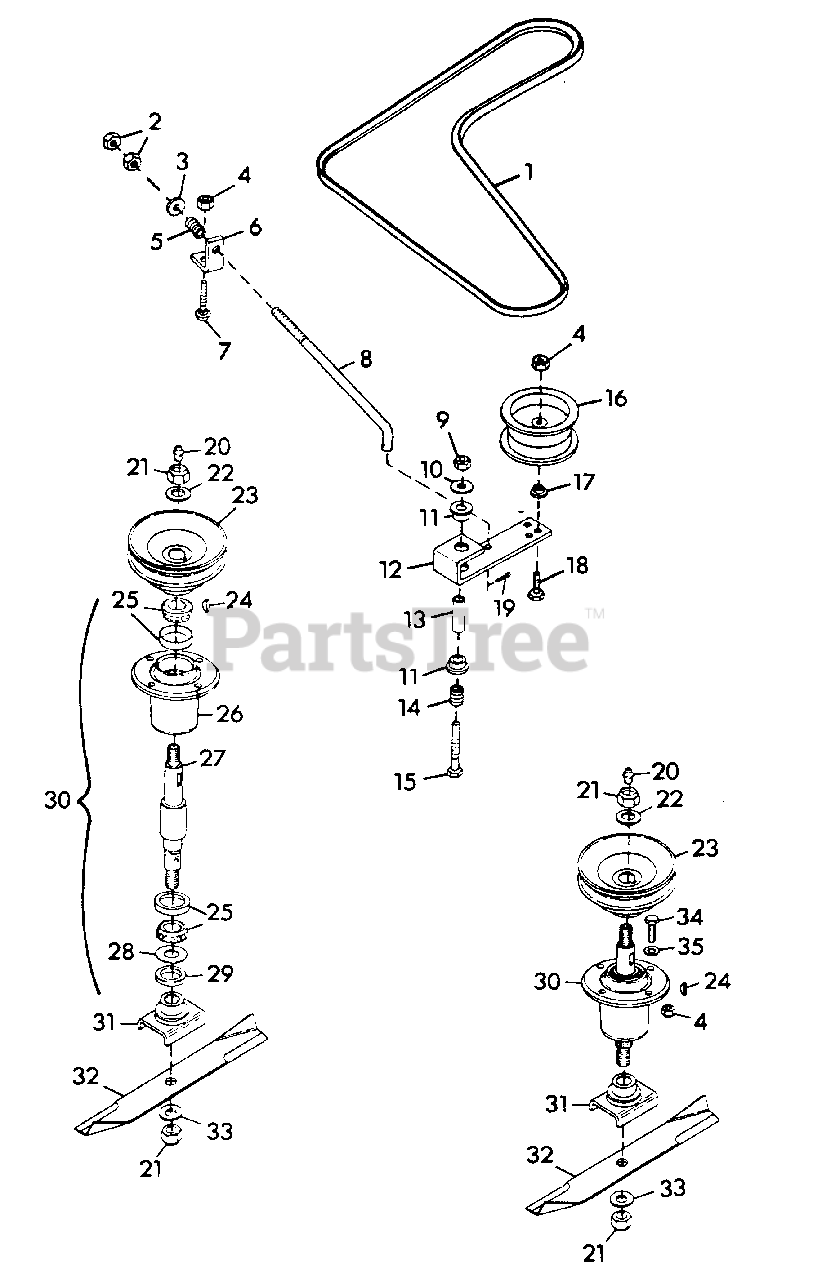

47166 - Gravely 36" Deck for Pro-Walk Mower > Parts Diagrams (2) > MOWER DRIVE

  • Title
043894

1

Belt, Pro-36 Mower

Part# 043894 (Superseded to 07238200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $43.38

120369

2

Nut, Hex 3/8-24

Part# 120369 (Superseded to 06522900)

OEM Warranty Repair Part for Gravely

Not available

120394

3

Washer, Flat .406x.812x.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

456004

4

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

011779

5

Spring, Compression 1x.78x338

Part# 011779 (Superseded to 08327000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $12.24

034287

6

Bracket, Belt Tensioner

Part# 034287 (Superseded to 08802700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $34.38

180121

7

Bolt, Hex 3/8-16x.875

Part# 180121 (Superseded to 05932600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

021112

8

Rod, Idler

Part# 021112 (Superseded to 03351200)

OEM Warranty Repair Part for Gravely

Not available

414074

9

Nut, Lock 1/2-13

Part# 414074 (Superseded to 06536300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

415543

10

Washer, Flat .531x1.250x.100

Part# 415543 (Superseded to 06441000)

OEM Warranty Repair Part for Gravely

Not available

010174

11

Bushing, Nylon .76x1.00x.600 Flg.

Part# 010174 (Superseded to 05518400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

034120

12

Arm, Idler Pivot

Part# 034120 (Superseded to 08905900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $81.11

034119

13

Spacer

Part# 034119 (Superseded to 08820500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.70

020444

14

Spring, Compression 1x.80x36

Part# 020444 (Superseded to 08329100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $13.36

180191

15

Bolt, Hex 1/2-13x3.25

Part# 180191 (Superseded to 05960000)

OEM Warranty Repair Part for Gravely

Not available

034286

16

Pulley, Idler

Part# 034286 (Superseded to 07327800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $67.02

024815

17

Bushing

Part# 024815 (Superseded to 05515800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

180132

18

Bolt, Hex 3/8-16x2.25

Part# 180132 (Superseded to 05962900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

121222

19

Pin, Cotter .09x.75

Part# 121222 (Superseded to 06706900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

411010

20

Fitting, Lube 1/8

Part# 411010 (Superseded to 07012500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

418692

21

Nut, Lock 5/8-11

Part# 418692 (Superseded to 06540700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

033845

22

Washer, Flat .687x1.312x.122

Part# 033845 (Superseded to 06427400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

034936

23

Sheave, Spindle

Part# 034936 (Superseded to 08804400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $127.90

124553

24

Key, Woodruff 1/4x1 Hard #15

Part# 124553 (Superseded to 06608900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

038199

25

Assembly, Bearing

Part# 038199 (Superseded to 21245800)

OEM Warranty Repair Part for Gravely

Not available

021215

26

Housing, Bearing

Part# 021215 (Superseded to 08722700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $116.16

034603

27

Shaft, Spindle

Part# 034603 (Superseded to 58802900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $110.63

020743

28

Washer, Flat .975x1.970x.030

Part# 020743 (Superseded to 06426900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

021211

29

Seal, Steel

Part# 021211 (Superseded to 08722600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $15.21

034605

30

Assembly, Spindle

Part# 034605 (Superseded to 58803600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $212.36

023026

31

Weldment, Blade Cradle

Part# 023026 (Superseded to 08798300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $107.66

042124

32

Blade, 36" Mower

Part# 042124 (Superseded to 08816600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

131016

33

Washer, Flat .656x1.312x.095

Part# 131016 (Superseded to 06442800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

180124

34

Bolt, Hex 3/8-16x1.25

Part# 180124 (Superseded to 05958000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

120388

35

Washer, Flat .438x1.00x.083

Part# 120388 (Superseded to 06435900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40
