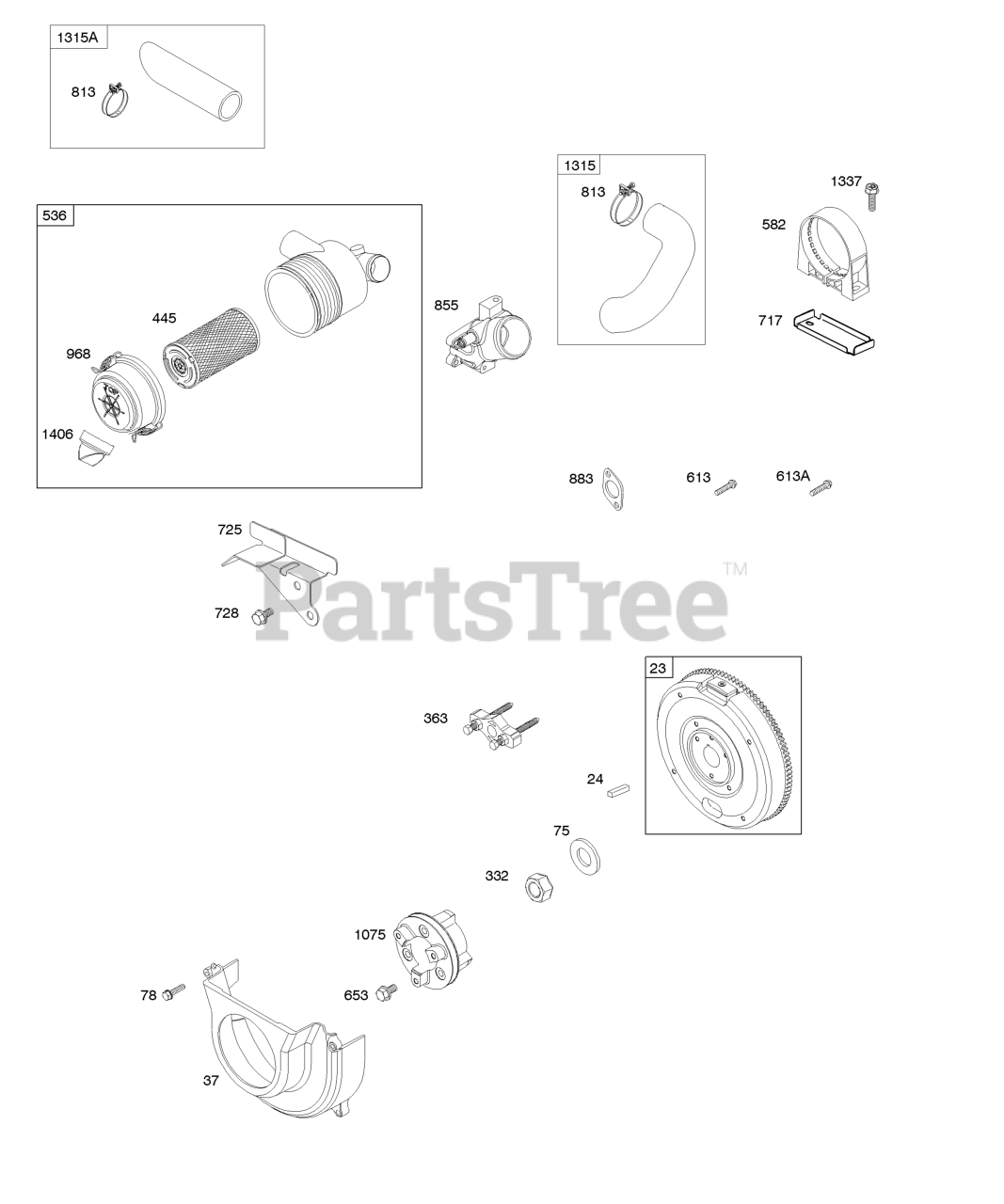

472177-0100-E1 - Briggs & Stratton Horizontal Engine Air Cleaner, Flywheel Parts Diagram

Horizontal Engine

Air Cleaner, Flywheel Parts Diagram

  • Title

23

Briggs & Stratton 841294

Flywheel

Note: (Steel Ring Gear)

$397.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 807332

Guard-Flywheel

$130.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 842548

Washer
(Superseded to 844795)

Note: (Flywheel)

$15.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 807421

SCREW

Note: (Flywheel Guard)

$3.49

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 842222

Nut
(Superseded to 844795)

Note: (Flywheel)

$15.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

445

Briggs & Stratton 820263

Filter-Air Cleaner Cartridge

$27.99

$

In Stock, only 2 left!

0

536

Briggs & Stratton 825118

Cleaner-Air

$193.99

$

Usually ships in 2-12 days

0

582

Briggs & Stratton 807381

Clamp-Air Cleaner

$70.99

$

In Stock, only 1 left!

0

613

Briggs & Stratton 809743

Screw
(Superseded to 846149)

Note: (Muffler) (M8x25mm Long)

$4.49

$

In Stock, only 3 left!

0

613A

Briggs & Stratton 692062

Screw

Note: (Muffler) (M8X18mm Long)

$3.49

$

In Stock, only 3 left!

0

653

Briggs & Stratton 809528

Screw

Note: (Crankshaft Pulley) (5/16x65mm Long)

$3.49

$

Usually ships in 2-12 days

0

717

Briggs & Stratton 841886

Bracket-Air Cleaner

$17.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 841282

Shield-Heat

$89.99

$

Usually ships in 2-12 days

0

728

Briggs & Stratton 692062

Screw

Note: (Heat Shield)

$3.49

$

In Stock, only 3 left!

0

813

Briggs & Stratton 807377

Clamp

Note: (58mm ID)

$6.49

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 807376

Clamp

Note: (65mm ID)

$6.49

$

In Stock, only 1 left!

0

855

Briggs & Stratton 807355

Adapter-Air Cleaner

$109.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 807326

Gasket-Exhaust

Note: (Manifold to Head)

$9.49

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 842620

Cover-Air Cleaner

$83.99

$

Usually ships in 2-12 days

0

1075

Briggs & Stratton 841293

Pulley-Crankshaft

$81.99

$

Usually ships in 2-12 days

0

1315

Briggs & Stratton 807379

Hose-Air Cleaner

$38.99

$

Usually ships in 2-12 days

0

1315A

Briggs & Stratton 807380

Hose-Air Cleaner

$61.99

$

Usually ships in 2-12 days

0

1337

Briggs & Stratton 807382

Screw

Note: (Air Cleaner Clamp)

$3.49

$

Usually ships in 2-12 days

0

1406

Briggs & Stratton 842623

Valve-Debris

$20.99

$

In Stock, only 1 left!

0
