473177-0114-E1 - Briggs & Stratton Horizontal Engine Alternator, Ignition, Springs, Electric Starter, Controls Parts Diagram

Horizontal Engine

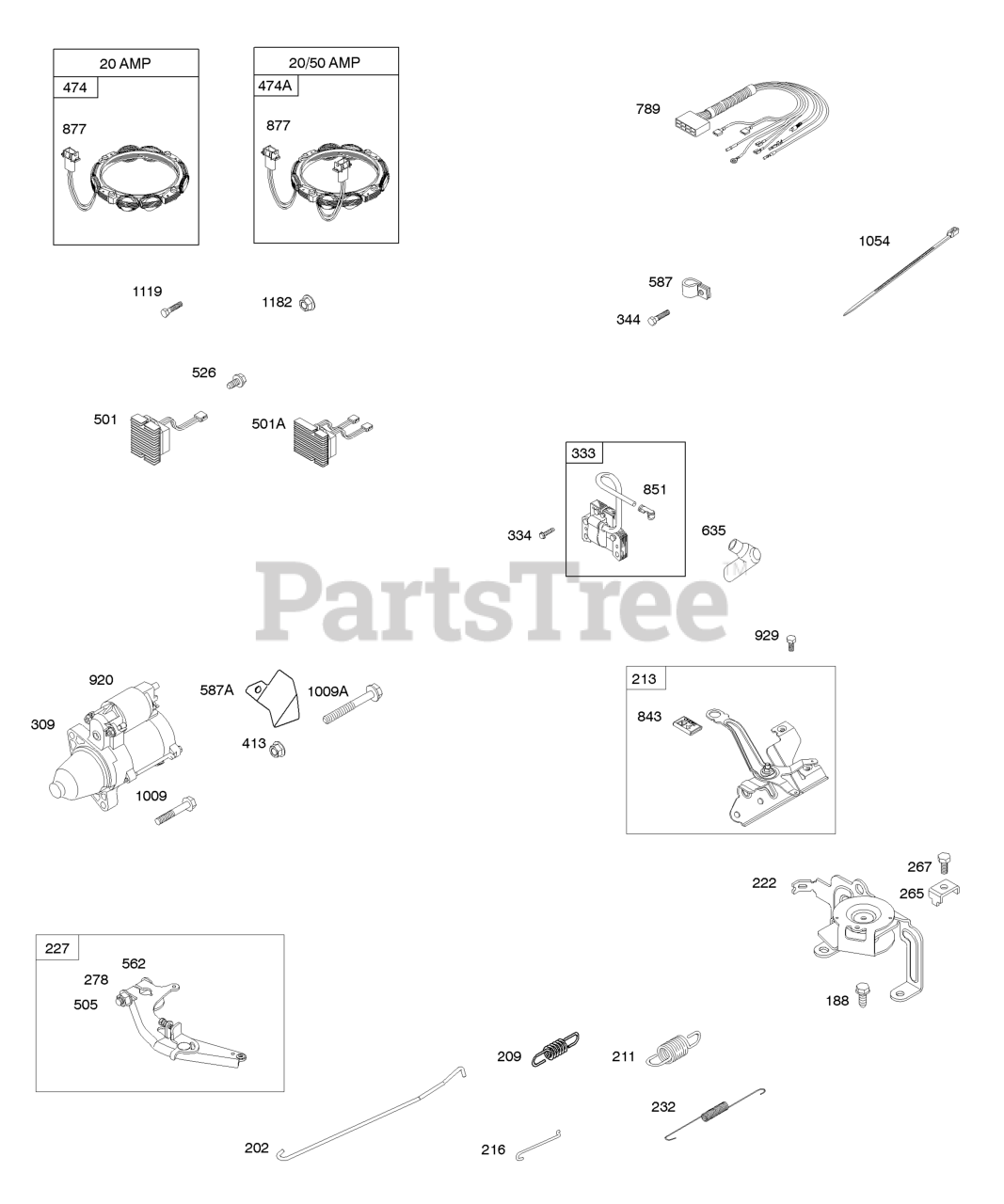

Alternator, Ignition, Springs, Electric Starter, Controls Parts Diagram

  • Title

20

Briggs & Stratton 841596

SEAL, Oil

Note: (PTO Side) (Lower) (Crankshaft)

$17.99

$

In Stock, only 4 left!

0

188

Briggs & Stratton 692539

Screw
(Superseded to 841233)

Note: (Control Bracket)

$3.49

$

In Stock, only 2 left!

0

202

Briggs & Stratton 807358

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 842315

Spring-Governor

Note: (Dark Green)

$8.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 842316

Spring-Governed Idle

$7.49

$

Usually ships in 2-12 days

0

213

Briggs & Stratton 809660

Bracket-Choke Control

$76.99

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 807342

Link-Choke

$7.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 809273

Bracket-Control
(Superseded to 807329)

$37.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 809274

Lever-Governor Control

$37.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 691538

Spring-Governor Link

$9.49

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

278

Briggs & Stratton 842122

Washer

Note: (Governor Control Lever)

$5.49

$

In Stock, only 1 left!

0

309

Briggs & Stratton 807383

Motor-Starter
(Superseded to 845760)

Note: (DC)(10-16 AMP)

$238.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 841279

Armature-Magneto
(Superseded to 843860)

Note: Used Before Code Date 06122800

$118.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 843327

Armature-Magneto
(Superseded to 845126)

Note: Used After Code Date 06122700

$63.99

$

In Stock, Qty 6

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 11

0

344

Briggs & Stratton 692539

Screw
(Superseded to 841233)

Note: (Cable Clamp)

$3.49

$

In Stock, only 2 left!

0

474

Briggs & Stratton 696579

Alternator

Note: (20 Amp)

$107.99

$

In Stock, Qty 6

0

501

Briggs & Stratton 691573

Regulator
(Superseded to 84004837)

Note: (20 Amp)

$99.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 690238

Nut

Note: (Governor Control Lever)

$3.49

$

In Stock, only 1 left!

0

526

Briggs & Stratton 807385

Screw

Note: (Regulator)

$3.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 690239

Bolt

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 807386

Clamp-Cable

$3.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 8

0

789

Briggs & Stratton 807324

Harness-Wiring

$45.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 809672

Sleeve-Lever

$4.49

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 698092

Wire/Connector-Alternator

$15.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 825418

Solenoid-Starter

$

$

Not available

929

Briggs & Stratton 692539

Screw
(Superseded to 841233)

Note: (Choke Control Bracket)

$3.49

$

In Stock, only 2 left!

0

1009

Briggs & Stratton 690711

Screw

Note: (Starter Motor) (M8x38mm Long)

$6.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 807340

Tie-Cable
(Superseded to 280275)

$4.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$3.99

$

In Stock, only 2 left!

0

1182

Briggs & Stratton 842067

NUT

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0
