47383 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Electric Start Electrical System - Electric Start Models Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Electric Start

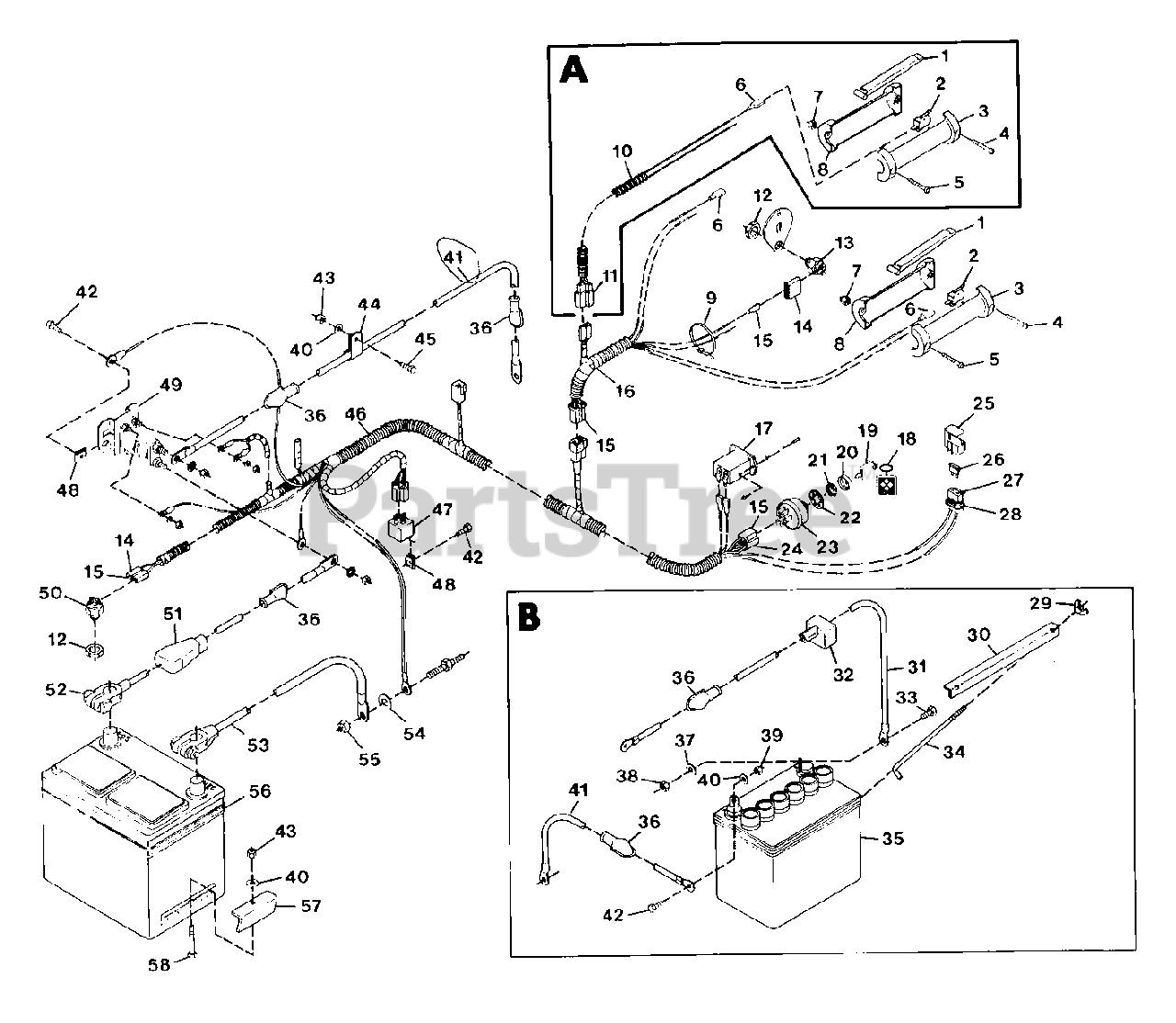

Electrical System - Electric Start Models Parts Diagram

  • Title

1

Gravely 046822

LEVER
(Superseded to 08602200)

$46.99

$

Usually ships in 4-12 days

0

2

Gravely 046823

SWITCH
(Superseded to 08828300)

$

$

Not available

3

Gravely 046820

KIT, OPER.PRES.HNDL/INSRT,UNIV
(Superseded to 78802700)

$118.99

$

Usually ships in 4-12 days

0

4

Gravely 159947

SCR-MCH 10-24X.75 PHD
(Superseded to 06111200)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 159967

SCR-MCH 10-24X1.50 PH YWZC
(Superseded to 06118300)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 046988

TERMINAL,FEMALE
(Superseded to 08828400)

$

$

Not available

7

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 046821

KIT, OPER.PRES.HNDL/INSRT,UNIV
(Superseded to 78802700)

$118.99

$

Usually ships in 4-12 days

0

9

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 047307

HRNS,STEERING BRAKE
(Superseded to 08567100)

$

$

Not available

11

Gravely 038057

CONNECTOR
(Superseded to 20645000)

$

$

Not available

12

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 051919

SWITCH,INTERLOCK CLOSED
(Superseded to 08571900)

$

$

Not available

14

Gravely 051920

TERMINAL,EYELET
(Superseded to 08572000)

$

$

Not available

15

Gravely 038059

TERMINAL
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

16

Gravely 047306

HRNS,WIRING HANDLEBAR
(Superseded to 08567001)

$

$

Not available

17

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 17

0

18

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

19

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

20

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

21

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

22

Gravely 019667

WSHR-LK-INT .563X.040 YWZC
(Superseded to 06310900)

$2.49

$

In Stock, only 1 left!

0

23

Gravely 019223

IGNITION SWITCH WITH KEY
(Superseded to 59211800)

$70.99

$

In Stock, Qty 9

0

24

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$8.49

$

In Stock, only 3 left!

0

25

Gravely 045921

COVER
(Superseded to 20822800)

$

$

Not available

26

Gravely 045037

FUSE,25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

27

Gravely 045923

TERM.,FOR 10-12 GA WIRE
(Superseded to 20823001)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 045920

ASM,CONN WEATHER TIGHT
(Superseded to 20822700)

$

$

Not available

29

Gravely 010413

NUT-LK WING .250-20 YWZC
(Superseded to 06537500)

$5.49

$

In Stock, Qty 20+

0

30

Gravely 015258

HOLD DOWN
(Superseded to 03494051)

$11.99

$

In Stock, only 4 left!

0

31

Gravely 041815

CBL,BATT.TO SOLONOID 8HP
(Superseded to 08547300)

Note: (8 HP)

$

$

Not available

32

Gravely 033846

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 2 left!

0

33

Gravely 180075

BLT-HEX .31-18X.63 GR5 YWZC
(Superseded to 05901832)

$1.99

$

Usually ships in 4-12 days

0

34

Gravely 015257

TIE DOWN
(Superseded to 03494100)

$30.99

$

Usually ships in 4-12 days

0

35

Gravely 030610

BATTERY

Note: (8 HP)

$

$

Not available

36

Gravely 033847

BOOT, INSULATOR
(Superseded to 03384700)

Note: (10, 12 and 16 HP)

$

$

Not available

Boot, Battery Cable (8 HP)

Note: (8 HP)

$

$

Not available

37

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 417954

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

39

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

40

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 041815

CBL,BATT.TO SOLONOID 8HP
(Superseded to 08547300)

Note: (10,12 and 16 HP)

$

$

Not available

Gravely 041814

CABLE, GROUND
(Superseded to 03492400)

Note: (8 HP)

$

$

Not available

42

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

Note: (10,12 and 16 HP)

$2.49

$

Usually ships in 4-12 days

0

Bolt, Hex 1/4-20x.625 (8 HP)

Note: (8 HP)

$

$

Not available

43

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

44

Gravely 035313

CABLE CLAMP
(Superseded to 03334000)

$

$

Not available

45

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

46

Gravely 051899

HRNS,16-HP ELECT B&S
(Superseded to 08571201)

Note: (10,12 and 16HP)

$181.99

$

In Stock, only 1 left!

0

Gravely 045598

HRNS,8-HP ELECT.
(Superseded to 08571000)

Note: (8 HP)

$

$

Not available

47

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

48

Gravely 011676

NUT-SPEED .25-20
(Superseded to 07016800)

$

$

Not available

49

Gravely 045077

CNTRL,PTO
(Superseded to 08962900)

$

$

Not available

50

Gravely 051918

SWITCH,INTERLOCK OPEN
(Superseded to 08571800)

$59.99

$

In Stock, only 3 left!

0

51

Gravely 034466

CVR,BATTERY TERMINAL
(Superseded to 07523100)

$

$

Not available

52

Gravely 011033

CBL,BAT-TO-MAG SWTCH26.0
(Superseded to 08582200)

$

$

Not available

53

Gravely 040410

CBL,NEG BATTERY
(Superseded to 08542000)

Note: (10, 12 and 16 HP)

$

$

Not available

54

Gravely 120395

WSHR-FL-STL .469X.938X.065
(Superseded to 06429400)

$

$

Not available

55

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

56

Gravely 042597

Note: (10, 12 and 16 HP)

$

$

Not available

57

Gravely 037742

CLAMP
(Superseded to 08539500)

Note: (8 HP)

$23.99

$

Usually ships in 4-12 days

0

58

Gravely 180044

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

In Stock, only 3 left!

0

NS

Gravely 011989

DECAL,E-SYSTEM WARNING
(Superseded to 05216700)

$10.99

$

Usually ships in 4-12 days

0

59

Gravely 044321

CABLE TIE .187 X 11 50022830
(Superseded to 02589600)

$

$
