47383 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Electric Start FRAME Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Electric Start

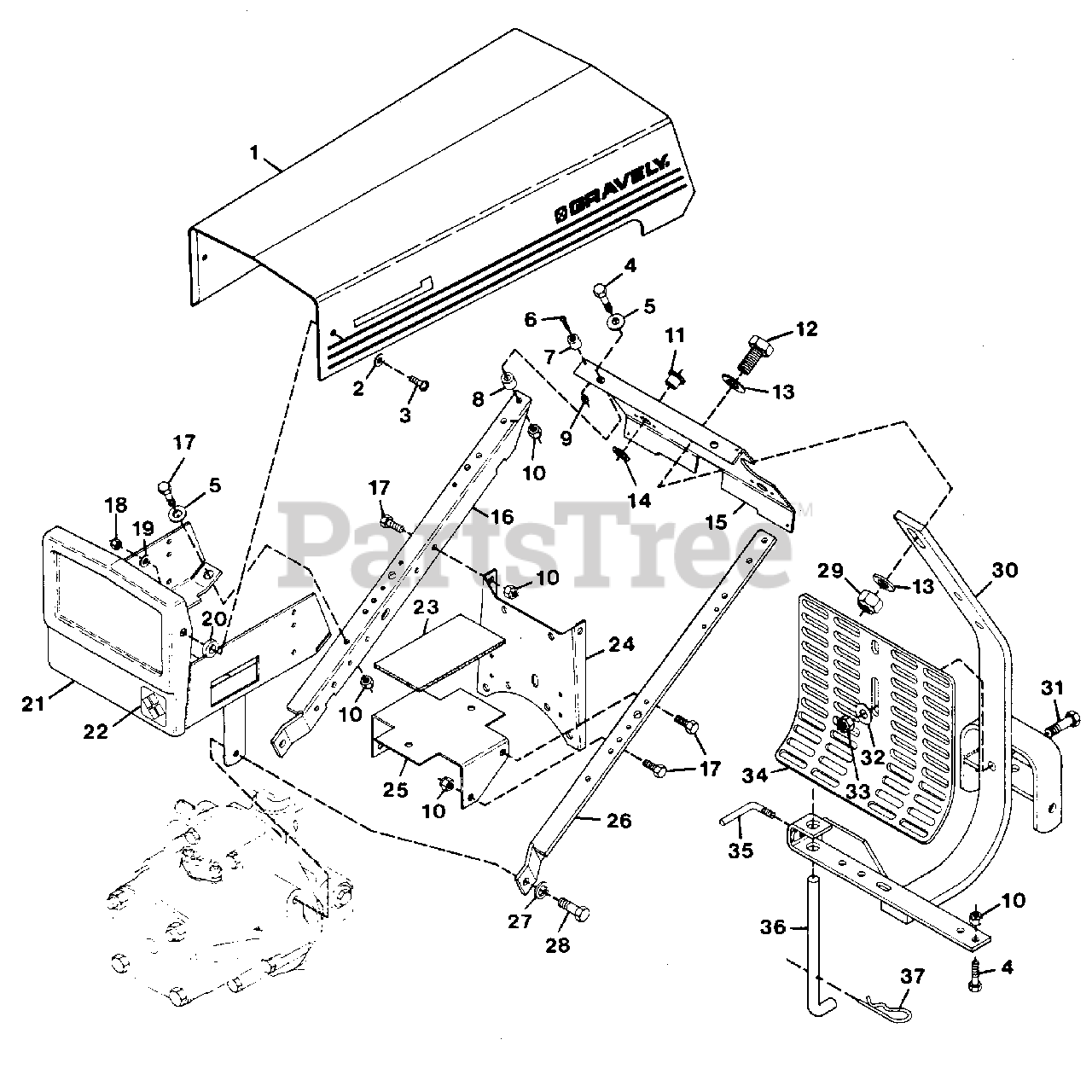

FRAME Parts Diagram

  • Title

1

Gravely 041651

HOOD & DECAL 12HP (2-WHEEL)
(Superseded to 68513000)

$

$

Not available

2

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 160556

SCR-MCH .250-20X1
(Superseded to 06113600)

$

$

Not available

4

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

5

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 159341

SCR-MCH 6-32X.625
(Superseded to 06110700)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 018183

BUMPER
(Superseded to 07017400)

$

$

Not available

8

Gravely 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

$6.49

$

In Stock, Qty 20+

0

9

Gravely 427254

NUT-LK-NYL 6-32 W/INSRT YWZC
(Superseded to 06538900)

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 271723

BLT-HEX .62-11X2.00 GR5 YWZC
(Superseded to 05968100)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 421879

WSHR-FL-STL .656X1.250X.10 YZC
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 034237

RING, RETAINING

$

$

Not available

15

Gravely 046261

INST PANEL W/ DECAL
(Superseded to 58500900)

$

$

Not available

15

Gravely 046258

INST PANEL W/ DECAL
(Superseded to 58500800)

$

$

Not available

15

Gravely 044657

INST PANEL W/ DECAL
(Superseded to 58500800)

$

$

Not available

16

Gravely 040618

SPRT,HANDLE BAR R.H.
(Superseded to 08543100)

$

$

Not available

17

Gravely 180121

BLT-HEX .38-16X.875 GR5 YWZC
(Superseded to 05932600)

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

19

Gravely 446354

WSHR-FL-STL .313X.875X.065
(Superseded to 06430700)

$

$

Not available

20

Gravely 041622

BUSH.,F.280X.750X.318 NY
(Superseded to 08567200)

$23.99

$

Usually ships in 4-12 days

0

21

Gravely 045597

WLDMT,BATTERY BRACKET
(Superseded to 08561100)

$

$

Not available

22

Gravely 010697

DECAL,COMM. FRONT
(Superseded to 05216500)

$

$

Not available

23

Gravely 041075

PAD,GAS TANK
(Superseded to 08602600)

$

$

Not available

24

Gravely 040629

BRKT
(Superseded to 08543300)

$

$

Not available

25

Gravely 041997

BRKT,TANK SUPPORT
(Superseded to 08548500)

$22.99

$

Usually ships in 4-12 days

0

26

Gravely 040619

SPRT,HANDLE BAR L.H.
(Superseded to 08543200)

$

$

Not available

27

Gravely 120384

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 180173

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

29

Gravely 418692

NUT-LK-NYL .625-11 YWZC
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

30

Gravely 040819

WLDMT,HITCH 10&12 HP
(Superseded to 08544200)

$

$

Not available

31

Gravely 180177

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

32

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

33

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

34

Gravely 047190

GRD,ENGINE
(Superseded to 08566900)

$

$

Not available

35

Gravely 013457

HNDL,ADJUSTING
(Superseded to 08597900)

$53.99

$

Usually ships in 4-12 days

0

36

Gravely 034062

STAND,KICK
(Superseded to 08536500)

$

$

Not available

37

Gravely 010405

PIN-HAIR-INT .15X2.937 YWZC
(Superseded to 06714000)

$3.49

$

In Stock, only 1 left!

0

NS

Gravely 044129

DECAL,10
(Superseded to 05211700)

$

$

Not available

NS

Gravely 044130

DECAL,12
(Superseded to 05211800)

$

$

Not available

NS

Gravely 044131

DECAL,16
(Superseded to 05211900)

$

$

Not available

NS

Gravely 044074

GRAVELY NAME/LOGO/STRIPE DECAL
(Superseded to 07703800)

$

$

Not available

NS

Gravely 043003

DECAL,GRAVELY LOGO
(Superseded to 05210700)

$

$

Not available

NS

Gravely 043417

DECAL,6 LEAD
(Superseded to 05211200)

$

$

Not available

NS

Gravely 043418

DECAL,8 LEAD
(Superseded to 05211300)

$

$

Not available

NS

Gravely 044075

DECAL,PROFESSIONAL
(Superseded to 20802400)

$

$

Not available
