47383 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Electric Start SOUND SHROUD Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Electric Start

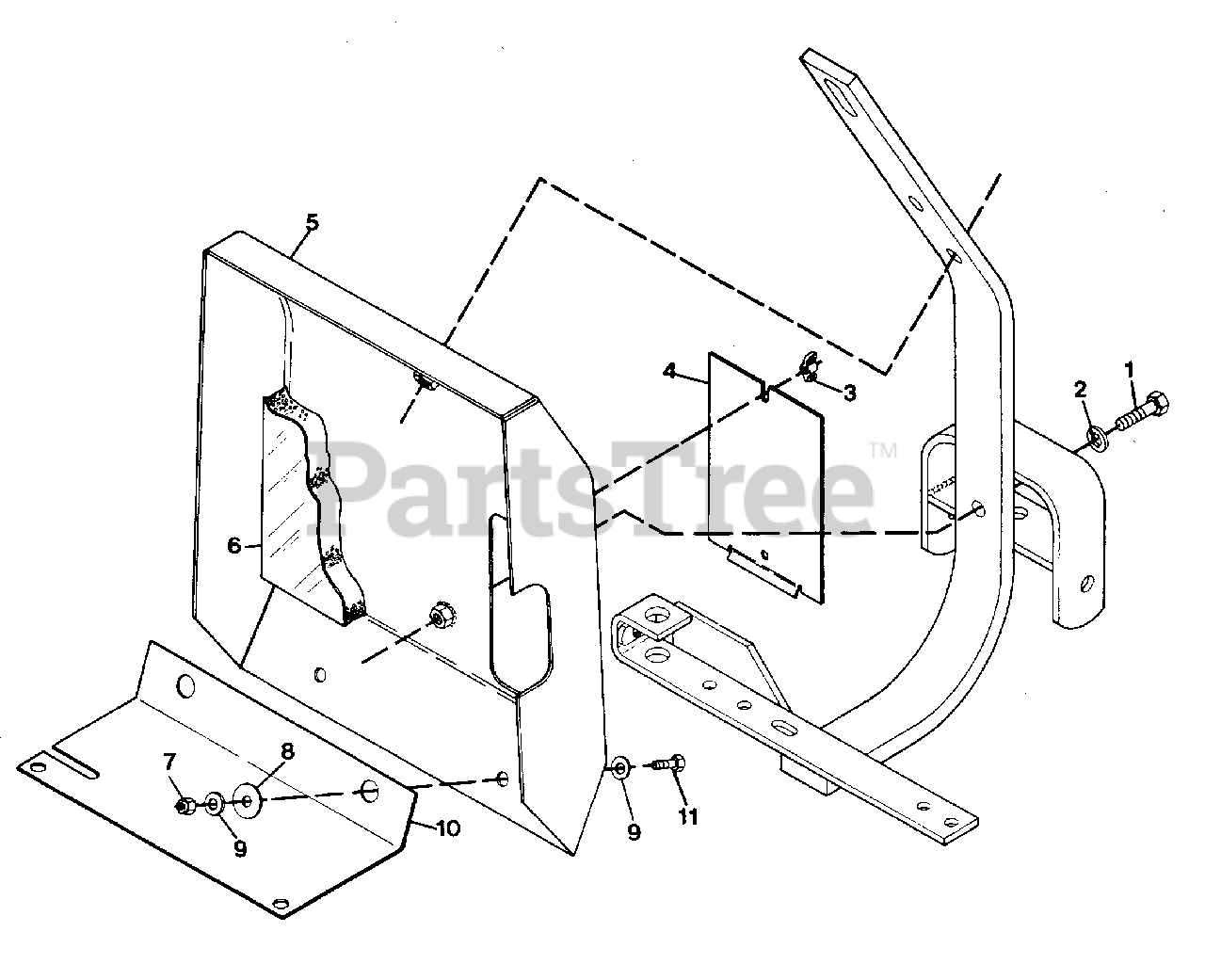

SOUND SHROUD Parts Diagram

  • Title

1

Gravely 180175

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

2

Gravely 120384

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 010413

NUT-LK WING .250-20 YWZC
(Superseded to 06537500)

$5.49

$

In Stock, Qty 20+

0

4

Gravely 044803

PLT,SILK SCREEN
(Superseded to 08558700)

$

$

Not available

5

Gravely 044596

WLDMT,SOUND SHROUD
(Superseded to 08557600)

$

$

Not available

6

Gravely 044648

FOAM,DOOR
(Superseded to 08601800)

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 044649

FOAM,MIDDLE
(Superseded to 08601900)

$

$

Not available

6

Gravely 044650

FOAM,R.H.
(Superseded to 08602000)

$

$

Not available

6

Gravely 044651

FOAM,L H
(Superseded to 08602100)

$41.99

$

Usually ships in 4-12 days

0

7

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

8

Gravely 012694

WSHR-FL-STL .281X1.250X.048PL
(Superseded to 06403700)

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 045183

SCRN,SOUND
(Superseded to 08559800)

$

$

Not available

11

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0
