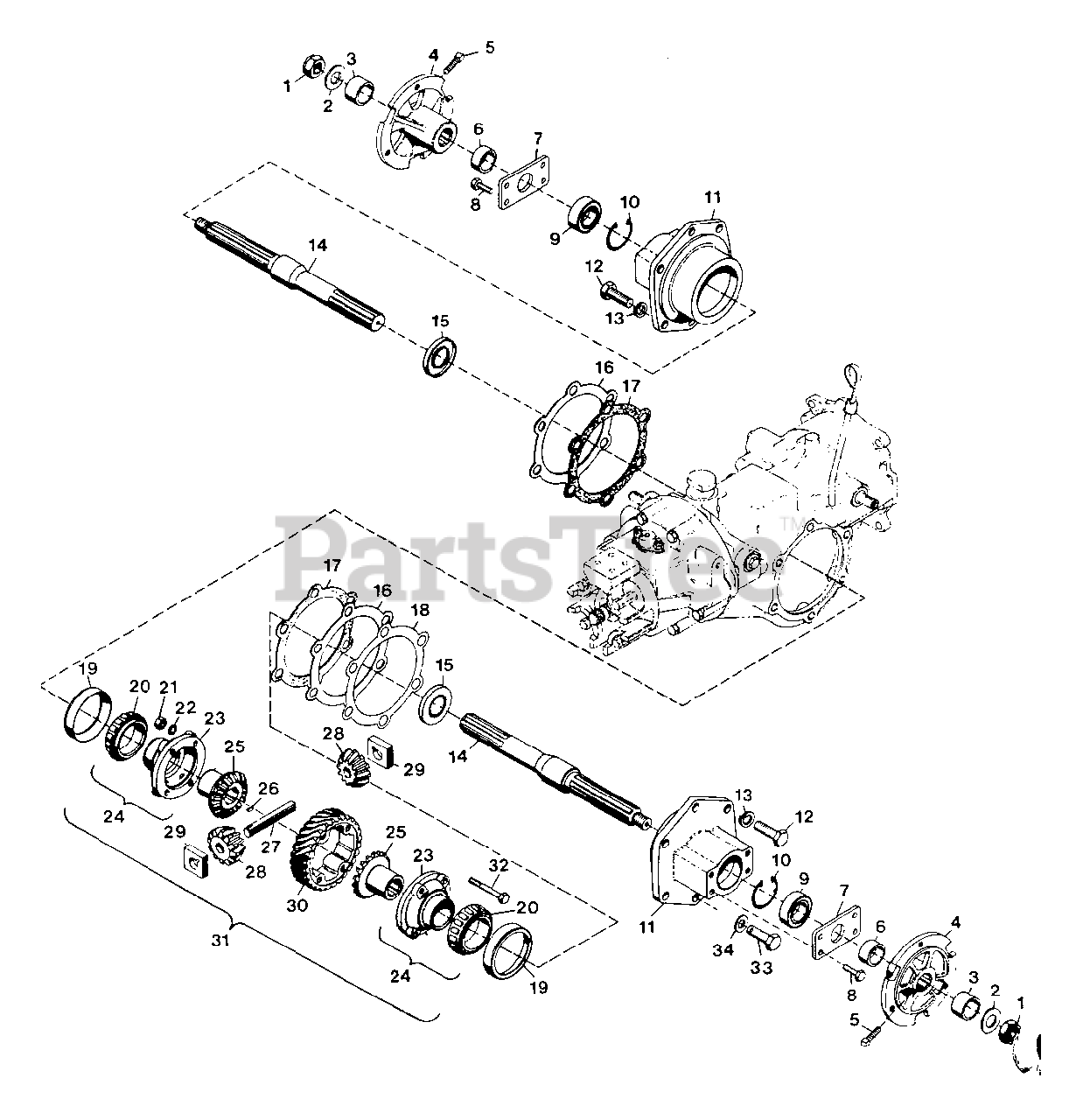

47383 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Electric Start Standard Differential - 2 Speed Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Electric Start

Standard Differential - 2 Speed Parts Diagram

  • Title

1

Gravely 022502

NUT-LK-JAM-NYL .75-10 YWZC
(Superseded to 06537900)

$17.99

$

Usually ships in 4-12 days

0

2

Gravely 131017

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06426000)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 022512

BUSH.,S1.02X1.37X1.13 ST
(Superseded to 08525200)

$27.99

$

Usually ships in 4-12 days

0

4

Gravely 022507

KIT, HEAVY DUTY HUB
(Superseded to 58501600)

$552.99

$

Usually ships in 4-12 days

0

5

Gravely 426913

SCR,SET 7/16-14X1 SQHCP
(Superseded to 21069400)

$

$

Not available

6

Gravely 022501

SPACER 1.008X1.377X.509 ST
(Superseded to 08524600)

$

$

Not available

7

Gravely 022503

PLT,END
(Superseded to 08524800)

$

$

Not available

8

Gravely 180120

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

9

Gravely 032050

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05400722)

$19.99

$

In Stock, Qty 20+

0

10

Gravely 022497

RG-RTNG-INT 2.210X.062
(Superseded to 05714200)

$2.99

$

In Stock, only 2 left!

0

11

Gravely 022495

HSG,AXLE
(Superseded to 08524200)

$

$

Not available

12

Gravely 180173

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

13

Gravely 120384

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 022493

AXLE,STRAIGHT
(Superseded to 08524000)

$

$

Not available

15

Gravely 022506

SEAL 1.188X2.000X.250
(Superseded to 05616400)

$22.99

$

In Stock, only 2 left!

0

16

Gravely 012595

SHIM,AXLE HOUSING .005
(Superseded to 08589700)

$10.99

$

Usually ships in 4-12 days

0

17

Gravely 012597

GSKT,AXLE HOUSING
(Superseded to 08556700)

$9.99

$

In Stock, Qty 8

0

18

Gravely 012596

SHIM, AXLE HOUSING .020

$

$

Not available

19

Gravely 012130

BRG-CUP ROLLER 82MMX17MM TMKN
(Superseded to 05428200)

$

$

Not available

20

Gravely 012131

BRG-CONE ROLLER 50MMX21.5MM
(Superseded to 05428300)

$

$

Not available

21

Gravely 120368

NUT-HEX .312-24 ZC
(Superseded to 06522800)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 138538

WSHR-LOCK INT .31 YWZC
(Superseded to 06310500)

$0.99

$

In Stock, Qty 8

0

23

Gravely 022504

HSG,DIFFERENTIAL
(Superseded to 08524900)

$

$

Not available

24

Gravely 022561

ASM,DIFF HSG
(Superseded to 21159600)

$

$

Not available

25

Gravely 006709

GR,DIFFERENTIAL BEVEL
(Superseded to 08577700)

$

$

Not available

26

Gravely 271089

KEY-WDRF .13X.38 HRD
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 012556

PIN,SPIDER PINION
(Superseded to 08589200)

$

$

Not available

28

Gravely 006708

GR,SPIDER BEVEL
(Superseded to 08577600)

$

$

Not available

29

Gravely 022505

BLOCK,DRIVE
(Superseded to 08525000)

$

$

Not available

30

Gravely 013498

GR,6-LEAD WORM
(Superseded to 08500300)

$382.99

$

Usually ships in 4-12 days

0

31

Gravely 022554

ASM,DIFF STD 6 LEAD
(Superseded to 21159300)

$

$

Not available

32

Gravely 181623

BLT-HEX .31-24X2.75 GR5 YWZC
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 013624

BLT-HEX .50-13X1.312 GR5
(Superseded to 05941200)

$

$

Not available

34

Gravely 045280

SEAL-OIL DRAIN .563X1.250X.091
(Superseded to 06432900)

$2.99

$

In Stock, only 1 left!

0
