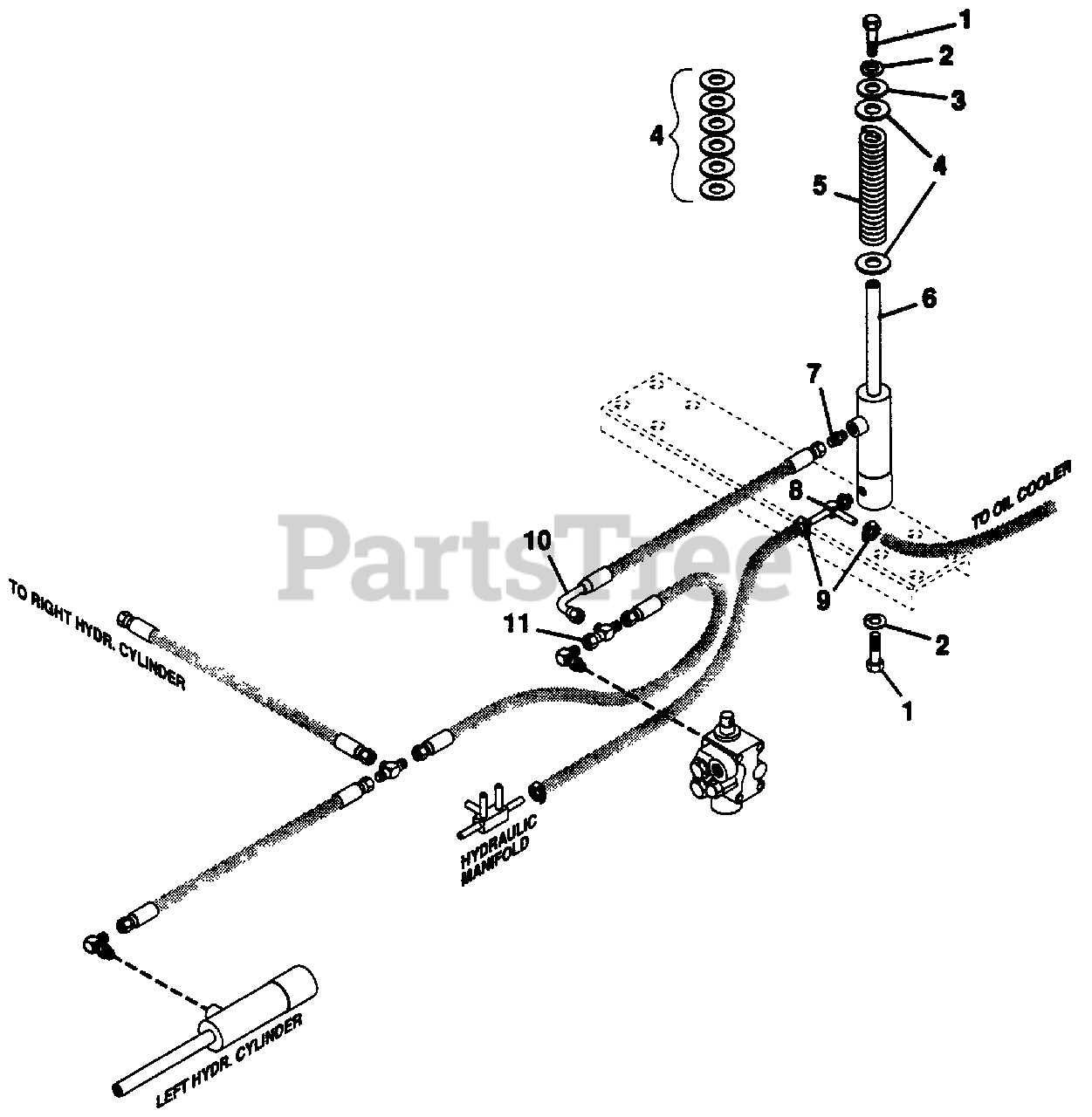

47548 - Gravely Pro-Master Series Weight Transfer for PM400 WEIGHT TRANSFER KIT Parts Diagram

Pro-Master Series Weight Transfer for PM400

WEIGHT TRANSFER KIT Parts Diagram

  • Title

1

Gravely 455025

Bolt, Hex 1/2-20x1.00 Gr. 8
(Superseded to 05940800)

$

$

Not available

2

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

3

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

4

Gravely 035640

Washer, Flat .812x1.469x.130
(Superseded to 06427600)

$5.99

$

In Stock, only 1 left!

0

5

Gravely 047483

Spring, Lift Assist
(Superseded to 08343100)

$

$

Not available

6

Gravely 047482

Cylinder, Lift Assist
(Superseded to 08982200)

$

$

Not available

7

Gravely 019167

Adapter, P.H. #0503-6-6
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

8

Gravely 047549

Adapter, 3/8" Barbed Tee
(Superseded to 07019400)

$

$

Not available

9

Gravely 032045

Clamp, Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 047304

Hose
(Superseded to 08981200)

$

$

Not available

11

Gravely 047657

Adapter, #6602-6-6-6
(Superseded to 07019500)

$

$

Not available
