47573 - Gravely Adjustable Handlebar for 2-Wheel Tractor ADJUSTABLE HANDLEBAR KIT Parts Diagram

Adjustable Handlebar for 2-Wheel Tractor

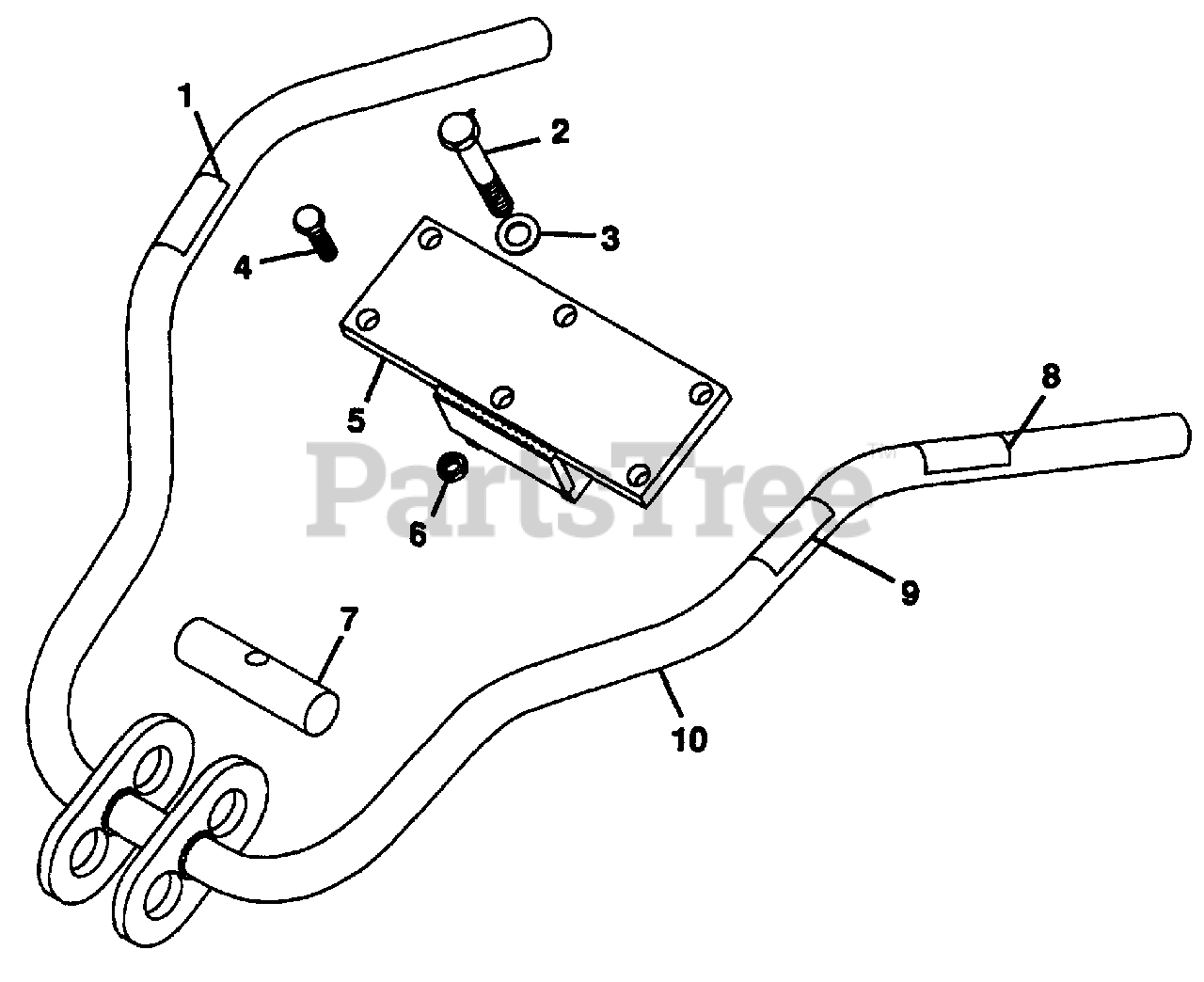

ADJUSTABLE HANDLEBAR KIT Parts Diagram

  • Title

1

Gravely 021091

Decal, Gear Shift
(Superseded to 05201100)

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 041182

Bolt, Hex 1/2-13x3.00 Grade 8
(Superseded to 05942600)

$

$

Not available

3

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

4

Gravely 041855

Bolt, Hex 3/8-16x1.25 Grade 8
(Superseded to 05965900)

$

$

Not available

5

Gravely 040836

Weldment, Handlebar Bracket
(Superseded to 08544600)

$

$

Not available

6

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

7

Gravely 040611

Pin
(Superseded to 08542800)

$

$

Not available

8

Gravely 021092

Decal, Throttle
(Superseded to 05201200)

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 021090

Decal, Fwd-Rev
(Superseded to 05201000)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 047161

Weldment, Handlebar
(Superseded to 08566700)

$

$

Not available

NS

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0
