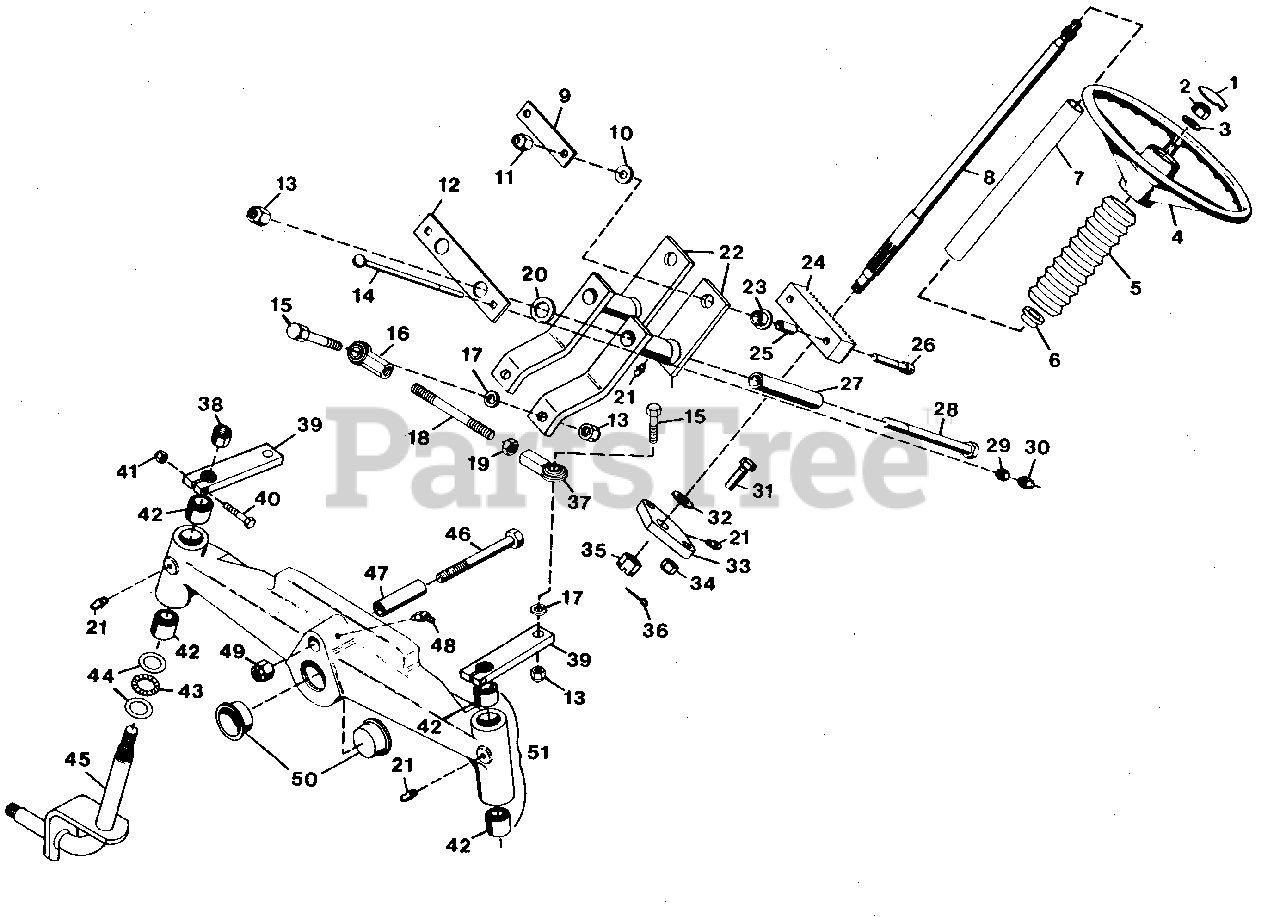

47580 - Gravely Lawn Tractor, 20hp, With Hydraulic Lift Steering Parts Diagram

Lawn Tractor, 20hp, With Hydraulic Lift

Steering Parts Diagram

  • Title

1

31426

Cap, Steering Wheel

$

$

Not available

2

Gravely 124847

Nut, Jam 5/8-11 Hex
(Superseded to 06539300)

$

$

Not available

3

Gravely 131016

Washer, Flat .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 18

0

4

24490

Wheel, Steering 8122

$

$

Not available

31281

Wheel, Steering 8123 and 8163-B

$

$

Not available

5

47311

Bellows, Steering Wheel

$

$

Not available

6

10174

Bushing, Nylon .760 x 1.00 x .60 Flg

$

$

Not available

7

40984

Tube, Plastic 1.0 I.D.

$

$

Not available

8

47530

Shaft, Steering

$

$

Not available

9

21246

Strap, Rack and Pinion

$

$

Not available

10

Gravely 446470

Washer, Flat .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 4 left!

0

11

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

12

21079

Plate, Adjustment

$

$

Not available

13

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

14

34074

Bolt, 5/16-18 x 5.5 Rd Hd Sq Nk

$

$

Not available

15

Gravely 180181

Bolt, Hex 1/2-13 x 2.00
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

16

44942

Rod End, Steering, LH

$

$

Not available

17

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

18

44940

Tie Rod, Steering

$

$

Not available

19

Gravely 124934

Nut, Jam 1/2-20
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

20

14998

Race, Brg Thrust .752 x 1.240 x .095

$

$

Not available

21

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

22

45643

Weldment, Steering Arm

$

$

Not available

23

21077

Bearing, Flange (P/M Bronze)

Note: (P/M Bronze)

$

$

Not available

24

21075

Gear, Rack

$

$

Not available

25

21076

Bushing, .391 x .622 x .670

$

$

Not available

26

Gravely 454473

Screw, Cap 3/8-16 x 2.0 HSHD
(Superseded to 05933400)

$3.49

$

In Stock, only 2 left!

0

27

21078

Sleeve, Pivot

$

$

Not available

28

Gravely 443734

Bolt, Hex 1/2-13 6.0
(Superseded to 05961800)

$

$

Not available

29

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

30

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

31

Gravely 180149

Bolt, Hex 7/16-14 x 1.5
(Superseded to 05901633)

$3.49

$

In Stock, only 1 left!

0

32

35344

Race, Thrust

$

$

Not available

33

35064

Support, Steering Shaft

$

$

Not available

34

39413

Nut, Lock 7/16-14

$

$

Not available

35

Gravely 121592

Nut, Hex 1/2-13 Slotted
(Superseded to 06539100)

$5.99

$

Usually ships in 4-12 days

0

36

Gravely 121224

Pin, Cotter .09 x 1.00

$0.99

$

Usually ships in 4-12 days

0

37

44941

Rod End, Steering, RH

$

$

Not available

38

Gravely 124589

Nut, Hex 5/8-11
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

39

44939

Arm, Tie Rod Axle

$

$

Not available

40

Gravely 181618

Bolt, Hex 5/16-24 x 1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

41

Gravely 190139

Nut, Lock 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

42

23241

Bushing, .877 x 1.004 x 1.0

$

$

Not available

43

21543

Bearing, Needle Thrust

$

$

Not available

44

21541

Race, Bearing Thrust

$

$

Not available

45

18463

Weldment, King Pin

$

$

Not available

46

Gravely 271781

Bolt, Hex 3/4-10 x 4.5
(Superseded to 05968800)

$9.49

$

In Stock, only 1 left!

0

47

23237

Tube, Axle Pivot

$

$

Not available

48

Gravely 411031

Fitting, Lube 45 Deg.
(Superseded to 07012700)

$3.99

$

Usually ships in 4-12 days

0

49

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

50

18785

Cap, Front Axle

$

$

Not available

51

45400

Axle, Steering

$

$

Not available
