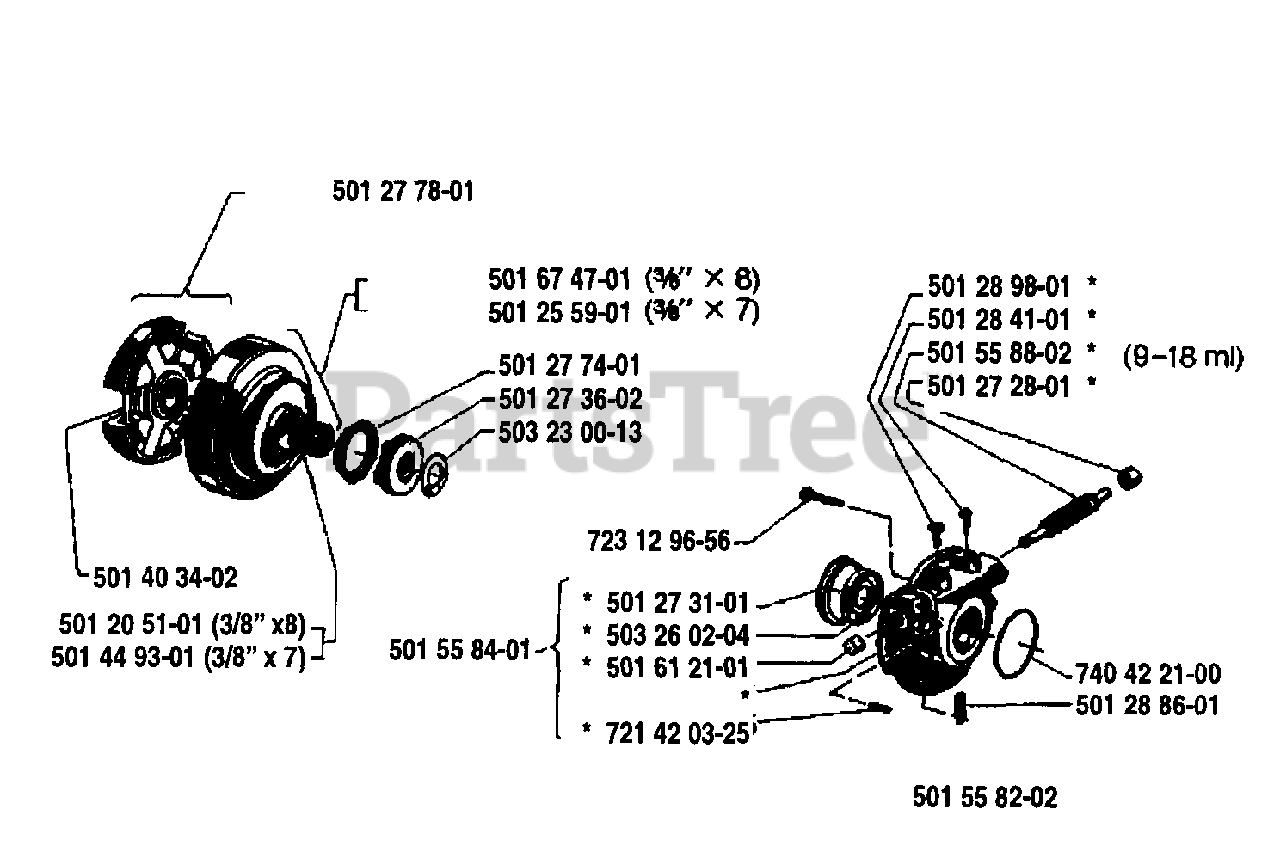

480 - Husqvarna Chainsaw (1981-10) Oil Pump/Clutch Parts Diagram

Chainsaw

Oil Pump/Clutch Parts Diagram

  • Title

501277801

Husqvarna 501277801

CLUTCH
(Superseded to 501403202)

$

$

Not available

501674701

Husqvarna 501674701

CLUTCH DRUM 3/8'' 8
(Superseded to 640200056)

$

$

Not available

501255901

Husqvarna 501255901

CLUTCH DRUM
(Superseded to 640200056)

$

$

Not available

501277401

Husqvarna 501277401

V-RING

$

$

Not available

501273602

Husqvarna 501273602

GEAR

$

$

Not available

503230013

Husqvarna 503230013

WASHER 13.1X20

$6.99

$

In Stock, only 2 left!

0

501403402

Husqvarna 501403402

CLUTCH SPRING

$9.49

$

In Stock, only 1 left!

0

501205101

Husqvarna 501205101

NEEDLE BEARING NLA

$

$

Not available

501449301

Husqvarna 501449301

NEEDLE BEARING

$

$

Not available

501558401

Husqvarna 501558401

$

$

Currently unavailable

501273101

Husqvarna 501273101

DUST PROTECTOR NLA

$

$

Not available

503260204

Husqvarna 503260204

SEALING RING

$17.99

$

In Stock, Qty 10

0

501612191

Husqvarna 501612191

$

$

Currently unavailable

501289801

Husqvarna 501289801

SCREW

$

$

Not available

501284101

Husqvarna 501284101

CONTROL SCREW

$

$

Not available

501558802

Husqvarna 501558802

PUMP PLUNGER

$

$

Not available

501272801

Husqvarna 501272801

BUSHING

$

$

Not available

740422100

Husqvarna 740422100

O-RING

$6.99

$

In Stock, Qty 12

0

501288601

Husqvarna 501288601

X-RING

$

$

Not available

501558202

Husqvarna 501558202

OIL PUMP

$

$

Not available

723129656

Husqvarna 723129656

SCREW MCS 4X22

$

$

Not available

721420325

Husqvarna 721420325

SPRING PIN 3X6

$

$

Not available
