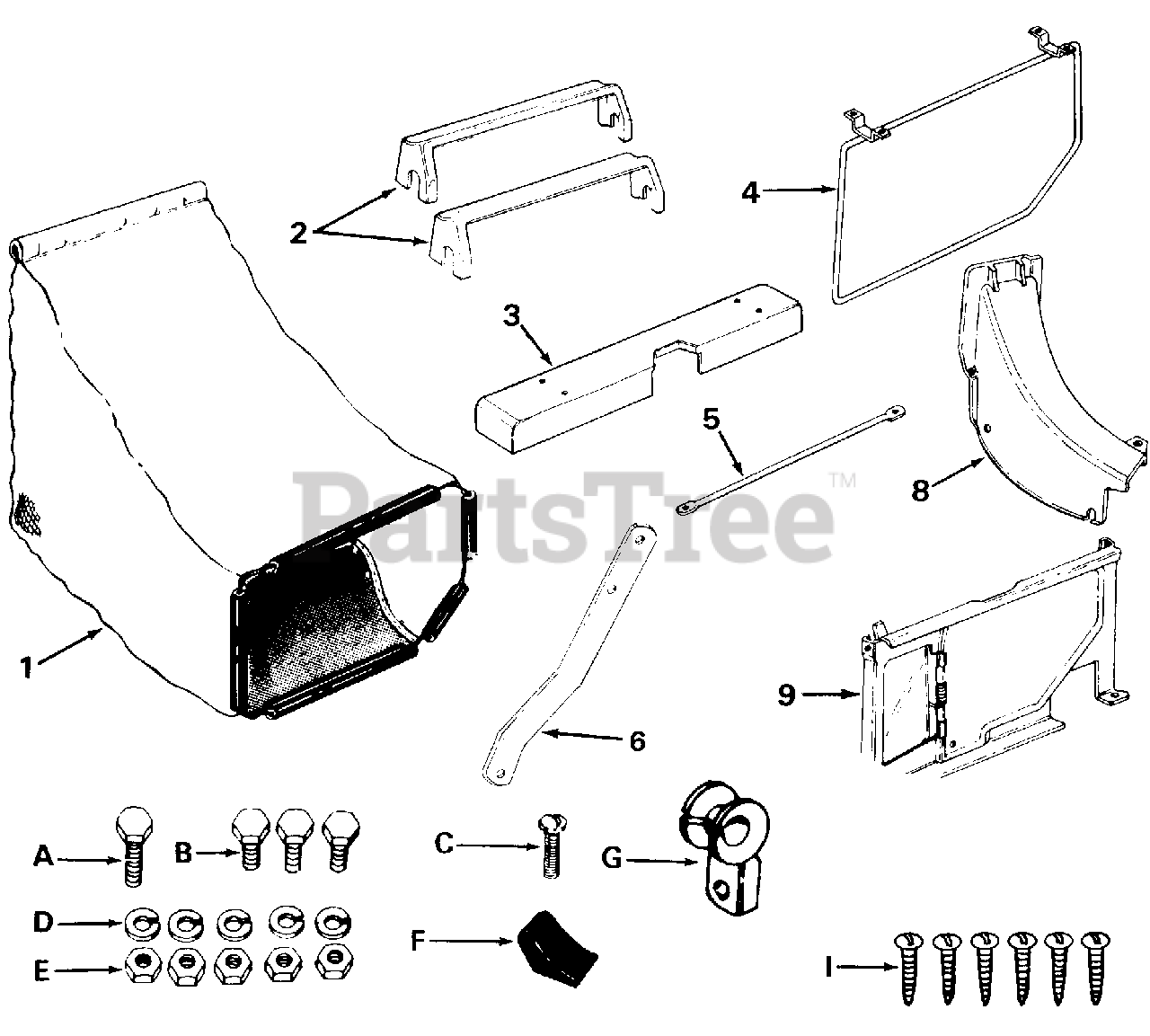

481-0438 (187-070-054) - Mastercraft Walk-Behind Mower, Electric (1987) > Parts Diagrams (3) > Grass Catcher Kit

  • Title
764-0212

1

Grass Bag

Part# 764-0212

OEM Warranty Repair Part for MTD

Currently unavailable

731-0801

2

Grass Catcher Handle

Part# 731-0801

OEM Warranty Repair Part for MTD

Not available

731-0807

3

Catcher Frame Cover

Part# 731-0807

OEM Warranty Repair Part for MTD

Not available

16538

4

Front Catcher Frame

Part# 16538

OEM Warranty Repair Part for MTD

Not available

747-0526

5

Bag Support

Part# 747-0526

OEM Warranty Repair Part for MTD

Not available

16129

6

Panel Support Bracket

Part# 16129 (Superseded to 16129A-0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.74

731-0733

8

Top Discharge Chute

Part# 731-0733

OEM Warranty Repair Part for MTD

Not available

16149

9

Top Catcher Panel

Part# 16149

OEM Warranty Repair Part for MTD

Not available

710-0258

A

Hex Bolt 1/4-20 x 5/8" Lg.*

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.66

710-0289

B

Hex Bolt 1/4-20 x 1/2" Lg.*

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.34

710-0225

C

Truss Machine Screw 1/4-20x 3/4" Lg.*

Part# 710-0225

OEM Warranty Repair Part for MTD

Currently unavailable

736-0329

D

Lock Washer 1/4" I.D.*

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0287

E

Hex Nut 1/4-20 Thread

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

720-0208

F

Door Grip

Part# 720-0208

OEM Warranty Repair Part for MTD

Not available

719-0279

G

Rope Guide

Part# 719-0279

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.40

710-0969

I

Truss Machine Self-Tap Screw 1.0" Lg.

Part# 710-0969

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89
