481-0719 (112-202R054) - Coast to Coast Walk-Behind Mower (1992)

Walk-Behind Mower

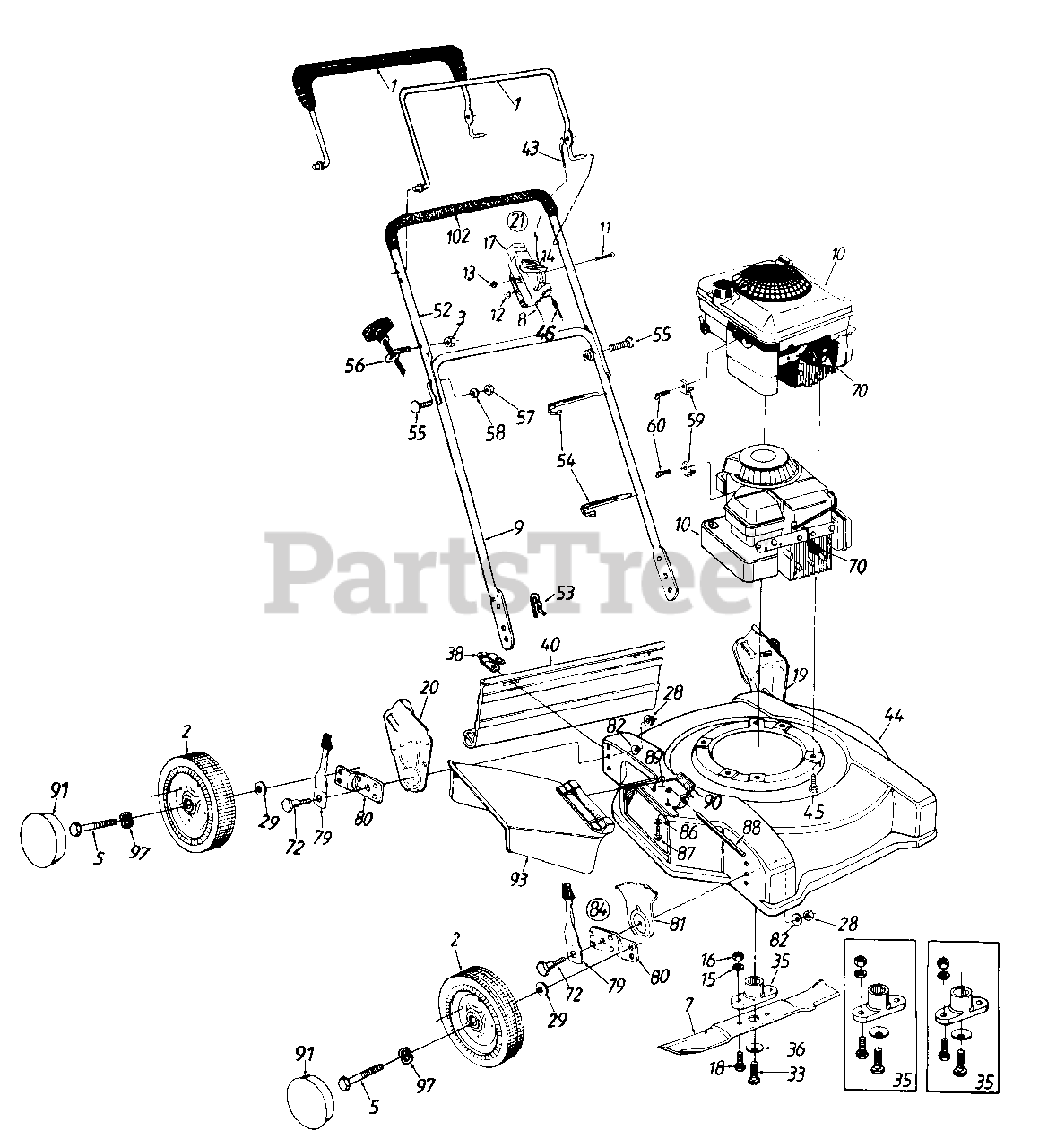

481-0719 (112-202R054) - Coast to Coast Walk-Behind Mower (1992) > Parts Diagrams (1) > Handle And Engine Assembly

  • Title
747-0824

1

Control Handle Ass'y. (Std.)

Part# 747-0824

Note: Code N

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Control Handle Assembly

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.39

647-0004

Control Handle Ass'y. w/Plastic

Part# 647-0004 (Superseded to 747-0824B-0637)

Note: Code N

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.39

734-1698

2

Wheel Ass'y. Comp. Diamond Tread (7")

Part# 734-1698

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

OEM Warranty Repair Part for MTD

Not available

734-1697

Wheel Ass'y. Comp. Diamond Tread (8")

Part# 734-1697

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

OEM Warranty Repair Part for MTD

Not available

734-1161A

Wheel Ass'y. Comp. Waffle Tread (7")

Part# 734-1161A

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

OEM Warranty Repair Part for MTD

Not available

734-1162A

Wheel Ass'y. Comp. Waffle Tread (8")

Part# 734-1162A

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

OEM Warranty Repair Part for MTD

Not available

734-1512A

Wheel Ass'y. Comp. "S" Wave Tread (8")

Part# 734-1512A (Superseded to 734-1826)

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.92

734-1169

Wheel Ass'y. Comp. Rib Tread (8")

Part# 734-1169 (Superseded to 734-04585)

Note: Use Axle Bolt P/N 738-0144, w/o Bearings

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.50

734-1609

Wheel Ass'y. Comp. Bar Tread (7")

Part# 734-1609

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

OEM Warranty Repair Part for MTD

Not available

634-0020

Wheel Ass'y. Comp. Bar Tread (8 x 1.75")

Part# 634-0020

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $28.21

734-1608

Wheel Ass'y. Comp. Bar Tread (8 x 2")

Part# 734-1608 (Superseded to 734-1781)

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $24.21

734-1513B

Wheel Ass'y. Comp. "S" Wave Tread (Gray)

Part# 734-1513B (Superseded to 753-08093)

Note: Use Axle Bolt P/N 738-0102, w/Bearings. Use Ball Brg. P/N 741-0180 (2 per Wheel)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $32.16

734-1517B

Wheel Ass'y. Comp. "S" Wave Tread (Beige)

Part# 734-1517B

Note: Use Axle Bolt P/N 738-0102, w/Bearings. Use Ball Brg. P/N 741-0180 (2 per Wheel)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $48.26

734-1259

Wheel Ass'y. Comp. "T" Tread

Part# 734-1259

Note: Use Axle Bolt P/N 738-1020, w/Bearings. Use Ball Brg. P/N 741-0267, 741-0484 & Spacer P/N 750-0434

OEM Warranty Repair Part for MTD

Not available

734-1260

Wheel Ass'y. Comp. "T" Tread

Part# 734-1260

Note: Use Axle Bolt P/N 738-0102, w/Bearings. Use Ball Brg. P/N 741-0180 (2 per Wheel)

OEM Warranty Repair Part for MTD

Not available

734-0645

Wheel Ass'y. Comp. Waffle

Part# 734-0645

Note: Use Axle Bolt P/N 738-1020, w/Bearings. Use Ball Brg. P/N 741-0267 & 741-0484 (2 per Wheel) & Spacer P/N 750-0434

OEM Warranty Repair Part for MTD

Not available

712-0324

3

Hex L-Nut 1/4-20 Thd.

Part# 712-0324

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.68

738-0102

5

Axle Bolt

Part# 738-0102 (Superseded to 938-0102)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.32

738-0144

Axle Bolt

Part# 738-0144 (Superseded to 938-0144)

OEM Warranty Repair Part for MTD

Not available

710-1020

Axle Bolt

Part# 710-1020

OEM Warranty Repair Part for MTD

Not available

742-0520

7

20" Blade

Part# 742-0520 (Superseded to 942-0620)

OEM Warranty Repair Part for MTD

Not available

742-0522

22" Blade

Part# 742-0522 (Superseded to 942-0622)

OEM Warranty Repair Part for MTD

Not available

746-0842

8

Throttle Control Wire - 51"

Part# 746-0842 (Superseded to 946-0671A)

Note: Code N; (200R, 202R, 204R, 206R, 220R, 222R, 224R & 226R)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.40

746-0844

Throttle Control Wire - 39"

Part# 746-0844

Note: Code N; (203R & 223R)

OEM Warranty Repair Part for MTD

Not available

749-0372B

9

Lower Handle

Part# 749-0372B (Superseded to 749-0928A)

OEM Warranty Repair Part for MTD

Not available

10

Engine

Part#

Not available

710-0605

11

Oval C-Sunk Mach. Scr.

Part# 710-0605

Note: Code N

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.08

736-0501

12

Spr. Wash..66" I.D.

Part# 736-0501 (Superseded to 936-0501)

Note: Code N

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.81

712-0291

13

Hex L-Nut 1/4-20 Thd.

Part# 712-0291 (Superseded to 912-0291)

OEM Warranty Repair Part for MTD

Not available

746-0876

14

Throttle Lever

Part# 746-0876 (Superseded to 946-0876)

Note: Code N

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.97

736-0169

15

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.64

712-0241

16

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.10

746-0875

17

Throttle Body

Part# 746-0875 (Superseded to 946-0875)

Note: Code N

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.99

710-1055

18

Hex Bolt 3/8-24 x 1.0" Lg.

Part# 710-1055

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.37

684-3001

19

Wheel Brkt. Ass'y.- L.H.

Part# 684-3001

OEM Warranty Repair Part for MTD

Currently unavailable

684-3000

20

Wheel Brkt. Ass'y.- R.H.

Part# 684-3000

OEM Warranty Repair Part for MTD

Currently unavailable

811-00185

21

Throttle Box Comp.

Part# 811-00185 (Superseded to 811-0185)

Note: Code N

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $27.13

712-0798

28

Hex Nut 3/8-16 Thd.

Part# 712-0798

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0105

29

Bell-Wash..40" I.D. x .88"

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-1044

33

Hex Bolt 3/8-24 x 1.5" Lg.

Part# 710-1044

Note: (Used w/Keyed Adapter)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79

710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

Part# 710-0757

Note: (Used w/Splined Adapter)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.01

753-0484

35

Blade Adapter Kit

Part# 753-0484

Note: (Keyed)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.22

753-0485

Blade Adapter Kit

Part# 753-0485

Note: (Splined)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.60

736-0452

36

Bell-Wash..39" I.D.

Part# 736-0452 (Superseded to 936-0452)

Note: (Used w/Keyed Adapter

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.24

736-0453

Bell-Wash..46" I.D.

Part# 736-0453 (Superseded to 936-0453)

Note: (Used w/Splined Adapter)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.57

17098

38

Hinge Clip

Part# 17098 (Superseded to 17098P)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.03

731-1028

40

Rear Flap Ass'y.

Part# 731-1028

Note: (Used w/20" Deck)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $26.24

731-1029

Rear Flap Ass'y.

Part# 731-1029

Note: (Used w/22" Deck)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.24

43

UNKNOWN

Part#

Not available

682-0200

44

20" Deck Ass'y.

Part# 682-0200

Note: Code 638

OEM Warranty Repair Part for MTD

Currently unavailable

682-0220

22" Deck Ass'y.

Part# 682-0220

Note: Code 638

OEM Warranty Repair Part for MTD

Currently unavailable

710-0654A

45

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

Part# 710-0654A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

746-0550

46

Control Cable - 39"

Part# 746-0550 (Superseded to 946-0550)

Note: (200R, 202R, 204R, 206R, 220R, 222R, 224R, 226R)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

746-0552

Control Cable - 49"

Part# 746-0552 (Superseded to 946-0552)

Note: (203R, 223R)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.42

749-0538C

52

Upper Handle

Part# 749-0538C

Note: Code N

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Upper Handle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

714-0104

53

Intern. Cot. Pin 5/16" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

726-0240

54

Cable Tie

Part# 726-0240 (Superseded to 725-0157)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

710-0671

55

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

Part# 710-0671

OEM Warranty Repair Part for MTD

Not available

710-1205

56

Rope Guide

Part# 710-1205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

712-0267

57

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Not available

736-0119

58

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

751-0568

59

Cable Clamp

Part# 751-0568 (Superseded to BS-690798)

Note: Code N; (B&S)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.35

710-1237

60

Hex Wash. Hd. Scr. #10-32 x .62" Lg.

Part# 710-1237

Note: Code N; (B&S)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

741-0180

?65

Ball Brg. 1/2" I.D. (2 per Wheel)

Part# 741-0180 (Superseded to 941-0180)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.98

741-0267

Ball Brg. 3/8" I.D.

Part# 741-0267

OEM Warranty Repair Part for MTD

Not available

741-0484

Ball Brg. 1/2" I.D.

Part# 741-0484 (Superseded to 941-0484)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.46

735-0639

70

Spark Plug Boot

Part# 735-0639

Note: (Optional)

OEM Warranty Repair Part for MTD

Not available

738-0507B

72

Shoulder Bolt .50" Dia.

Part# 738-0507B (Superseded to 938-0507B)

OEM Warranty Repair Part for MTD

Not available

14832

79

Spring Lever Ass'y. w/Knob

Part# 14832 (Superseded to 94832)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.61

15262B

80

Pivot Bar

Part# 15262B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.79

Variations

POWDER BLACK (0637)

PIVOT BAR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

15261A

81

Height Adj. Plate

Part# 15261A (Superseded to 787-01290A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.48

736-0356

82

Bell-Wash..39" I.D. x 1.38"

Part# 736-0356 (Superseded to 936-0356)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

14578

84

Front Height Adj. Ass'y. Comp.- R.H.

Part# 14578 (Superseded to 753-06761)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.15

14579

?85

Front Height Adj. Ass'y. Comp.- L.H.

Part# 14579 (Superseded to 753-06761)

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.15

736-0270

86

Bell-Wash..285" I.D. x .75" D.D.

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

710-0599

87

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

747-0710

88

Hinge Pin

Part# 747-0710 (Superseded to 747-0710A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

17032

89

Adapter Plate

Part# 17032 (Superseded to 17032A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.96

732-0593

90

Torsion Spring

Part# 732-0593 (Superseded to 932-0593)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.40

731-0981A

91

Hub Cap Gray (5-1/2 Dia.)

Part# 731-0981A (Superseded to 731-0981C)

Note: Optional

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.40

731-0982A

Hub Cap Beige (5-1/2 Dia.)

Part# 731-0982A (Superseded to 731-0982C)

Note: Optional

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.74

720-0249

Hub Cap Gray (3-1/2 Dia.)

Part# 720-0249 (Superseded to 920-0249)

Note: Optional

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.57

720-0251

Hub Cap Black (1-1/2 Dia.)

Part# 720-0251

Note: Optional

OEM Warranty Repair Part for MTD

Not available

731-0342

Hub Cap Red (1-3/8 Dia.)

Part# 731-0342

Note: Optional

OEM Warranty Repair Part for MTD

Not available

731-0124

Hub Cap Red (With Tabs)

Part# 731-0124

Note: Optional

OEM Warranty Repair Part for MTD

Not available

720-0354

Hub Cap Black (With tabs)

Part# 720-0354

Note: Optional

OEM Warranty Repair Part for MTD

Currently unavailable

731-1034

93

Chute Deflector Ass'y. Comp.

Part# 731-1034 (Superseded to 931-1034B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $51.19

736-0232

97

Wave Washer .53" I.D.

Part# 736-0232 (Superseded to 936-0232)

Note: (Used w/Ball Brg. Wheels)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.23

736-0272

?99

Fl-Wash..51" I.D. x 1.0"

Part# 736-0272 (Superseded to 936-0272)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.50

720-0226

102

Foam Grip

Part# 720-0226 (Superseded to 720-0295)

Note: (Optional)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.27
