481-2368 (136G765N054) - Coast to Coast Lawn Tractor (1996) Chute Asembly - Center Section Parts Diagram

Lawn Tractor

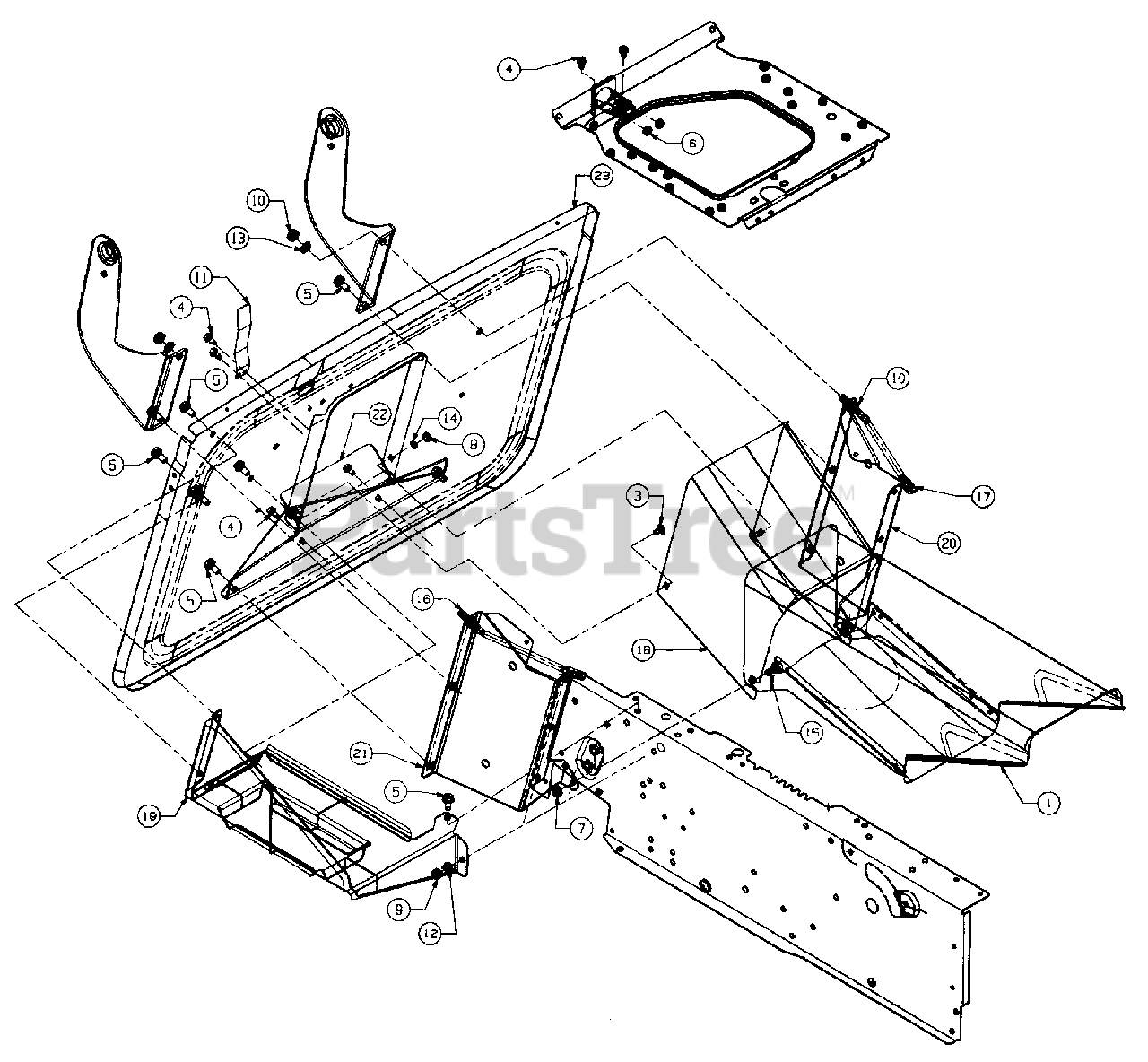

Chute Asembly - Center Section Parts Diagram

  • Title

1

MTD 683-0078

Chute Ass'y. Center Section

$

$

Not available

?2

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0604

Hex Wash. Hd. SF-Tap Scr. 5/16 x .5" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.49

$

Usually ships in 3-6 days

0

8

MTD 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-3017

Hex Nut 3/8-16 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

11

MTD 732-0750A

Spring Switch
(Superseded to 932-0750A)

$20.99

$

Usually ships in 3-6 days

0

12

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

14

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

15

MTD 738-0140

Shld. Bolt .437" x .56" Lg.

$5.49

$

In Stock, Qty 17

0

16

MTD 747-0616

Brace Rod-R.H.

$

$

Not available

17

MTD 747-0617

Brace Rod-L.H.

$

$

Not available

18

MTD 783-0203

Chute Cover Brkt.

$

$

Not available

19

MTD 783-0234

Battery Tray

$

$

Not available

20

MTD 783-0170A

Hitch Plate Ext.-L.H.

Variations

MTD 783-0170A-0637

No Longer Available PLATE-HITC - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 783-0171A

Hitch Plate Ext.-R.H.

$

$

Not available

22

MTD 783-0226

Hitch Plate

$

$

Not available

23

MTD 783-0283A

Grass Catcher Support

$

$

Not available
