481-2368 (136G765N054) - Coast to Coast Lawn Tractor (1996) Deck Link Hanger Assembly Parts Diagram

Lawn Tractor

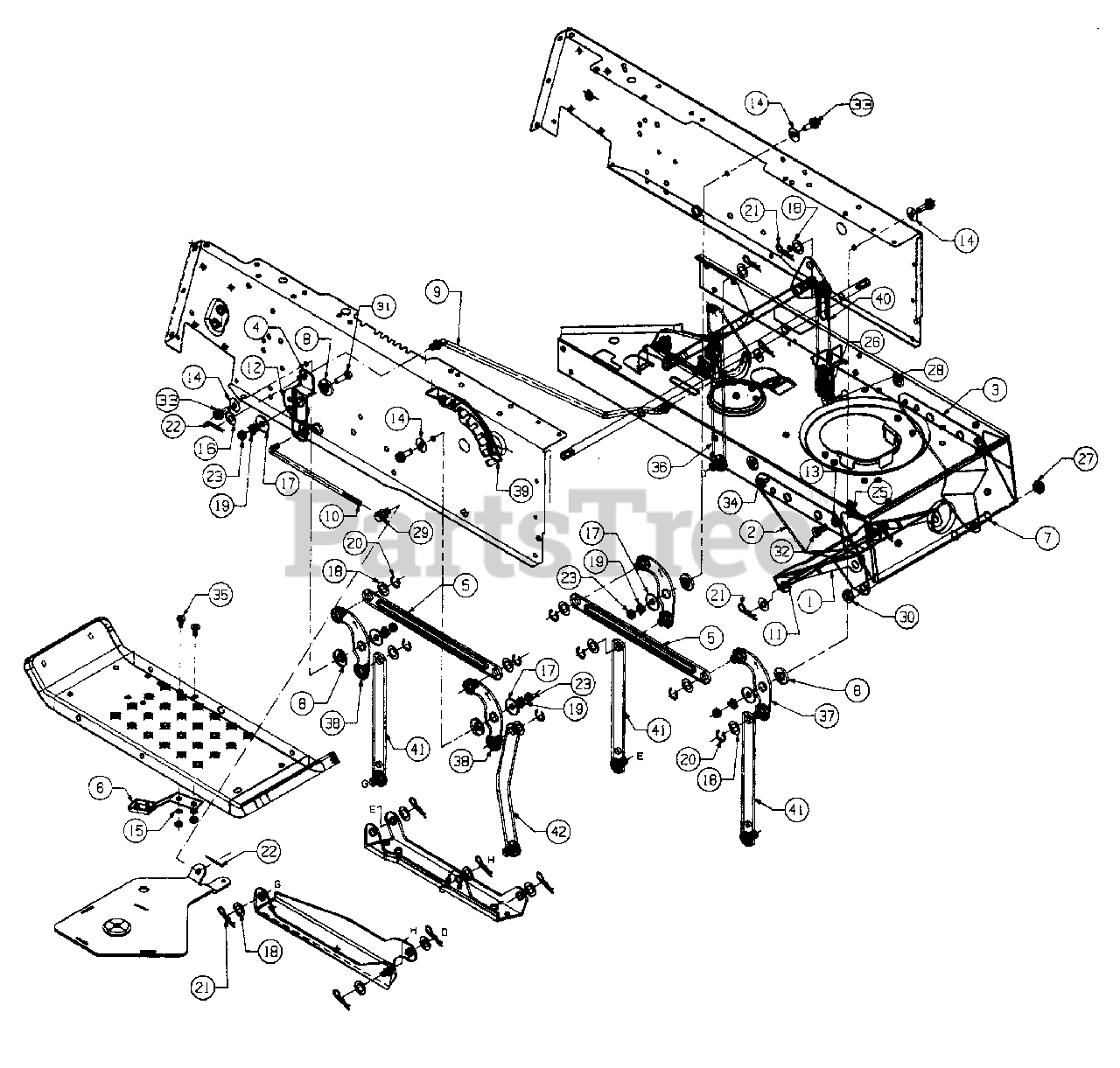

Deck Link Hanger Assembly Parts Diagram

  • Title

1

MTD 783-0377

Stabilizer Brkt.

Note: New Part

$

$

Not available

2

MTD 783-0376

Stabilizer Support Brkt.-R.H.

$

$

Not available

3

MTD 783-0375

Stabilizer Support Brkt.-L.H.

Note: New Part

$

$

Not available

4

MTD 783-0197

Engagement Arm Link

$

$

Not available

5

MTD 783-0103

Connecting Rod
(Superseded to 783-0103-0637)

Variations

MTD 783-0103-0637

ROD-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 761-0168A

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, Qty 5

0

7

MTD 750-0972

Spacer .515" I.D. x 3.6" Lg.

$

$

Not available

8

MTD 748-0331

Shld. Spacer
(Superseded to 948-0331)

$

$

Not available

9

MTD 747-0916

Deck Disengagement Rod

$

$

Not available

10

MTD 747-0610

Deck Disengagement Rod

$

$

Not available

11

MTD 738-0669

Shaft 3/8" Dia. x 9.34" Lg.

$18.99

$

Usually ships in 3-6 days

0

12

MTD 736-0418A

FL-Wash. .34" I.D. x 2.25" O.D.

$9.99

$

Usually ships in 3-6 days

0

13

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

14

MTD 736-0425

Bell-Wash. .325" I.D. x .93" O.D.

$4.49

$

In Stock, Qty 16

0

15

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

16

MTD 736-0267

FL. Wash. 3/8" I.D. x .87" O.D.

$4.49

$

Usually ships in 3-6 days

0

17

MTD 736-0231

FL-Wash. .344" I.D. x 1-1/8" O.D.

$4.49

$

In Stock, only 4 left!

0

18

MTD 736-0160

FL-Wash. .531" I.D. x .93" O.D.

$3.99

$

In Stock, only 2 left!

0

19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

20

MTD 716-0104

"E"-Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 18

0

21

MTD 714-0145

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

22

MTD 714-0111

Cotter Pin 1/8" Dia. x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

?24

MTD 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

25

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

26

MTD 712-3066

Hex Nut 1/2-20 Thd. (Gr. 5)
(Superseded to 912-3066)

$6.49

$

In Stock, only 1 left!

0

27

MTD 712-0346

Hex Ins. Jam L-Nut 1/2-20 Thd.

$4.49

$

In Stock, Qty 19

0

28

MTD 711-0841

Adjuster Life Link
(Superseded to 911-0841)

$

$

Not available

29

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

30

MTD 710-1319

Hex Bolt 1/2-20 x 11" Lg. (Gr. 5)

Note: New Part

$

$

Not available

31

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 17

0

32

MTD 710-0180

Hex Bolt 3/8-24 x .75" Lg. (Gr. 5)

$6.49

$

In Stock, Qty 5

0

33

MTD 710-1238

Hex Scr. 5/16-18 x .87" Lg.
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 10

0

34

MTD 710-0607

Hex Wash. Hd. Scr. 5/16 x .5" Lg.

$6.49

$

In Stock, Qty 20+

0

35

MTD 710-0134

Carr. Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

36

MTD 683-0079

Deck Link Lift Ass'y.

$

$

Not available

37

MTD 683-0029A

Pivot Link Ass'y.-L.H.
(Superseded to 983-0029A-0637)

$13.99

$

In Stock, only 3 left!

0

38

MTD 683-0028A

Pivot Link Ass'y.-R.H.

$

$

Not available

39

MTD 17730

Index Brkt.
(Superseded to 783-04113P)

$23.99

$

In Stock, only 1 left!

0

MTD 783-0118

Index Brkt.

Note: (Style 6)

$

$

Not available

MTD 783-0185

Index Brkt.

Note: (Style 6 w/Electric Clutch)

$

$

Not available

40

MTD 17712

Adj. Lift Link
(Superseded to 17712-0637)

Variations

MTD 17712-0637

Deck Adjust Link - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

41

MTD 14804A

Deck Link Hanger

$

$

Not available

42

MTD 14800A

Deck Link Hanger Ass'y.
(Superseded to 14800A-0637)

Variations

MTD 14800A-0637

HANGER-DECK LINK - POWDER BLACK (0637)

$

$

Not available

$

$
