481-2368 (136G765N054) - Coast to Coast Lawn Tractor (1996) Engine/Heat Shield Parts Diagram

Lawn Tractor

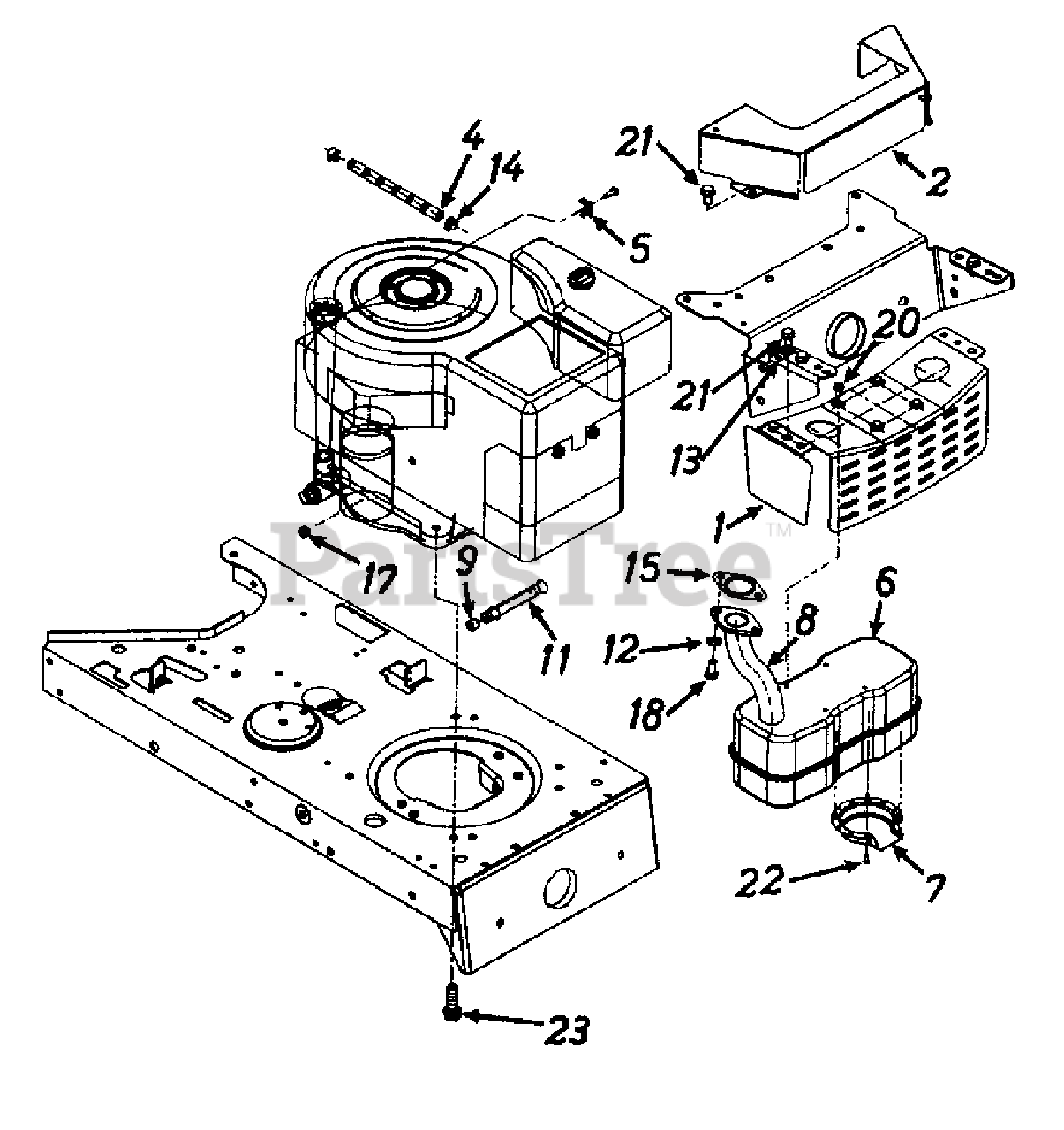

Engine/Heat Shield Parts Diagram

  • Title

1

MTD 783-0385

Heat Shield Bracket

Note: New Part

$

$

Not available

2

MTD 783-0378

Heat Shield

Variations

MTD 783-0378-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

?3

MTD 783-0320

Muffler Bracket
(Superseded to 783-0615E-0637)

Note: New Part

$59.99

$

In Stock, Qty 5

0

4

MTD 751-0535-12

Fuel Line
(Superseded to 751-10349-13)

$16.99

$

In Stock, Qty 7

0

5

MTD 751-0360A

Casing Clamp
(Superseded to 751B221535)

$9.49

$

In Stock, Qty 20+

0

6

MTD 751-0617

Muffler
(Superseded to 951-0617C)

$138.99

$

In Stock, Qty 10

0

7

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$12.99

$

In Stock, Qty 20+

0

8

MTD 751-0620

Exhaust Pipe
(Superseded to 751-0620A)

$75.99

$

In Stock, only 3 left!

0

9

MTD 751-0572

Hex Pipe Plug

$

$

Not available

11

MTD 737-0286

Pipe 3/8 NPT x 3.8" Lg.

$

$

Not available

12

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

MTD 726-0272

Clamp

$6.99

$

Usually ships in 3-6 days

0

14

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

15

MTD 721-0348

Exhaust Gasket
(Superseded to TC-36365)

$3.49

$

In Stock, Qty 12

0

17

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

Note: New Part

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-1314

Socket Hd. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

?19

MTD 710-1237

Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

20

MTD 710-0599

Hex Wash. Hd. TT-Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

21

MTD 710-0604

Hex Wash. Hd. TT-Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-0148

Hex Bolt #8-32 x .38" Lg.

$3.99

$

In Stock, Qty 16

0

23

MTD 710-1315

Hex Wash. Hd. TT-Scr. 3/8-16 x 1.25" Lg.

$3.99

$

In Stock, Qty 20+

0
