481-2368 (136G765N054) - Coast to Coast Lawn Tractor (1996) Frame Assembly-Upper & Lower/Wheel Assembly Parts Diagram

Lawn Tractor

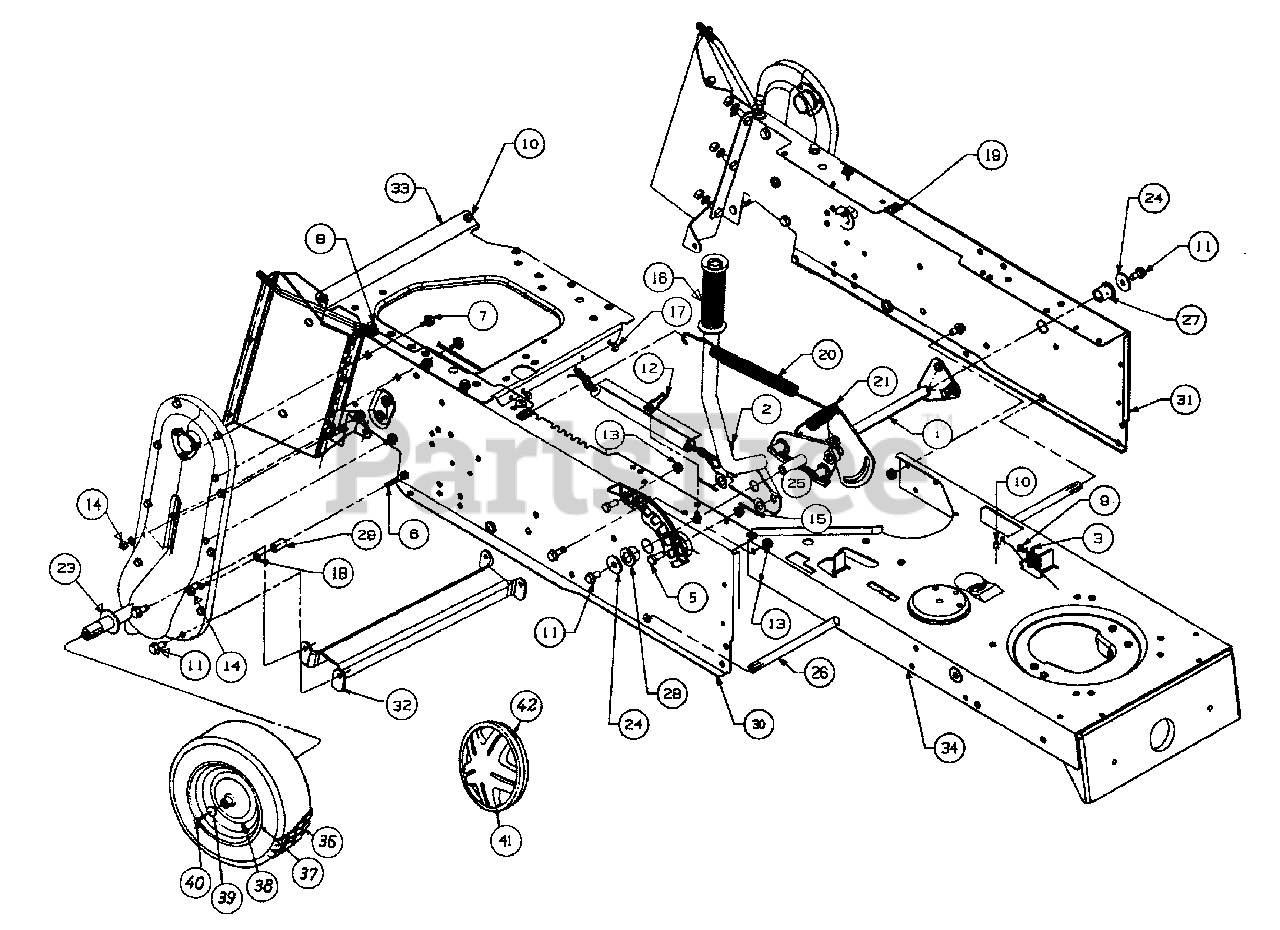

Frame Assembly-Upper & Lower/Wheel Assembly Parts Diagram

  • Title

1

MTD 17637A

Lift Shaft Ass'y.

Variations

17637A-0637

MTD 17637A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 683-0059

Lift Shaft Ass'y.
(Superseded to 983-0059-0637)

Note: (Style 6 Only)

$

$

Not available

2

MTD 17675A

Deck Lift Handle Ass'y.

$

$

Not available

3

MTD 17962

Switch Plate

$5.49

$

In Stock, Qty 12

0

?4

MTD 683-0082

Chain Case Ass'y.

$

$

Not available

5

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0606

Hex Bolt 1/4-20 x 1.5" Lg.

$5.99

$

In Stock, only 4 left!

0

7

MTD 710-0607

Hex Wash. Hd. B-Tap Scr. 5/16" x 1/2" Lg.

$6.99

$

In Stock, Qty 20+

0

8

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0224

Hex Wash. AB-Tap Scr. #10 x .5" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 13

0

10

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0604

Hex Wash. Hd. SF-TAp Scr. 5-16/18 x .5" Lg.
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 8

0

12

MTD 712-0185

Speed Nut

$

$

Not available

13

MTD 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

14

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 15

0

15

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 9

0

16

MTD 720-0233

Grip
(Superseded to 920-0233)

$

$

Not available

17

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

18

MTD 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0

19

MTD 726-0139

Speed Nut #10 Thd.

$7.49

$

In Stock, only 2 left!

0

20

MTD 732-0307A

Deck Spring 11.1" Lg.
(Superseded to 932-0307A)

$

$

Not available

21

MTD 732-0637

Ext. Spring 3.63" Lg.
(Superseded to 932-0637)

$

$

Not available

?22

MTD 732-0750A

Spring Switch
(Superseded to 932-0750A)

$22.99

$

Usually ships in 3-6 days

0

23

MTD 736-0188

FL-Wash. .76" I.D. x 1.49" O.D.

$4.99

$

In Stock, Qty 20+

0

24

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 19

0

25

MTD 736-0160

FL-Wash. .531" I.D. x .93" O.D.

$4.49

$

Usually ships in 3-6 days

0

26

MTD 738-0526

Running Board Rod

$

$

Not available

27

MTD 741-0487A

Flange Bearing .632" I.D.
(Superseded to 741-0487C)

$7.99

$

In Stock, Qty 20+

0

28

MTD 748-0176

Flange Bearing .63" I.D.

$10.99

$

In Stock, only 1 left!

0

29

MTD 750-0969

Spacer

$

$

Not available

30

MTD 783-0134A

Upper Frame Side Panel-R.H.

Variations

783-0134A-0637

MTD 783-0134A-0637

No Longer Available FRAME-UPPE - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 783-0135

Upper Frame Side Panel-L.H.

Variations

783-0135-0637

MTD 783-0135-0637

No Longer Available FRAME-UPPE - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 783-0172

Chain Case Brace

$

$

Not available

33

MTD 783-0200A

Transaxle Mounting Plate

$

$

Not available

34

MTD 783-0334

Lower Frame Ass'y.

Note: New Part

Variations

783-0334-0638

MTD 783-0334-0638

No Longer Available FRAME LOWE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

36

Wheel Ass'y. Comp.

$

$

Not available

MTD 734-0817

Wheel Ass'y. Comp. - 18" x 9.50" (Round Shoulder)

Variations

734-0817-0911

MTD 734-0817-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

734-0817-0912

MTD 734-0817-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

734-0817-0915

MTD 734-0817-0915

No Longer Available WHEEL ASM - Duro Gray (0915)

$

$

Not available

734-0817-0931

MTD 734-0817-0931

No Longer Available WHL ASM 1 - Carlisle Beige (0931)

$

$

Not available

734-0817-0932

MTD 734-0817-0932

No Longer Available WHEEL ASM - Dico Beige (0932)

$

$

Not available

734-0817-0941

MTD 734-0817-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

734-0817-0981

MTD 734-0817-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$

$

MTD 634-0103

Wheel Ass'y. Comp. - 18" x 9.50" (Square Shoulder)

Variations

634-0103-0911

MTD 634-0103-0911

No Longer Available WHL ASM 1 - Carlisle Gray (0911)

$

$

Not available

634-0103-0912

MTD 634-0103-0912

No Longer Available - Dico Gray (0912)

$

$

Not available

634-0103-0931

MTD 634-0103-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

634-0103-0941

MTD 634-0103-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

634-0103-0942

MTD 634-0103-0942

No Longer Available WHEEL ASM - Dico Yellow (0942)

$

$

Not available

$

$

Tire Only

$

$

Not available

MTD 734-0448

Tire Only - 18" x 9.50" (Round Shoulder)

Variations

734-0448-0901

MTD 734-0448-0901

No Longer Available TIRE 18 X - Carlisle (0901)

$

$

Not available

734-0448-0902

MTD 734-0448-0902

No Longer Available - Dico (0902)

$

$

Not available

734-0448-0905

MTD 734-0448-0905

No Longer Available - Duro (0905)

$

$

Not available

$

$

MTD 734-0294

Tire Only - 18" x 6.50" (Round Shoulder)

Variations

734-0294-0901

MTD 734-0294-0901

Tubeless Tire, 18 X 6.5 X 8" - Carlisle (0901)

$90.99

$

In Stock, Qty 5

0

734-0294-0902

MTD 734-0294-0902

Tubeless Tire, 18 X 6.5 X 8" - Dico (0902)

$90.99

$

In Stock, Qty 5

0

734-0294-0905

MTD 734-0294-0905

Tubeless Tire, 18 X 6.5 X 8" - Duro (0905)

$90.99

$

In Stock, Qty 5

0

$

$

37

Wheel Rim Only

$

$

Not available

MTD 634-0070

Rim Only - 18" x 9.50" (Round Shoulder)
(Superseded to 634-04369)

Variations

634-0070-0499

MTD 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$175.99

$

Usually ships in 3-6 days

0

634-0070-0629

MTD 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$175.99

$

Usually ships in 3-6 days

0

634-0070-0662

MTD 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$175.99

$

Usually ships in 3-6 days

0

634-0070-0674

MTD 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$175.99

$

Usually ships in 3-6 days

0

634-0070-0688

MTD 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$175.99

$

Usually ships in 3-6 days

0

634-0070-4009

MTD 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

$142.99

$

Usually ships in 3-6 days

0

MTD 634-0070

Rim Only - 18" x 9.50" (Square Shoulder)
(Superseded to 634-04369)

Variations

634-0070-0499

MTD 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$175.99

$

Usually ships in 3-6 days

0

634-0070-0629

MTD 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$175.99

$

Usually ships in 3-6 days

0

634-0070-0662

MTD 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$175.99

$

Usually ships in 3-6 days

0

634-0070-0674

MTD 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$175.99

$

Usually ships in 3-6 days

0

634-0070-0688

MTD 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$175.99

$

Usually ships in 3-6 days

0

634-0070-4009

MTD 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

$142.99

$

Usually ships in 3-6 days

0

38

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Service Only)

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

40

MTD 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 7

0

41

MTD 734-1615

Hub Cap (Gray)
(Superseded to 734-1615A)

Note: (Optional)

$34.99

$

Usually ships in 3-6 days

0

MTD 734-1614

Hub Cap (Beige)

Note: (Optional)

$

$

Not available

MTD 734-1788

Hub Cap (Yellow)
(Superseded to 934-1788A)

Note: (Optional)

$36.99

$

Usually ships in 3-6 days

0

42

MTD 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available
