481-2368 (136G765N054) - Coast to Coast Lawn Tractor (1996) Lift Handle & Brackets (Grass Catcher) Parts Diagram

Lawn Tractor

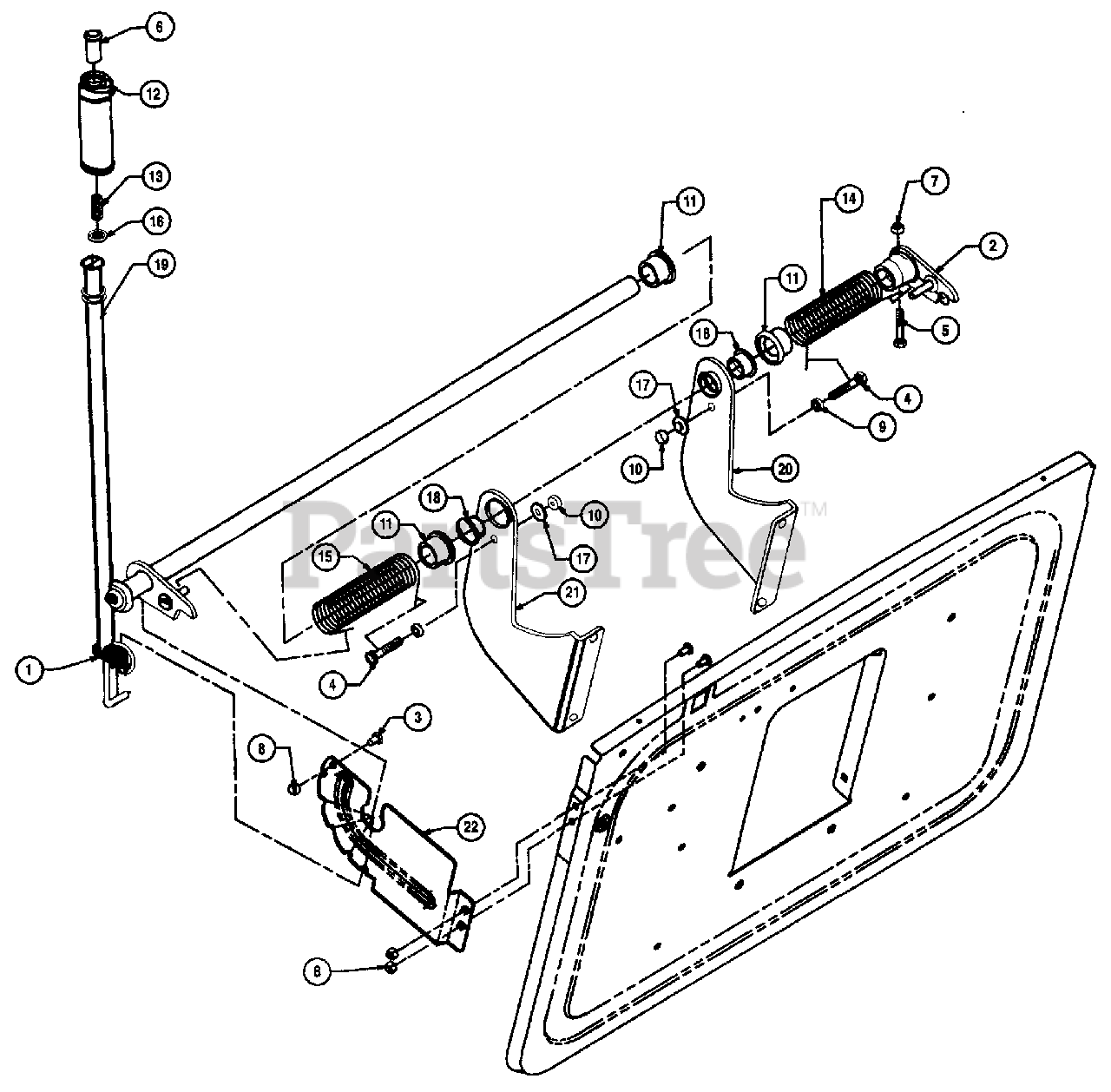

Lift Handle & Brackets (Grass Catcher) Parts Diagram

  • Title

1

MTD 649-0007

Lift Handle-Grass Catcher

Variations

MTD 649-0007-0637

No Longer Available HANDLE-LIF - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 683-0084

Lift Bracket

$

$

Not available

3

MTD 710-0286

Pan Hd. Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

4

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg. (Gr. 5)

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-0559

Hex Bolt 1/4-28 x 1.75" Lg. (Gr. 5)

$

$

Not available

6

MTD 711-0642A

Handle Button

$7.49

$

In Stock, Qty 20+

0

7

MTD 712-0117

Hex L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

8

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

9

MTD 712-3025

Hex Jam Nut 5/16-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

10

MTD 712-3057

Hex Nut 5/16-24 Thd. (Gr. 5)
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

11

MTD 731-1540

Spring Retainer

$

$

Not available

12

MTD 731-3158

Grip

$16.99

$

Usually ships in 3-6 days

0

13

MTD 732-0335

Comp. Spring

$4.99

$

In Stock, only 3 left!

0

14

MTD 732-0738

Torsion Spring-L.H.

$

$

Not available

15

MTD 732-0739

Torsion Spring-R.H.

$

$

Not available

16

MTD 736-3008

FL-Wash. .312" I.D. x .75" O.D.
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

17

MTD 736-0242

Bell-Wash. .34" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

18

MTD 741-0618

Flange Bearing .88" I.D.

$

$

Not available

19

MTD 747-0614

Rod

$

$

Not available

20

MTD 783-0235

Tilt Catcher Brkt.-L.H.

Variations

MTD 783-0235-0637

No Longer Available BRACKET-LH - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 783-0236

Tilt Catcher Brkt.-R.H.

Variations

MTD 783-0236-0637

No Longer Available BRACKET-RH - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 783-0241

Index Lift Brkt.

Variations

MTD 783-0241-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$
