481-2368 (136G765N054) - Coast to Coast Lawn Tractor (1996) Mowing Deck Parts Diagram

Lawn Tractor

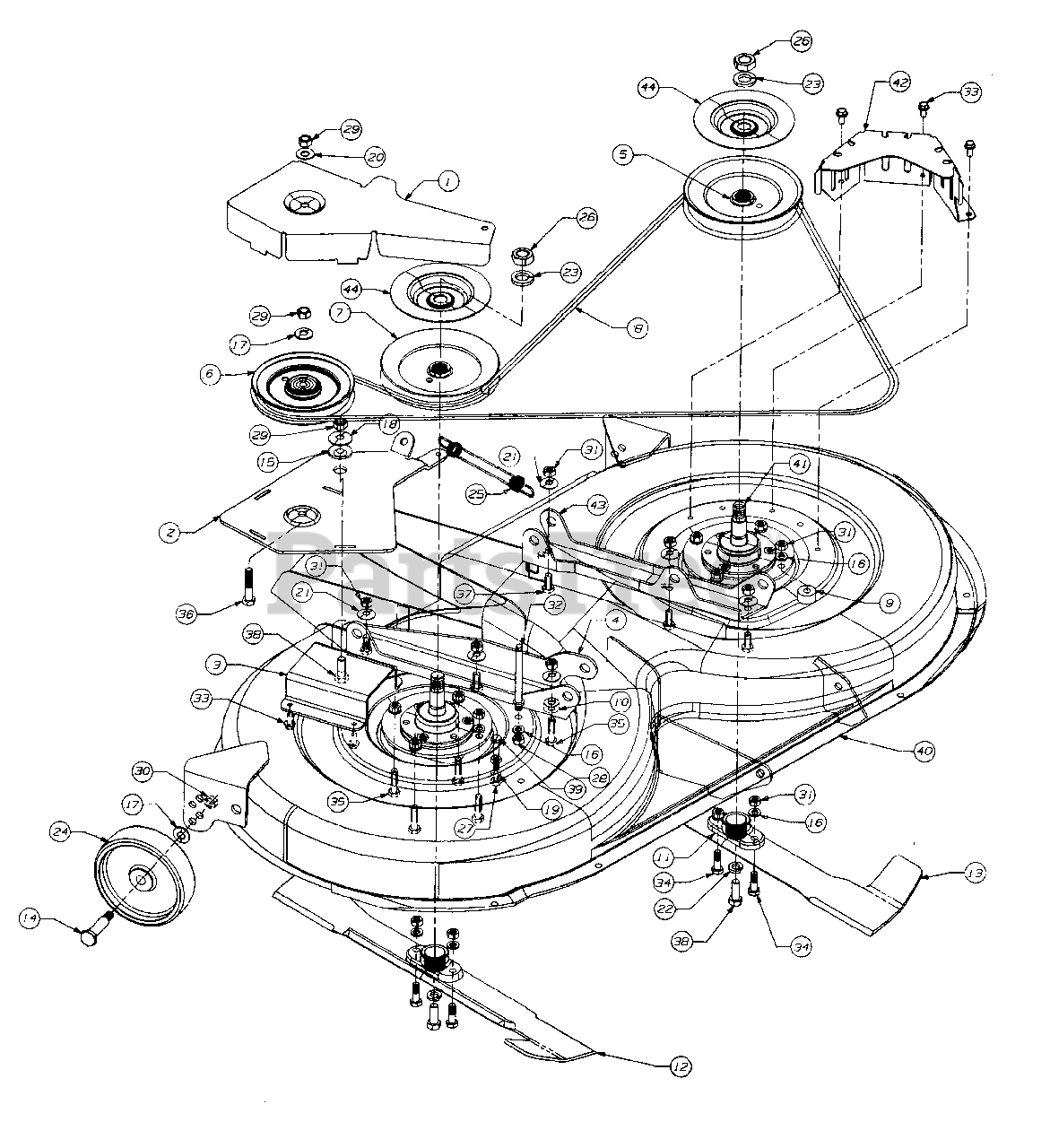

Mowing Deck Parts Diagram

  • Title

1

MTD 783-0199A

Belt Cover-R.H.

Note: New Part

Variations

783-0199A-0637

MTD 783-0199A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

783-0199A-0638

MTD 783-0199A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

MTD 783-0198

Deck Idler Arm
(Superseded to 783-0198-0637)

Variations

783-0198-0637

MTD 783-0198-0637

ARM-DECK IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 783-0196

Pivot Mounting Plate-Idler

Variations

783-0196-0637

MTD 783-0196-0637

No Longer Available PLATE-IDLE - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 783-0176

Deck Hanger Rail-R.H.

Variations

783-0176-0637

MTD 783-0176-0637

No Longer Available RAIL-HANGE - POWDER BLACK (0637)

$

$

Not available

783-0176-0665

MTD 783-0176-0665

No Longer Available RAIL-HANGE - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

MTD 756-0617

Deck Pulley-L.H.

$

$

Not available

6

MTD 756-0616

Idler Pulley

$80.99

$

In Stock, only 2 left!

0

7

MTD 756-0615

Deck Pulley-R.H.

$

$

Not available

8

MTD 754-0443

"V"-Belt
(Superseded to 954-0443A)

$92.99

$

Usually ships in 3-6 days

0

9

MTD 750-0776

Spacer .33" I.D. x .88" O.D.

$

$

Not available

10

MTD 750-0258

Spacer .315" I.D. x .375" Lg.

$12.99

$

In Stock, Qty 15

0

11

MTD 748-0300

Blade Adapter

$14.99

$

In Stock, Qty 20+

0

12

MTD 742-0608A

Blade-R.H.

Note: New Part

$

$

Not available

13

MTD 742-0607A

Blade-L.H.

Note: New Part

$

$

Not available

14

MTD 738-0373

Shld. Bolt .498" Dia. x 1.53" Lg.
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

15

MTD 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

In Stock, only 3 left!

0

16

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 15

0

20

MTD 736-0300

FL-Wash. 3/8" I.D. x 7/8" O.D.

$4.99

$

In Stock, Qty 20+

0

21

MTD 736-0242

Bell-Wash. .34" I.D. x .87" O.D.

$4.99

$

In Stock, Qty 20+

0

22

MTD 736-0217

L-Wash. 3/8" I.D. (Hd.)

$4.49

$

In Stock, only 3 left!

0

23

MTD 736-0158

L-Wash. 5/8" I.D.

$4.99

$

In Stock, Qty 5

0

24

MTD 734-0973

Deck Wheel
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

25

MTD 732-0478

Ext. Spring 6.12" Lg.
(Superseded to 932-0478)

$13.99

$

In Stock, Qty 7

0

26

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 9

0

27

MTD 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 11

0

28

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 20+

0

29

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

30

MTD 712-0181

Hex Jam Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

31

MTD 712-3057

Hex Nut 5/16-24 Thd. (Gr. 5)
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

32

MTD 711-0828

Belt Guard Stud

$

$

Currently unavailable

33

MTD 710-0599

Hex tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-0888

Hex Bolt 5/16-24 x 1" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 5

0

35

MTD 710-0672

Hex Bolt 5/16-24 x 1.25" (Gr. 5)

$4.99

$

In Stock, Qty 9

0

36

MTD 710-0539

Hex Bolt 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 6

0

37

MTD 710-0157

Hex Bolt 5/16-24 x .75" (Gr. 5)

$4.49

$

In Stock, only 3 left!

0

38

MTD 710-1039

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

In Stock, Qty 15

0

39

MTD 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$4.49

$

In Stock, Qty 14

0

40

MTD 683-0081

Deck Ass'y.

Variations

683-0081-0637

MTD 683-0081-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

683-0081-0638

MTD 683-0081-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

41

MTD 618-0140

Blade Spindle Ass'y.
(Superseded to 918-0140)

$

$

Not available

42

MTD 17664

Belt Cover-L.H.
(Superseded to 17664-0637)

Variations

17664-0480

MTD 17664-0480

Belt Guard, LH Black - BRILLIANT GREEN (0480)

$34.99

$

In Stock, only 2 left!

0

17664-0483

MTD 17664-0483

Belt Guard, LH Black - CHARCOAL GRAY (0483)

$34.99

$

In Stock, only 2 left!

0

17664-0629

MTD 17664-0629

Belt Guard, LH Black - SILVER FLAKE (0629)

$34.99

$

In Stock, only 2 left!

0

17664-0637

MTD 17664-0637

Belt Guard, LH Black - POWDER BLACK (0637)

$34.99

$

In Stock, only 2 left!

0

17664-0638

MTD 17664-0638

Belt Guard, LH Black - MTD/TROY-BILT RED (0638)

$34.99

$

In Stock, only 2 left!

0

17664-0648

MTD 17664-0648

Belt Guard, LH Black - TECH GRAY (0648)

$34.99

$

In Stock, only 2 left!

0

17664-0650

MTD 17664-0650

Belt Guard, LH Black - RED METALLIC (0650)

$34.99

$

In Stock, only 2 left!

0

17664-0662

MTD 17664-0662

Belt Guard, LH Black - OYSTER GRAY (0662)

$34.99

$

In Stock, only 2 left!

0

17664-0665

MTD 17664-0665

Belt Guard, LH Black - YARDMAN GREEN (0665)

$34.99

$

In Stock, only 2 left!

0

17664-0667

MTD 17664-0667

Belt Guard, LH Black - MIDNIGHT BLUE (0667)

$34.99

$

In Stock, only 2 left!

0

17664-0668

MTD 17664-0668

Belt Guard, LH Black - MOSS GREEN (0668)

$34.99

$

In Stock, only 2 left!

0

$34.99

$

In Stock, only 2 left!

0

43

MTD 17493A

Deck Hanger Rail-L.H.
(Superseded to 17493B-0637)

Variations

17493A-0637

MTD 17493A-0637

CHANNEL-DECK HANGE - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 09322

Brake Disc

$

$

Not available
