481-2368 (136G765N054) - Coast to Coast Lawn Tractor (1996) Seat Insulator Assembly Parts Diagram

Lawn Tractor

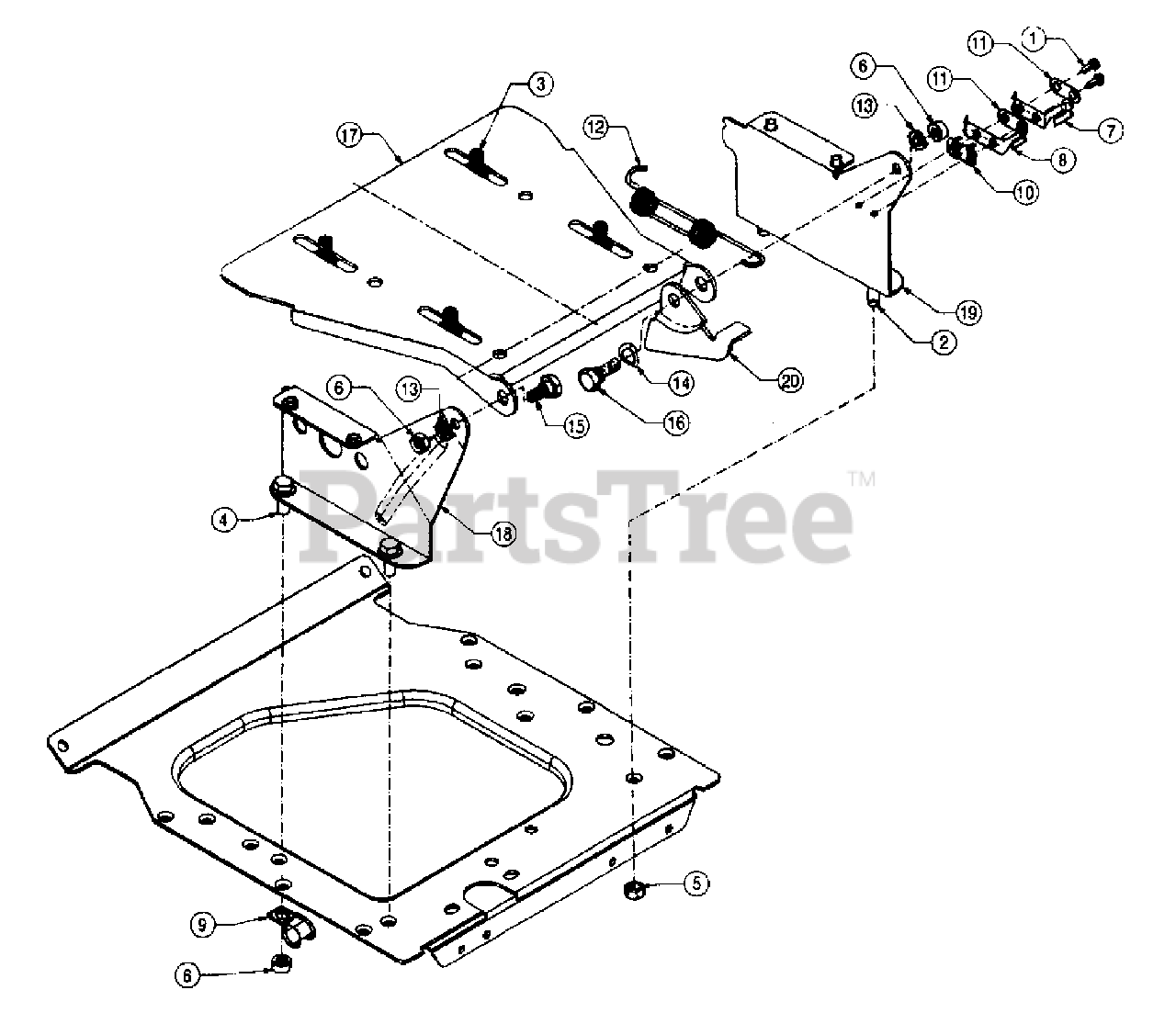

Seat Insulator Assembly Parts Diagram

  • Title

1

MTD 710-0227

Hex AB-Tap Scr. #8 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0817

Hex TT-Tap Scr. 5/16-18 x 1.25"

$6.49

$

In Stock, Qty 20+

0

3

MTD 710-0870

Hex TT-Tap Scr. 3/8-16 x .62"

$5.99

$

In Stock, only 2 left!

0

4

MTD 710-1260

Hex Flange Scr. 5/16-24 x .75"
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

5

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

6

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 8)

$4.49

$

In Stock, Qty 20+

0

7

MTD 725-1303

Seat Safety Switch
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

8

MTD 725-1439

Seat Safety Switch

$7.99

$

In Stock, Qty 8

0

9

MTD 726-0272

Clamp

$6.99

$

Usually ships in 3-6 days

0

10

MTD 726-0278

Insulator Boss Plate

$6.49

$

In Stock, Qty 10

0

11

MTD 726-0279

Insulator Plate

$3.49

$

In Stock, Qty 8

0

12

MTD 732-0581B

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$13.99

$

Usually ships in 3-6 days

0

13

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0141

Spr. Wash. 7/16" I.D.
(Superseded to 936-0141)

$6.49

$

Usually ships in 3-6 days

0

15

MTD 738-0140

Shld. Bolt .437" x .56" Lg.

$5.49

$

In Stock, Qty 17

0

16

MTD 738-0296

Shld. Bolt .437" x .27" Lg.

$3.99

$

In Stock, Qty 13

0

17

MTD 783-0039

Seat Pivot Brkt.
(Superseded to 783-0039A)

Variations

MTD 783-0039-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

18

MTD 783-0162

Seat Pivot Support-R.H.

$

$

Not available

19

MTD 783-0163

Seat Pivot Support-L.H.

$

$

Not available

20

MTD 783-0209

Seat Lift Brkt.
(Superseded to 783-0209D)

$15.99

$

Usually ships in 3-6 days

0
