4814 R (554C462M100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) Transmission Mount Parts Diagram

Walk-Behind Mower

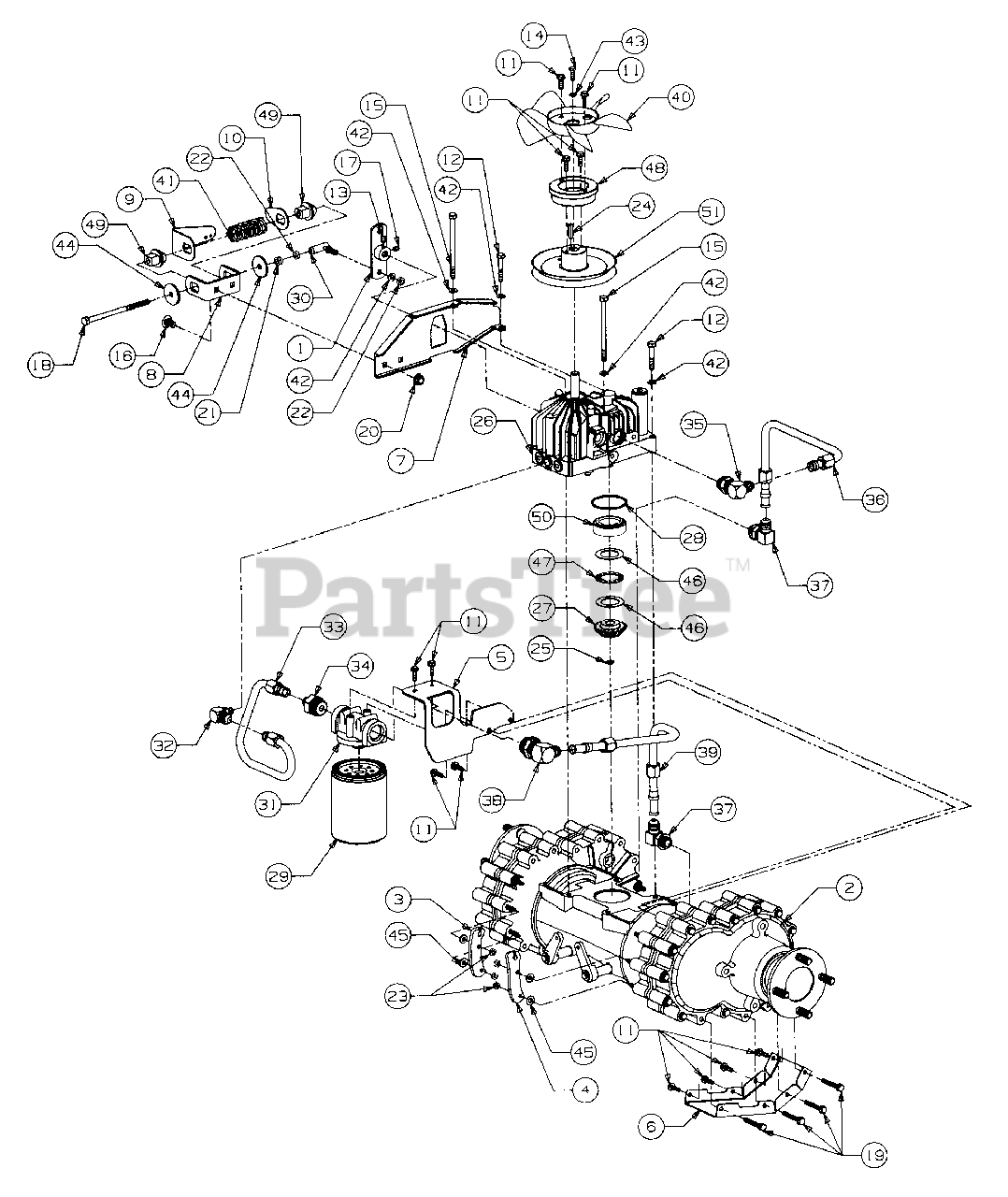

Transmission Mount Parts Diagram

  • Title

1

Cub Cadet 603-0060

Lever, Forward & Reverse

$

$

Not available

2

Cub Cadet 618-3051

Transmission Assy, Complete

$

$

Currently unavailable

3

Cub Cadet 703-2352

Plate, Left Cable Mtg

$

$

Not available

4

Cub Cadet 703-2353

Plate, Right Cable Mtg

$

$

Not available

5

Cub Cadet 703-2354

Bracket, Oil Filter Mtg

$

$

Not available

6

Cub Cadet 703-2355

Plate, Skid

$

$

Not available

7

Cub Cadet 703-2200

Plate, Neutral Mechanism Mtg

$

$

Not available

8

Cub Cadet 703-2246

Bracket, Neutral Mechanism

$

$

Not available

9

Cub Cadet 703-2245

Mount, Switch

$

$

Not available

10

Cub Cadet 703-2244

Stop, Switch

$

$

Not available

11

Cub Cadet 710-0875

Screw, Hex Wash Hd Tapp, 1/4-20 X .75 Lg

$3.99

$

In Stock, only 2 left!

0

12

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 X 1.75 Lg GR5

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3242

Set Screw w/Patch

$

$

Not available

14

Cub Cadet 710-3223

Screw, Hex Cap, M6-1.0 X 20 mm Lg GR10.9

$

$

Not available

15

Cub Cadet 710-3195

Screw, Hex Cap, 5/16-18 X 4.5 Lg GR5

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-3178

Bolt Sht Nk Carriage, 3/8-16 X .75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3280

Set Screw w/Patch, 5/16-24 X .38 Lg

$

$

Not available

18

Cub Cadet 710-3255

Screw, Hex Cap, 5/16-24 X 5.37 Lg GR5

$

$

Not available

19

Cub Cadet 710-1206

Screw, Hex Wash Hd Tapp, 1/4-20 X 2.31 Lg

$6.99

$

In Stock, Qty 9

0

20

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16 2
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0273

Nut, Hex, 5/16-24
(Superseded to 912-0273)

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-3057

Nut, Hex Jam, 5/16-24 GR5
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

23

Cub Cadet 712-3055

Nut, Hex Top Lock, 1/4-20
(Superseded to 912-0291)

$

$

Not available

24

Cub Cadet 714-3027

Key, Square, 5 mm X 5 mm X 25 mm Lg

$

$

Not available

25

Cub Cadet 716-0865

Ring, Snap, .500 Dia Shaft

$4.49

$

In Stock, only 3 left!

0

26

Cub Cadet 717-3386

Pump, Hydrostatic
(Superseded to 917-3386)

$

$

Not available

27

Cub Cadet 717-3367

Gear, Input Pinion -20T

$

$

Not available

28

Cub Cadet 721-3036

O-Ring, 2.237 ID X.103 Thk

$

$

Not available

29

Cub Cadet 723-3071

Filter, Oil

$68.99

$

In Stock, only 1 left!

0

30

Cub Cadet 723-3011

Ball Joint
(Superseded to 923-3011)

$34.99

$

In Stock, only 1 left!

0

31

Cub Cadet 727-3083

Head, Filter

$

$

Not available

32

Cub Cadet 727-3082

Elbow, 90 Deg w/O-Ring

$

$

Not available

Cub Cadet 721-3002

O-Ring, 1/4 OD Tube

$

$

Not available

33

Cub Cadet 727-3077

Tube, Hydro Inlet

$

$

Not available

34

Cub Cadet 727-3081

Connector, Straight w/O-Ring

$

$

Not available

Cub Cadet 721-3046

O-Ring, 3/4 OD Tube

$

$

Not available

35

Cub Cadet 727-3079

Elbow, 90 Deg w/O-Ring

$

$

Not available

Cub Cadet 721-3005

O-Ring, 5/8 OD Tube
(Superseded to 921-3005)

$

$

Not available

36

Cub Cadet 727-3076

Tube, Return

$

$

Not available

37

Cub Cadet 727-3078

Elbow, 90 Deg w/O-Ring

$

$

Not available

Cub Cadet 721-3045

O-Ring, 1/2 OD Tube

$

$

Not available

38

Cub Cadet 727-3080

Elbow, 90 Deg w/O-Ring

$

$

Not available

Cub Cadet 721-3046

O-Ring, 3/4 OD Tube

$

$

Not available

39

Cub Cadet 727-3075

Tube, Filter Inlet

$

$

Not available

40

Cub Cadet 731-3133

Fan, Hydro 8"
(Superseded to 931-3133)

$34.99

$

In Stock, only 3 left!

0

41

Cub Cadet 732-0633

Spring, Compression, 1.20 OD X 2.70 Lg
(Superseded to 932-0633)

$

$

Not available

42

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

44

Cub Cadet 736-3070

Washer, Flat, .206 X .448 X .105 Thk

$

$

Not available

45

Cub Cadet 736-0463

Washer, Flat, .25 X .62 X .0515 Thk

$4.49

$

In Stock, only 2 left!

0

46

Cub Cadet 736-3111

Washer, Thrust, 1.25X 1.937 X .031 Thk

$

$

Not available

47

Cub Cadet 741-3045

Bearing, Thrust, 1.25 X 1.937 .0781 Thk

$

$

Not available

48

Cub Cadet 750-3100

Hub, Fan Mtg

$

$

Not available

49

Cub Cadet 750-3098

Guide, Neutral Stop

$

$

Not available

50

Cub Cadet 750-3074

Spacer, Input Pinion

$

$

Not available

51

Cub Cadet 756-3061

Pulley, Transmission Drive

$

$

Not available
