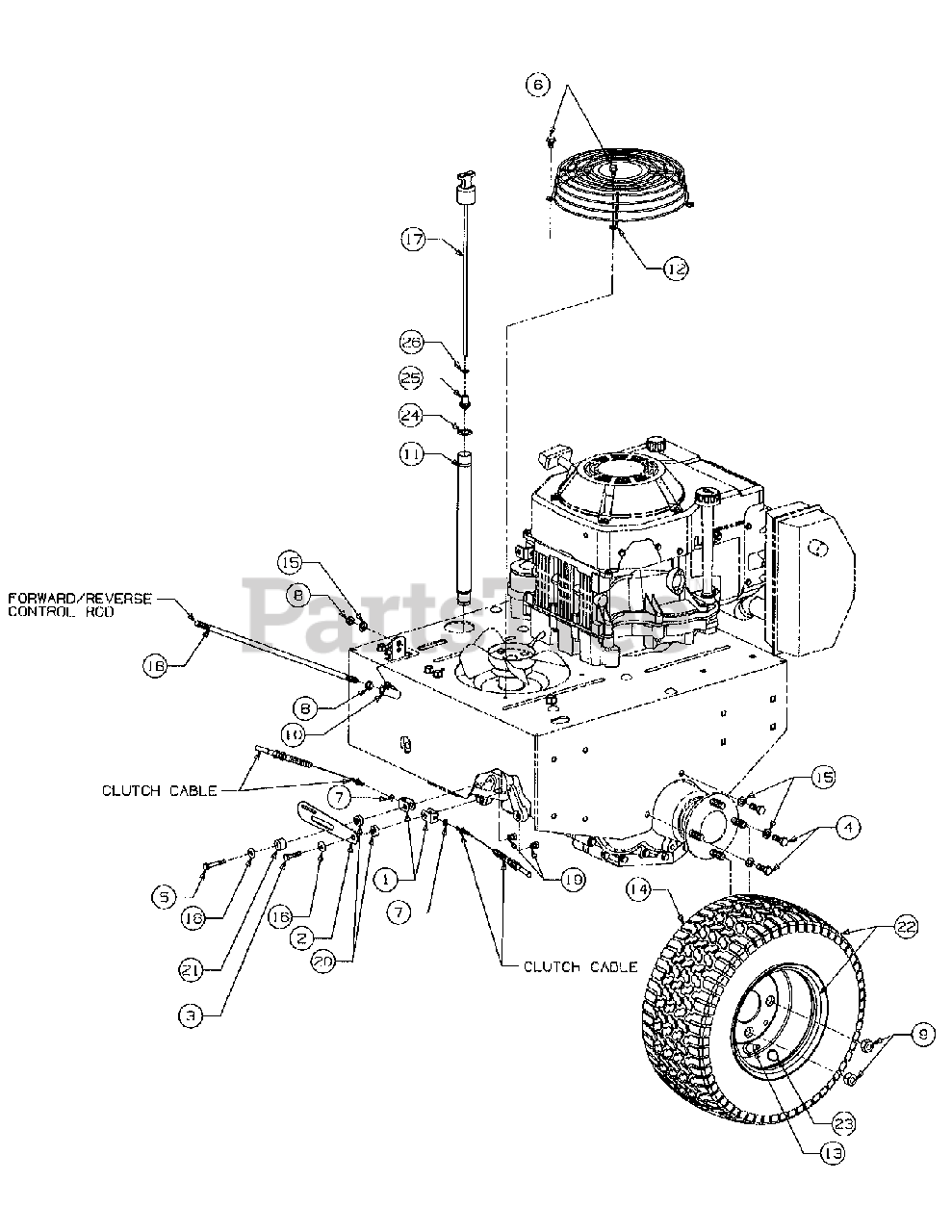

4814 R (555C463M100) - Cub Cadet Walk-Behind Mower (SN: 495637 & Above) Lower Controls Parts Diagram

Walk-Behind Mower

Lower Controls Parts Diagram

  • Title

1

Cub Cadet 603-0169

U-Clevis, Clutch Cable

$

$

Not available

2

Cub Cadet 703-2369

Plate, Parking Brake Switch Mount

$

$

Not available

3

Cub Cadet 710-0428

Screw, Hex Cap 1/4-28 x 1.25 Gr 5

$2.49

$

In Stock, only 1 left!

0

4

Cub Cadet 710-0514

Screw, Hex Cap 3/8-16 x 1.0 Gr 5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0559

Screw, Hex Cap 1/4-28 x 1.75 Gr 5

$

$

Not available

6

Cub Cadet 710-0607

Screw, Hex Wash Hd Tapp, 5/16-18 x .50

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0349

Nut, Hex Jam, #10-32

$4.49

$

In Stock, Qty 5

0

8

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 Gr 5
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3076

Nut, Lug 1/2-20

$

$

Not available

10

Cub Cadet 723-3018

Ball Joint, 3/8-24
(Superseded to 923-3018)

$15.99

$

In Stock, Qty 20+

0

11

Cub Cadet 727-3084

Tube, Oil Fill

$

$

Not available

12

Cub Cadet 732-3083

Guard, Fan Cover

$

$

Not available

13

Cub Cadet 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 734-3108

Tire, Turf Chief, 16 x 6.50-8

$

$

Not available

15

Cub Cadet 736-0169

Washer, Lock 3/8

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062 Thk

$3.99

$

In Stock, Qty 10

0

17

Cub Cadet 737-3052

Dipstick

$

$

Not available

18

Cub Cadet 747-3169

Rod, F/R Control

$

$

Not available

19

Cub Cadet 750-3111

Nut, Clevis Spacer, 1/4-28

$

$

Not available

20

Cub Cadet 750-3112

Spacer, Clevis

$

$

Not available

21

Cub Cadet 750-3113

Spacer, Switch Engagement

$

$

Not available

22

Cub Cadet 759-3727

Wheel & Tire Assembly Complete 16 x 6.50/8

Note: (Incl, Ref No.23)

$

$

Not available

23

Cub Cadet 777-8680

Label, Inflation

$

$

Currently unavailable

24

Cub Cadet KH-41-153-01

O-Ring

$

$

Not available

25

Cub Cadet KH-52-032-14

Seal, Rubber
(Superseded to KH-25-032-13-S)

$3.49

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-X-25-44

Washer, Plain 5/16

$

$

Not available
