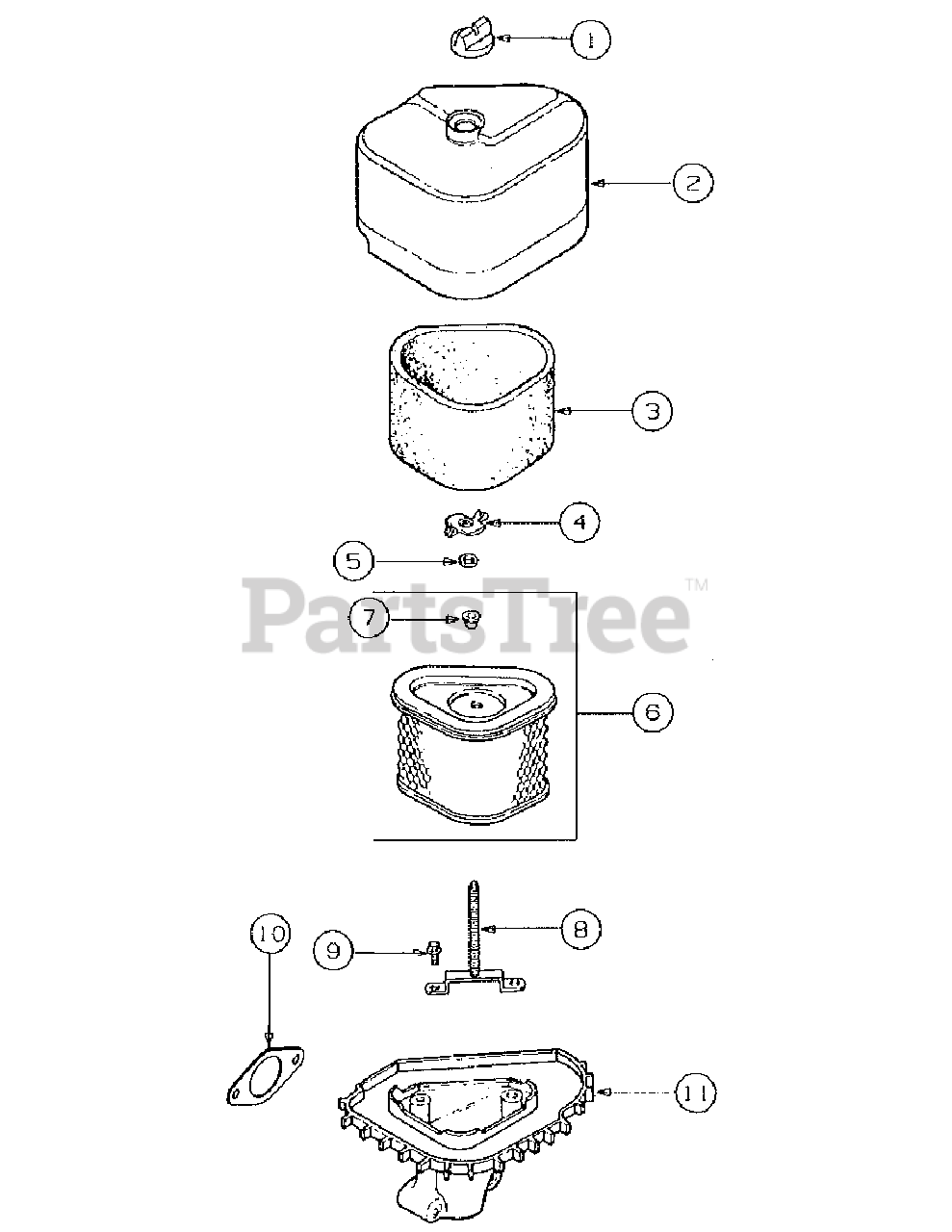

4814 R (556C463M100) - Cub Cadet Walk-Behind Mower (SN: 495637 & Above) Air Intake & Filtration Parts Diagram

Walk-Behind Mower

Air Intake & Filtration Parts Diagram

  • Title

1

Cub Cadet KH-15-341-01

Knob, Air Cleaner Cover
(Superseded to KH-25-341-03)

$

$

Not available

2

Cub Cadet KH-12-096-016

Cover, Air Cleaner

$

$

Currently unavailable

3

Cub Cadet KH-12-083-12

Precleaner, Element
(Superseded to KH-12-883-10-S1)

$23.99

$

In Stock, only 4 left!

0

4

Cub Cadet KH-12-100-01

Nut,Wing

$3.99

$

In Stock, Qty 12

0

5

Cub Cadet KH-X-25-63

Washer, Plain 1/4

$

$

Not available

6

Cub Cadet KH-12-083-10

Element, Air Cleaner
(Superseded to KH-12-883-10-S1)

$23.99

$

In Stock, only 4 left!

0

7

Cub Cadet KH-12-313-04

Grommet

$

$

Not available

8

Cub Cadet KH-12-072-05

Stud, Mtg Plate

$

$

Not available

9

Cub Cadet KH-12-086-01

Screw, Mtg Plate Stud

$

$

Not available

10

Cub Cadet KH-12-041-02

Gasket, Air Cleaner

$2.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-12-094-07

Base, Air Cleaner

$

$

Not available

Cub Cadet KH-12-113-04

Decal,Air Cleaner

Note: not shown

$

$

Not available
