4814 R (556C463M100) - Cub Cadet Walk-Behind Mower (SN: 495637 & Above) Starting System Parts Diagram

Walk-Behind Mower

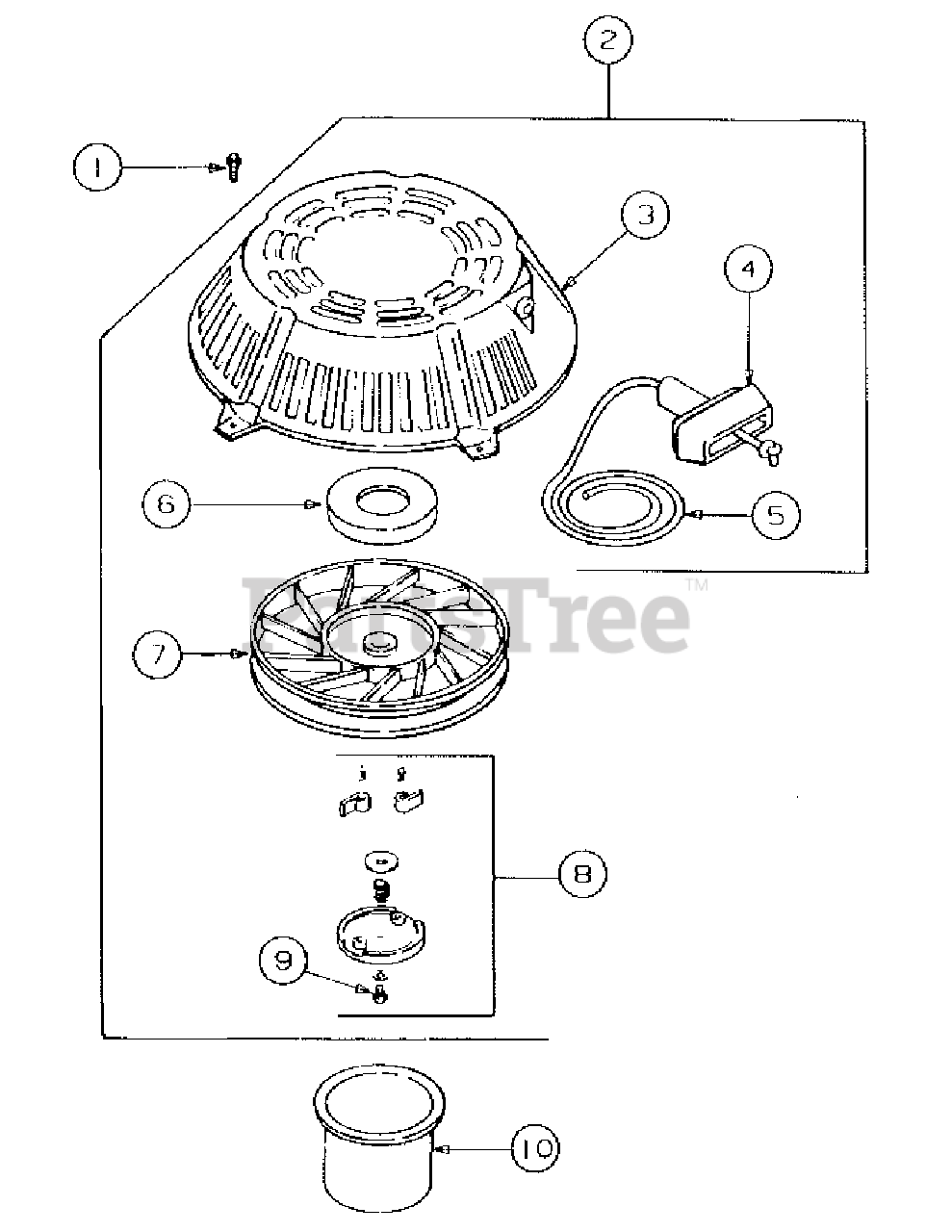

Starting System Parts Diagram

  • Title

1

Cub Cadet KH-M-545010

Screw, M5 x 0.8 x 10
(Superseded to KH-M-0545010)

$4.49

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-12-165-01

Starter, Retractable Ass'y
(Superseded to KH-24-165-02-S)

Note: (Incl. Ref No.3-9)

$119.99

$

In Stock, Qty 10

0

3

Cub Cadet KH-12-081-01

Housing, Starter

$

$

Not available

4

Cub Cadet KH-234452

Handle, Recoil Start

$

$

Not available

5

Cub Cadet KH-12-160-01

Rope, Starter

$

$

Not available

6

Cub Cadet KH-12-089-06

Spring & Keeper

$

$

Not available

7

Cub Cadet KH-12-093-01

Pulley

$

$

Not available

8

Cub Cadet KH-12-757-06

Kit, Pawl(dog)

Note: (Incl.Ref No. 9)

$

$

Not available

9

Cub Cadet KH-41-086-09

Screw,Pozidriv

$

$

Not available

10

Cub Cadet KH-15-109-01

Cup, Drive

$

$

Not available

Cub Cadet KH-12-113-07

Decal ,Starting

Note: not shown

$

$

Not available
