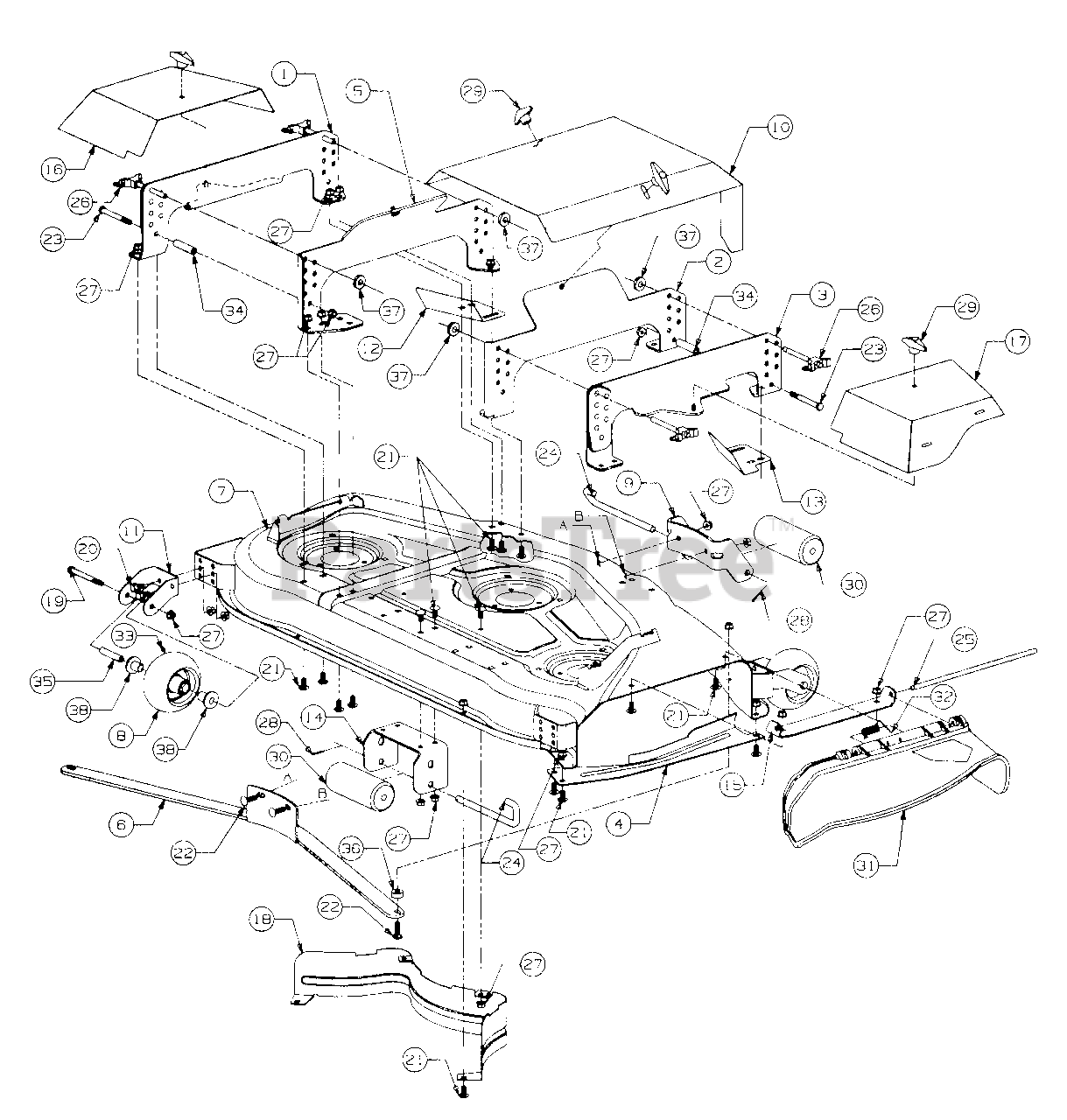

4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer 48" Floating Deck Parts Diagram

Walk-Behind Mower Pro Performer

48" Floating Deck Parts Diagram

  • Title

1

Cub Cadet 603-0137

Hanger, LH Outer

Variations

Cub Cadet 603-0137-0498

OUTER HANGER (LH) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 603-0138

Hanger, RH Inner

Variations

Cub Cadet 603-0138-0498

INNER HANGER (RH) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

3

Cub Cadet 603-0140

Hanger, RH Outer

$

$

Not available

4

Cub Cadet 603-0150

Guard, Finger
(Superseded to 703-3511B-0637)

Variations

Cub Cadet 603-0150-0498

Finger Guard, Black - OLD CUB YELLOW (0498)

$74.99

$

In Stock, Qty 20+

0

Cub Cadet 603-0150-0648

Finger Guard, Black - TECH GRAY (0648)

$74.99

$

In Stock, Qty 20+

0

$74.99

$

In Stock, Qty 20+

0

5

Cub Cadet 603-0141

Hanger, LH Inner

$

$

Not available

6

Cub Cadet 603-0154

Bar, 48" Front

Variations

Cub Cadet 603-0154-0498

Bar-48" Fr - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0154-0637

BAR-48 FRO - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-0154-0648

Bar-48" Fr - TECH GRAY (0648)

$

$

Not available

$

$

7

Cub Cadet 759-3720

Housing Assy w/Graphics, 48" Mower

$

$

Currently unavailable

Cub Cadet 777-1584

Graphic, Danger Cut Finger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 777-9361

Graphic, Danger

$

$

Currently unavailable

8

Cub Cadet 634-3159

Wheel Assy, 5" Deck

Note: [Includes Ref. No. 33 & 38 (Qty. 2)]

$36.99

$

In Stock, Qty 20+

0

9

Cub Cadet 703-2091A

Bracket, Front Roller

Variations

Cub Cadet 703-2091A-0498

Front Roller Bracket - OLD CUB YELLOW (0498)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2091A-0637

Front Roller Bracket - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2091A-0648

Front Roller Bracket - TECH GRAY (0648)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-2277

Cover, Center Belt

Variations

Cub Cadet 703-2277-0498

COVER-CENTER BELT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 777-4819

Graphic 4815F, Belt Cover Left

$

$

Not available

Cub Cadet 777-4820

Graphic, Belt Cover Front

$

$

Not available

Cub Cadet 777-4818

Graphic 4815F, Belt Cover Right

$

$

Not available

11

Cub Cadet 703-2410

Bracket, Deck Wheel

Variations

Cub Cadet 703-2410-0498

Deck Wheel Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2410-0637

BRACKET-DECK WHEEL PWDR BLK - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2410-0648

BRACKET-DECK - TECH GRAY (0648)

$

$

Not available

$

$

12

Cub Cadet 703-2433

Plate, LH Filler

$

$

Not available

13

Cub Cadet 703-2434

Plate, RH Filler

$

$

Not available

14

Cub Cadet 703-2092A

Bracket, Rear Roller
(Superseded to 703-2092A-0637)

Variations

Cub Cadet 703-2092A-0637

BRACKET-REAR ROLLER - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 703-2392

Bracket, Chute Mtg
(Superseded to 631-04070C)

Variations

Cub Cadet 703-2392-0498

Deflector Chute Assembly - OLD CUB YELLOW (0498)

$130.99

$

In Stock, Qty 8

0

Cub Cadet 703-2392-0637

Deflector Chute Assembly - POWDER BLACK (0637)

$130.99

$

In Stock, Qty 8

0

Cub Cadet 703-2392-0648

Deflector Chute Assembly - TECH GRAY (0648)

$130.99

$

In Stock, Qty 8

0

$130.99

$

In Stock, Qty 8

0

16

Cub Cadet 703-2419

Cover, LH Belt

Variations

Cub Cadet 703-2419-0498

COVER (LH) BELT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

17

Cub Cadet 703-2420

Cover, RH Belt

Variations

Cub Cadet 703-2420-0498

COVER (RH) BELT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

18

Cub Cadet 703-2161

Baffle, Rear Inner
(Superseded to 703-2161-0637)

Variations

Cub Cadet 703-2161-0498

Inner Rear Baffle - OLD CUB YELLOW (0498)

$117.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2161-0637

Inner Rear Baffle - POWDER BLACK (0637)

$117.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2161-0648

Inner Rear Baffle - TECH GRAY (0648)

$117.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2161-0716

Inner Rear Baffle - CUB YELLOW-99 (0716)

$117.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0944

Screw, Hex Cap, 3/8-16 X 4.25 Lg

$11.99

$

In Stock, Qty 11

0

20

Cub Cadet 710-3001

Screw, Hex Wash Sf Tapp 3/8-16 X .88 Lg GR 5

$7.49

$

In Stock, Qty 5

0

21

Cub Cadet 710-3178

Bolt, Sht Nk Carriage 3/8-16 X .75 Lg GR 5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3034

Bolt, Carriage 3/8-16 X 1.25 Lg GR 5

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet 710-0644

Screw, Hex Cap 3/8-16 X 3.25 Lg GR 5
(Superseded to 710-3130)

$10.99

$

In Stock, Qty 20+

0

24

Cub Cadet 711-3314

Pin, Roller, 1/2 Dia X 7.31 Lg
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

25

Cub Cadet 711-3318

Pin, Hinge, .375 Dia X 12.55 Lg

$

$

Not available

26

Cub Cadet 711-3367

Pin, Quick Release, 3/8 Dia
(Superseded to 911-3367)

$

$

Not available

27

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

28

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.0 Lg

$4.49

$

In Stock, only 1 left!

0

29

Cub Cadet 720-0241

Knob, Wing Nut
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

30

Cub Cadet 731-3005

Roller

$30.99

$

In Stock, Qty 20+

0

31

Cub Cadet 731-3131

Deflector, Chute
(Superseded to 931-3131A)

$114.99

$

In Stock, only 3 left!

0

32

Cub Cadet 732-3070

Spring, Torsion
(Superseded to 732-3070A)

$12.99

$

In Stock, only 2 left!

0

33

Cub Cadet 737-0280

Fitting, Lube, 3/16 Drive

$8.49

$

In Stock, only 4 left!

0

34

Cub Cadet 750-3085

Spacer, Deck Hanger
(Superseded to 01000395)

$

$

Not available

35

Cub Cadet 750-3193

Spacer, Deck Wheel

$19.99

$

In Stock, Qty 20+

0

36

Cub Cadet 750-3119

Spacer, Front Bar

$12.99

$

In Stock, only 3 left!

0

37

Cub Cadet 736-0262

Washer, Flat, .385 X .870 X .092 Thk

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 741-0487A

Bearing, Flange
(Superseded to 741-0487C)

$7.99

$

In Stock, Qty 20+

0
