4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer 48" Floating Deck Spindle Assembly Parts Diagram

Walk-Behind Mower Pro Performer

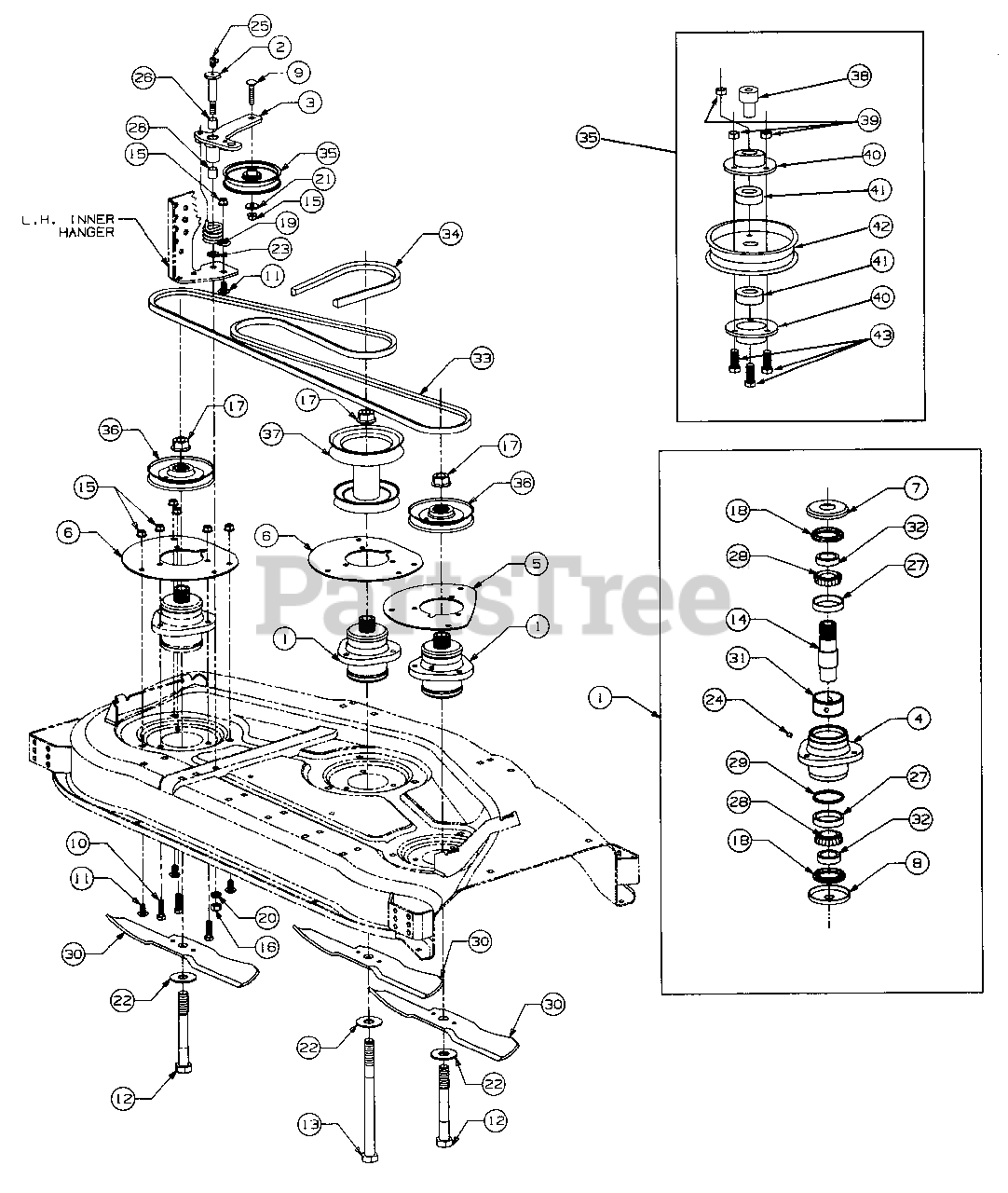

48" Floating Deck Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0043A

Spindle Assy, Complete

$

$

Not available

2

Cub Cadet 738-3102

Bolt, Shoulder

$19.99

$

In Stock, Qty 12

0

3

Cub Cadet 603-0105

Arm Assy, Idler

Note: [Includes Ref No. 27 (Qty 2)]

Variations

Cub Cadet 603-0105-0498

ARM ASSEMBLY, IDLER - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 619-3022

Housing, Spindle

$

$

Not available

5

Cub Cadet 703-2178

Plate, RH Cover
(Superseded to 703-2178-0637)

Variations

Cub Cadet 703-2178-0637

COVER PLATE (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 703-2179

Plate, Cover

$

$

Not available

7

Cub Cadet 703-2184

Cup, Top Spindle

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2185

Cup, Bottom Spindle
(Superseded to 703-2185-0637)

Variations

Cub Cadet 703-2185-0637

Spindle Cup, Bottom - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0560

Bolt, Carriage, 3/8-16 X 1.75 Lg

$6.49

$

In Stock, Qty 17

0

10

Cub Cadet 710-3005

Screw, Hex Cap 3/8-16 X 1.25 Lg GR 5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3178

Bolt, Sht Nk Carriage 3/8-16 X .75 Lg GR 5

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3252

Bolt, Hex Hd Blade, 3/4-16 X 6.0 Lg

$

$

Not available

13

Cub Cadet 710-3253

Bolt, Hex Hd Blade, 3/4-16 X 9.5 Lg

$

$

Not available

14

Cub Cadet 711-3342

Shaft, Blade Spindle

$

$

Not available

15

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR 5

$6.49

$

In Stock, only 2 left!

0

17

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

$9.49

$

In Stock, Qty 20+

0

18

Cub Cadet 721-0385

Seal, Oil
(Superseded to 921-0385)

$25.99

$

In Stock, only 1 left!

0

19

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$22.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0206

Washer, Spec. .378 X 1.0 X .125 Thk
(Superseded to 936-0206)

$4.49

$

In Stock, only 1 left!

0

22

Cub Cadet 736-3014

Washer, Flat, .781 X 2.0 X .105 Thk

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-3015

Washer, Flat, .469 X .875 X .105 Thk
(Superseded to 936-3015)

$3.99

$

In Stock, only 3 left!

0

24

Cub Cadet 737-0280

Fitting, Lube

$7.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 737-3004

Fitting, Lube, 90 degree 1/4-28 Tapper Thd

$10.99

$

In Stock, Qty 5

0

26

Cub Cadet 741-3063

Bearing, Sleeve

$16.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 741-3050

Cup, Bearing
(Superseded to 941-3050)

$21.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 741-3051

Cone, Bearing
(Superseded to 941-3051)

$45.99

$

In Stock, only 4 left!

0

29

Cub Cadet 741-3052

Spacer, Bearing
(Superseded to 941-3052)

$

$

Not available

30

Cub Cadet 742-3019

Blade, Mower, 16.5 Lg
(Superseded to 759-3825)

$35.99

$

In Stock, only 3 left!

0

Cub Cadet 759-3677

Blade, Mower, Hard Coated, 16.5 Lg
(Superseded to 759-3842)

$59.99

$

In Stock, only 3 left!

0

Cub Cadet 742-3025

Blade, Mower, Hi-Lift, 16.5 Lg
(Superseded to 759-3826)

$46.99

$

In Stock, Qty 18

0

31

Cub Cadet 750-3073

Spacer, Bearing Cup

$

$

Not available

32

Cub Cadet 750-3187

Ring, Seal
(Superseded to 950-3187)

$45.99

$

In Stock, only 2 left!

0

33

Cub Cadet 754-3053

Belt, Spindle, A-Sect X 107.3 Lg
(Superseded to 954-3053)

$54.99

$

In Stock, Qty 20+

0

34

Cub Cadet 754-3066

Belt, PTO, B-Sect X 62.04 Lg
(Superseded to 954-3066)

$61.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 603-0394

Pulley Assy, Flat Idler

$

$

Not available

36

Cub Cadet 756-3058

V-Pulley, 4.65 OD

$72.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 756-3059

Pulley, Deck, 5.07 OD & 5.75 OD
(Superseded to 956-3059)

$

$

Not available

38

Cub Cadet 748-3064

Spacer, Shoulder

$

$

Not available

39

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.49

$

In Stock, Qty 20+

0

40

Cub Cadet 703-2907

Cup, Bearing

$

$

Not available

41

Cub Cadet 741-0600

Bearing, Ball
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

42

Cub Cadet 756-3088

Pulley, Flat Idler

$

$

Not available

43

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0
