4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer Blower Housing and Baffles Parts Diagram

Walk-Behind Mower Pro Performer

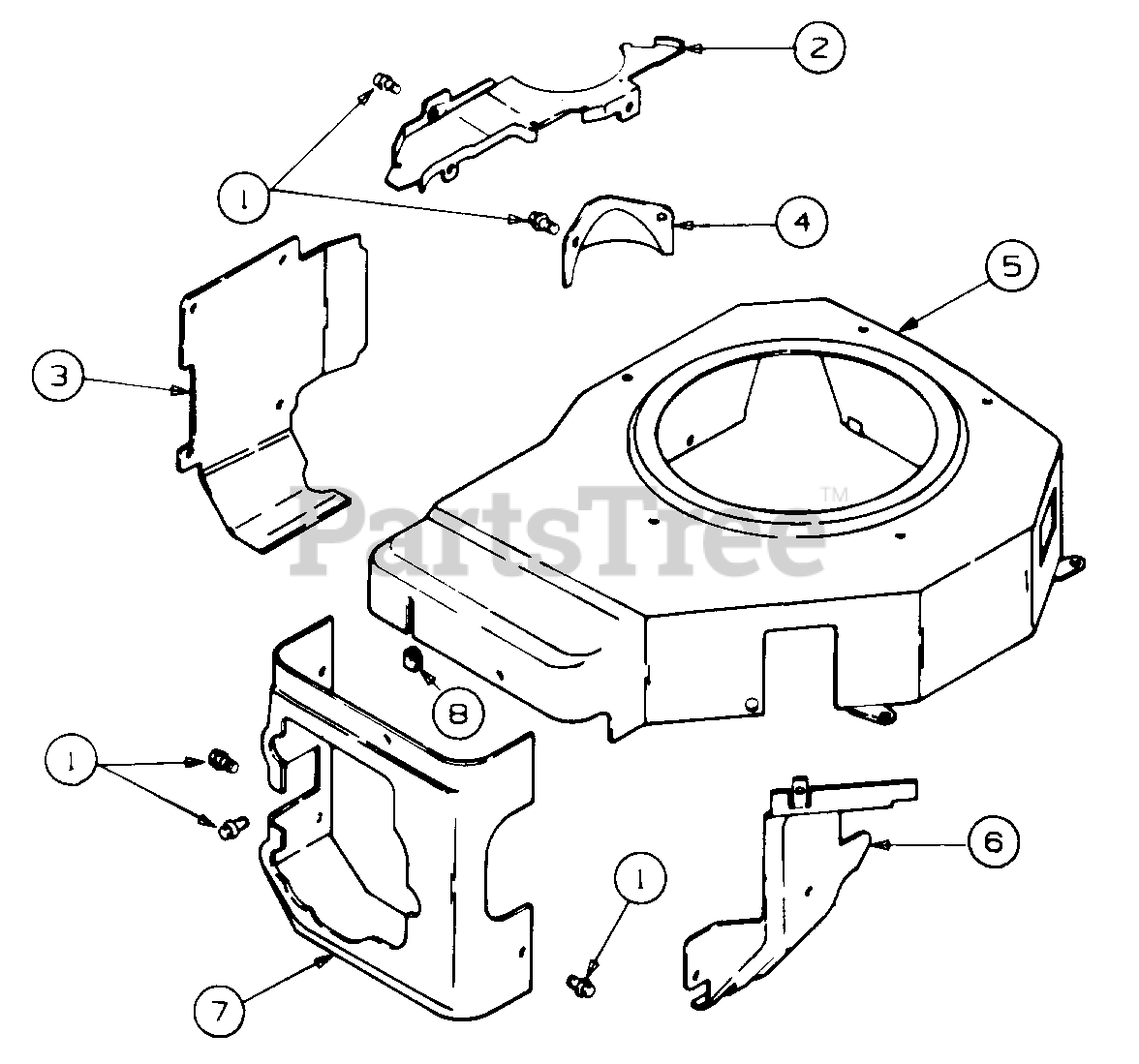

Blower Housing and Baffles Parts Diagram

  • Title

1

Cub Cadet KH-M-545010

Screw, Mounting, M5 X 0.8 X 10
(Superseded to KH-M-0545010)

$

$

Not available

2

Cub Cadet KH-12-146-07

Plate, Blower Housing

$

$

Not available

3

Cub Cadet KH-12-063-01

Baffle, Cylinder Barrel
(Superseded to KH-12-063-19-S)

$

$

Not available

4

Cub Cadet KH-12-096-23

Cover, Starter

$

$

Not available

5

Cub Cadet KH-12-027-11

Housing, Blower

$

$

Not available

6

Cub Cadet KH-12-063-05

Baffle, Carburetor

$

$

Not available

7

Cub Cadet KH-12-063-03

Baffle, Cylinder Head
(Superseded to KH-12-063-08)

$

$

Not available

8

Cub Cadet KH-12-313-03

Grommet, Blower Housing

$

$

Not available

Cub Cadet KH-12-113-67

Decal, Horsepower
(Superseded to KH-12-113-112-S)

$

$

Not available
