4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer Engine Controls Parts Diagram

Walk-Behind Mower Pro Performer

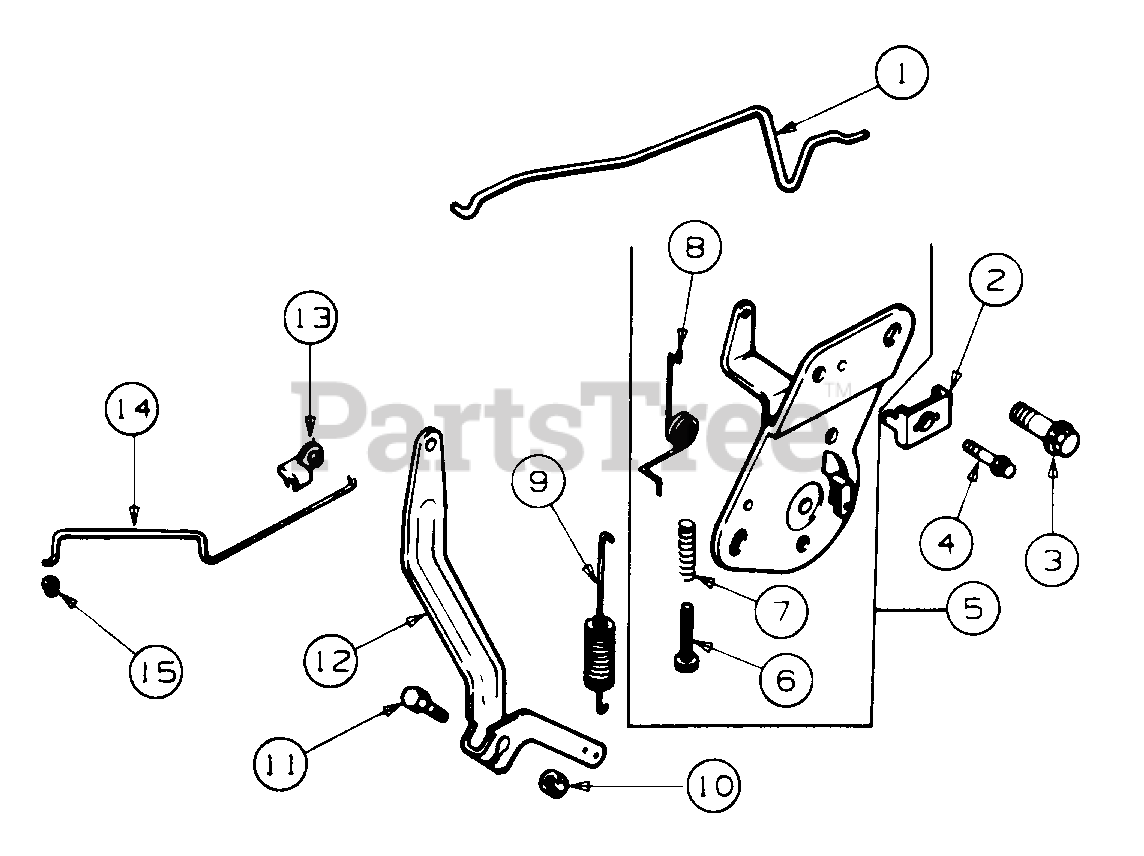

Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-12-079-07

Linkage, Choke

$

$

Not available

2

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-SM-545016

Screw, Cable Clamp
(Superseded to KH-25-086-426-S)

$3.49

$

In Stock, only 3 left!

0

4

Cub Cadet KH-SM-0645016

Screw, Hex Hd, M6 X 1.0 X 16
(Superseded to KH-M-645016-S)

$4.99

$

In Stock, Qty 9

0

5

Cub Cadet KH-12-536-01

Control, Speed Assy

Note: (Includes Ref No. 6 thru 8)

$

$

Not available

6

Cub Cadet KH-SM-0443025

Screw

$

$

Not available

7

Cub Cadet KH-12-089-11

Spring, Speed Control
(Superseded to KH-12-089-11-S)

$2.49

$

In Stock, only 3 left!

0

8

Cub Cadet KH-12-089-23

Spring, Choke Return

$

$

Not available

9

Cub Cadet KH-12-089-19

Spring, Governor

$

$

Not available

10

Cub Cadet KH-SM-0641060

Nut, Governor Arm, M6 X 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 8

0

11

Cub Cadet KH-SM-0642025

Screw, Governor Arm, M6 X 1.0 X 25
(Superseded to KH-M-642025-S)

$2.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-12-090-05

Lever, Governor

$

$

Not available

13

Cub Cadet KH-25-158-11

Bushing

$

$

Not available

14

Cub Cadet KH-12-079-01

Linkage, Throttle

$

$

Not available

15

Cub Cadet KH-25-158-08

Bushing

$5.99

$

Usually ships in 2-5 days

0
